Exterior Rear View Mirror

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Exterior Rear View Mirror

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011865 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYG500220 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR129712 LAMP - EXTERIOR MIRROR Enquire To Order
LR129714 LAMP - EXTERIOR MIRROR Enquire To Order
Photo Part No Description Price (each) Stock
LR132540 MIRROR - REAR VIEW - OUTER Enquire To Order
LR132541 MIRROR - REAR VIEW - OUTER Enquire To Order
LR132552 MIRROR - REAR VIEW - OUTER Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR129719 LAMP - EXTERIOR MIRROR Enquire To Order
LR129720 LAMP - EXTERIOR MIRROR Enquire To Order
Photo Part No Description Price (each) Stock
CRP500031 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
CRP500041 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
LR015051 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR129662 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
LR132608 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
LR129685 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
...and 23 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR132579 HOUSING - WADE ASSIST SENSOR Enquire To Order
LR140341 HOUSING - WADE ASSIST SENSOR Enquire To Order
LR129732 HOUSING - WADE SENSOR Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR132569 COVER - MIRROR HOUSING Enquire To Order
LR132572 COVER - MIRROR HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR137465 COVER - MIRROR HOUSING Enquire To Order
View All

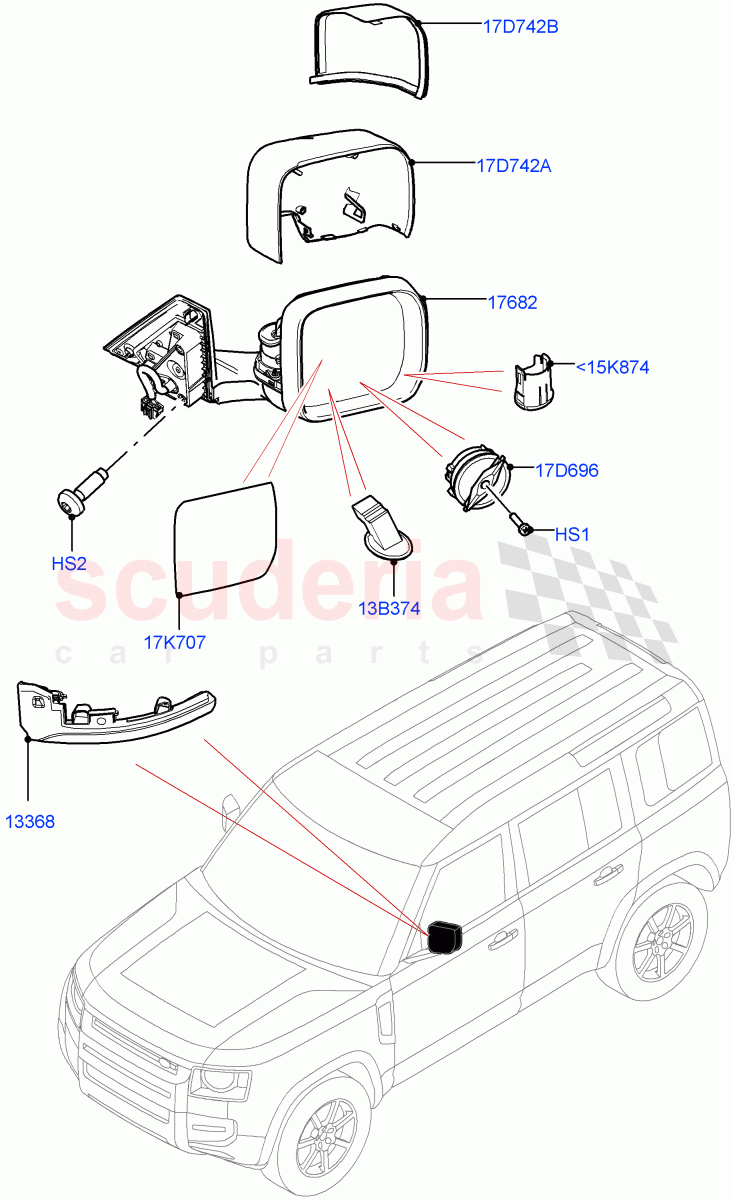

Exterior Rear View Mirror of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<15K874 LR132579
HOUSING - WADE ASSIST SENSOR
Water Wading Aid / LH 		- 1 Enquire
<15K874 LR140341
HOUSING - WADE ASSIST SENSOR
Less Water Wading Equipment / RH / From: L2000001 		- 1 Enquire
<15K874 LR129732
HOUSING - WADE SENSOR
Water Wading Aid / RH 		- 1 Enquire
<15K874 LR140342
HOUSING - WADE ASSIST SENSOR
Less Water Wading Equipment / LH / From: MA000001 		- 1 Enquire
HS1 LR011865
SCREW
M3 X 25MM 		- 2 Enquire
HS2 RYG500220
SCREW
Hexagonal Head, M6 X 20MM 		- 6 Enquire
13B374 LR129719
LAMP - EXTERIOR MIRROR
RH 		- 1 Enquire
13B374 LR129720
LAMP - EXTERIOR MIRROR
LH 		- 1 Enquire
17D696 CRP500031
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Power Heated Exterior Mirrors / RH, 3 Pin Connector, Less Memory 		- 1 Enquire
17D696 CRP500041
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp / RH, 8 Pin Connector, With Memory 		- 1 Enquire
17D696 LR015051
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp / LH, 8 Pin Connector, With Memory 		- 1 Enquire
17D696 LR015050
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Power Heated Exterior Mirrors / LH, 3 Pin Connector, Less Memory 		- 1 Enquire
17D742A LR132569
COVER - MIRROR HOUSING
RH, Primed 		- 1 Enquire
17D742A LR132572
COVER - MIRROR HOUSING
LH, Primed 		- 1 Enquire
17D742B LR137465
COVER - MIRROR HOUSING
Body Protection-Chequered / RH/LH 		- 2 Enquire
17K707 LR129662
GLASS - REAR VIEW OUTER MIRROR
1 Flat/1 Convex Glass - Canada, Dual Power Heated Exterior Mirrors, Less Blind Spot Information System / RH 		- 1 Enquire
17K707 LR132608
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Blind Spot Information System / RH 		- 1 Enquire
17K707 LR129685
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Blind Spot Information System / RH 		- 1 Enquire
17K707 LR129688
GLASS - REAR VIEW OUTER MIRROR
1 Flat/1 Convex Glass - Canada, Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp, Less Blind Spot Information System / RH 		- 1 Enquire
17K707 LR129690
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp, Less Blind Spot Information System / RH / To: L2999999 		- 1 Enquire
17K707 LR129693
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp, Less Blind Spot Information System / RH 		- 1 Enquire
17K707 LR129696
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp / RH / To: L2999999 		- 1 Enquire
17K707 LR129701
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Blind Spot Assist, Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp / RH / To: L2999999 		- 1 Enquire
17K707 LR129705
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Blind Spot Assist, Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp / RH / To: L2999999 		- 1 Enquire
17K707 LR129663
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Dual Power Heated Exterior Mirrors, Less Blind Spot Information System / LH 		- 1 Enquire
17K707 LR129684
GLASS - REAR VIEW OUTER MIRROR
1 Flat/1 Convex Glass - Canada, Dual Power Heated Exterior Mirrors, Less Blind Spot Information System / LH 		- 1 Enquire
17K707 LR129687
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Dual Power Heated Exterior Mirrors, Less Blind Spot Information System / LH 		- 1 Enquire
17K707 LR129689
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Blind Spot Information System / LH 		- 1 Enquire
17K707 LR129692
GLASS - REAR VIEW OUTER MIRROR
1 Flat/1 Convex Glass - Canada, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Blind Spot Information System / LH 		- 1 Enquire
17K707 LR129695
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Blind Spot Information System / LH 		- 1 Enquire
17K707 LR129699
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Blind Spot Assist, Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp / LH / To: L2999999 		- 1 Enquire
17K707 LR129702
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp / LH / To: L2999999 		- 1 Enquire
17K707 LR129706
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Blind Spot Assist, Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp / LH / To: L2999999 		- 1 Enquire
17K707 LR154401
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, RHD / LH / From: M2000001 		- 1 Enquire
17K707 LR154402
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, LHD / RH / From: M2000001 		- 1 Enquire
17K707 LR154403
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, LHD / RH / From: M2000001 		- 1 Enquire
17K707 LR154404
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, LHD / RH / From: M2000001 		- 1 Enquire
17K707 LR129706
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Blind Spot Assist, Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp, LHD / LH / From: M2000001 		- 1 Enquire
17K707 LR129702
GLASS - REAR VIEW OUTER MIRROR
1 Flat/1 Convex Glass - Canada, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, LHD / LH / From: M2000001 		- 1 Enquire
17K707 LR129699
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Blind Spot Assist, Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp, LHD / LH / From: M2000001 		- 1 Enquire
17K707 LR129696
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Blind Spot Assist, Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp, RHD / RH / From: M2000001 		- 1 Enquire
13368 LR129712
LAMP - EXTERIOR MIRROR
RH 		- 1 Enquire
13368 LR129714
LAMP - EXTERIOR MIRROR
LH 		- 1 Enquire
17682 LR132540
MIRROR - REAR VIEW - OUTER
Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp, Less Blind Spot Information System, Less Water Wading Equipment, Rear View Camera-Fixed / RH 		- 1 Enquire
17682 LR132541
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Water Wading Equipment, Rear View Camera-Fixed / RH 		- 1 Enquire
17682 LR132552
MIRROR - REAR VIEW - OUTER
3D Surround Camera, Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp, Less Blind Spot Information System, Water Wading Aid / RH 		- 1 Enquire
17682 LR132553
MIRROR - REAR VIEW - OUTER
3D Surround Camera, Blind Spot Assist, Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp, Water Wading Aid / RH 		- 1 Enquire
17682 LR132534
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, Less Blind Spot Information System, Less Water Wading Equipment, Rear View Camera-Fixed / RH 		- 1 Enquire
17682 LR132539
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, Less Blind Spot Information System, Less Water Wading Equipment, Rear View Camera-Fixed / LH 		- 1 Enquire
17682 LR133080
MIRROR - REAR VIEW - OUTER
Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Blind Spot Information System, Less Water Wading Equipment, Rear View Camera-Fixed / LH 		- 1 Enquire
17682 LR132542
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp, Less Water Wading Equipment, Rear View Camera-Fixed / LH 		- 1 Enquire
17682 LR132554
MIRROR - REAR VIEW - OUTER
3D Surround Camera, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Water Wading Aid / LH 		- 1 Enquire
17682 LR132549
MIRROR - REAR VIEW - OUTER
3D Surround Camera, Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp, Less Blind Spot Information System, Water Wading Aid / LH 		- 1 Enquire
