Front Door Lock Controls ((V) TON2999999) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Front Door Lock Controls ((V) TON2999999)

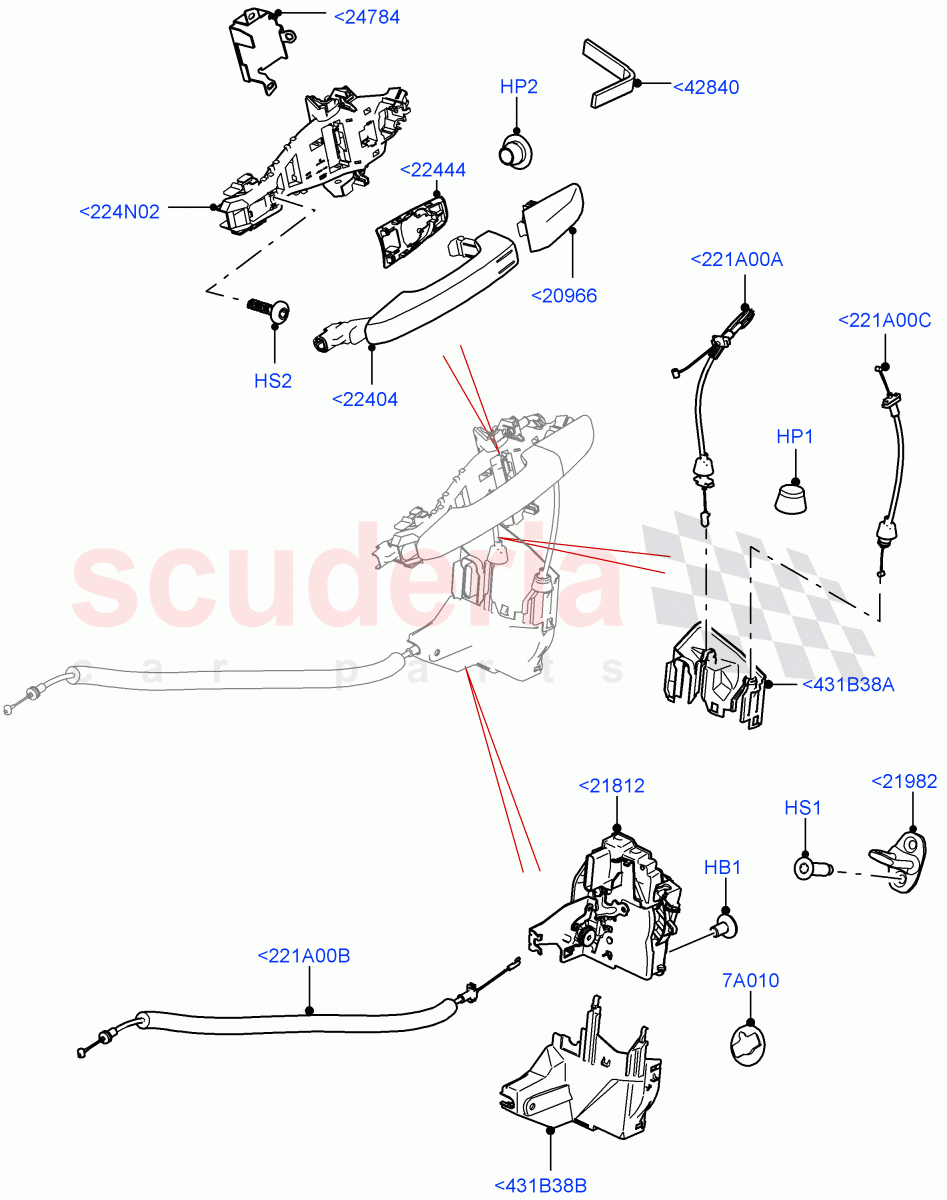

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038526	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058114	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124815	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042467	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083297	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059989	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131376	CAP - HANDLE	Enquire	To Order
	LR131379	CAP - HANDLE	Enquire	To Order
	LR139327	CAP - HANDLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR070434	LATCH - FRONT DOOR	Enquire	To Order
	LR070436	LATCH - FRONT DOOR	Enquire	To Order
	LR070437	LATCH - FRONT DOOR	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR086606	STRIKER - DOOR LOCKING MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131357	HANDLE - DOOR - OUTER	Enquire	To Order
	LR131358	HANDLE - DOOR - OUTER	Enquire	To Order
	LR131359	HANDLE - DOOR - OUTER	Enquire	To Order

...and 12 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR131374	GASKET - DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041255	SHIELD - DOOR LOCK	Enquire	To Order
	LR027324	SHIELD - DOOR LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125223	INSULATOR - FOAM PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108199	REINFORCEMENT	Enquire	To Order
	LR108184	REINFORCEMENT	Enquire	To Order
	LR108185	REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129772	CABLE - DOOR LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129777	CABLE - DOOR LATCH	Enquire	To Order
	LR129774	CABLE - DOOR LATCH	Enquire	To Order
	LR139959	CABLE - DOOR LATCH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR129780	CABLE - DOOR LATCH	Enquire	To Order
	LR129776	CABLE - DOOR LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070443	COVER - LATCH	Enquire	To Order
	LR070459	COVER - LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070444	COVER - LATCH	Enquire	To Order
	LR070460	COVER - LATCH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<221A00A	LR129772	CABLE - DOOR LATCH	LR129772 CABLE - DOOR LATCH To: N2999999	-	1	Enquire
<221A00B	LR129777	CABLE - DOOR LATCH	LR129777 CABLE - DOOR LATCH Standard Wheelbase / RH/LH / To: L2002320	-	2	Enquire
<221A00B	LR129774	CABLE - DOOR LATCH	LR129774 CABLE - DOOR LATCH Short Wheelbase / RH/LH / To: M2037446	-	2	Enquire
<221A00B	LR139959	CABLE - DOOR LATCH	LR139959 CABLE - DOOR LATCH Standard Wheelbase / RH/LH / From: L2002321 / To: N2999999	-	2	Enquire
<221A00B	LR139960	CABLE - DOOR LATCH	LR139960 CABLE - DOOR LATCH Short Wheelbase / RH/LH / From: M2037447 / To: N2999999	-	2	Enquire
<221A00C	LR129780	CABLE - DOOR LATCH	LR129780 CABLE - DOOR LATCH Standard Wheelbase / To: N2999999	-	1	Enquire
<221A00C	LR129776	CABLE - DOOR LATCH	LR129776 CABLE - DOOR LATCH Short Wheelbase / To: N2999999	-	1	Enquire
<224N02	LR108199	REINFORCEMENT	LR108199 REINFORCEMENT LHD / For Drivers Side, With Lock Barrel Aperture	-	1	Enquire
<224N02	LR108184	REINFORCEMENT	LR108184 REINFORCEMENT Less Lock Barrel Aperture, Passenger Side	-	1	Enquire
<224N02	LR108185	REINFORCEMENT	LR108185 REINFORCEMENT RHD / For Drivers Side, With Lock Barrel Aperture	-	1	Enquire
<431B38A	LR070443	COVER - LATCH	LR070443 COVER - LATCH RH, Upper / To: N2999999	-	1	Enquire
<431B38A	LR070459	COVER - LATCH	LR070459 COVER - LATCH LH, Upper / To: N2999999	-	1	Enquire
<431B38B	LR070444	COVER - LATCH	LR070444 COVER - LATCH RH, Lower / To: N2999999	-	1	Enquire
<431B38B	LR070460	COVER - LATCH	LR070460 COVER - LATCH LH, Lower / To: N2999999	-	1	Enquire
<20966	LR131376	CAP - HANDLE	LR131376 CAP - HANDLE With Keyless Start / Less Lock Barrel Aperture	-	1	Enquire
<20966	LR131379	CAP - HANDLE	LR131379 CAP - HANDLE With Keyless Start / With Lock Barrel Aperture	-	1	Enquire
<20966	LR139327	CAP - HANDLE	LR139327 CAP - HANDLE Keyless Entry/Start - Passive / Less Lock Barrel Aperture, Primed	-	1	Enquire
<20966	LR139328	CAP - HANDLE	LR139328 CAP - HANDLE Keyless Entry/Start - Passive / Primed, With Lock Barrel Aperture	-	1	Enquire
<21812	LR070434	LATCH - FRONT DOOR	LR070434 LATCH - FRONT DOOR Double Locking Power Lock Latch, RHD / RH, Inner / To: N2999999	-	1	Enquire
<21812	LR070436	LATCH - FRONT DOOR	LR070436 LATCH - FRONT DOOR Double Locking Power Lock Latch, LHD / RH, Inner / To: N2999999	-	1	Enquire
<21812	LR070437	LATCH - FRONT DOOR	LR070437 LATCH - FRONT DOOR Central Locking Power Lock Latch, LHD / RH, Inner / To: N2999999	-	1	Enquire
<21812	LR070438	LATCH - FRONT DOOR	LR070438 LATCH - FRONT DOOR Double Locking Power Lock Latch, LHD / LH, Inner / To: N2999999	-	1	Enquire
<21812	LR070441	LATCH - FRONT DOOR	LR070441 LATCH - FRONT DOOR Double Locking Power Lock Latch, RHD / LH, Inner / To: N2999999	-	1	Enquire
<21812	LR070442	LATCH - FRONT DOOR	LR070442 LATCH - FRONT DOOR Central Locking Power Lock Latch, RHD / LH, Inner / To: N2999999	-	1	Enquire
<21812	LR070435	LATCH - FRONT DOOR	LR070435 LATCH - FRONT DOOR Central Locking Power Lock Latch, RHD / RH, Inner / To: N2999999	-	1	Enquire
<21812	LR070440	LATCH - FRONT DOOR	LR070440 LATCH - FRONT DOOR Central Locking Power Lock Latch, LHD / LH, Inner / To: N2999999	-	1	Enquire
<21982	LR086606	STRIKER - DOOR LOCKING MECHANISM	LR086606 STRIKER - DOOR LOCKING MECHANISM RH/LH	-	2	Enquire
<22404	LR131357	HANDLE - DOOR - OUTER	LR131357 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive, Storm Grey/Carpathian Grey (1AU) / RH/LH	-	2	Enquire
<22404	LR131358	HANDLE - DOOR - OUTER	LR131358 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive, Rhodium Silver/Indus Silver (1AC) / RH/LH	-	2	Enquire
<22404	LR131359	HANDLE - DOOR - OUTER	LR131359 HANDLE - DOOR - OUTER Glacier White/Yulong White (1AQ), Keyless Entry/Start - Passive / RH/LH	-	2	Enquire
<22404	LR131361	HANDLE - DOOR - OUTER	LR131361 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive, Polaris White/Fuji White (1AA) / RH/LH	-	2	Enquire
<22404	LR131362	HANDLE - DOOR - OUTER	LR131362 HANDLE - DOOR - OUTER Ebony Black/Narvik Black (1AT), Keyless Entry/Start - Passive / RH/LH	-	2	Enquire
<22404	LR131363	HANDLE - DOOR - OUTER	LR131363 HANDLE - DOOR - OUTER Gondwana Stone Gloss (1DK), Keyless Entry/Start - Passive / RH/LH	-	2	Enquire
<22404	LR131365	HANDLE - DOOR - OUTER	LR131365 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive, Shifting Pangea (1DJ) / RH/LH	-	2	Enquire
<22404	LR131366	HANDLE - DOOR - OUTER	LR131366 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive, Nebelquell Blue (1DL) / RH/LH	-	2	Enquire
<22404	LR131367	HANDLE - DOOR - OUTER	LR131367 HANDLE - DOOR - OUTER Eiger Grey (1DF), Keyless Entry/Start - Passive / RH/LH	-	2	Enquire
<22404	LR131368	HANDLE - DOOR - OUTER	LR131368 HANDLE - DOOR - OUTER Gallium/Silicon Silver (1BN), Keyless Entry/Start - Passive / RH/LH	-	2	Enquire
<22404	LR131369	HANDLE - DOOR - OUTER	LR131369 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive, Ultimate Black/Santorini Black(1AG) / RH/LH	-	2	Enquire
<22404	LR131371	HANDLE - DOOR - OUTER	LR131371 HANDLE - DOOR - OUTER With Keyless Start / Primer, RH/LH	-	2	Enquire
<22404	LR143315	HANDLE - DOOR - OUTER	LR143315 HANDLE - DOOR - OUTER Hakuba Silver (1DU), Keyless Entry/Start - Passive / RH/LH / From: M2000001	-	2	Enquire
<22404	LR143316	HANDLE - DOOR - OUTER	LR143316 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive, Portofino Blue (1DG) / RH/LH / From: M2000001	-	2	Enquire
<22404	LR168659	HANDLE - DOOR - OUTER	LR168659 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive / Primed, RH/LH	-	2	Enquire
<22444	LR131374	GASKET - DOOR HANDLE	LR131374 GASKET - DOOR HANDLE RH/LH	-	2	Enquire
<24784	LR041255	SHIELD - DOOR LOCK	LR041255 SHIELD - DOOR LOCK Double Locking Power Lock Latch, Keyless Entry/Start - Passive, RHD / RH	-	1	Enquire
<24784	LR027324	SHIELD - DOOR LOCK	LR027324 SHIELD - DOOR LOCK Double Locking Power Lock Latch, LHD, With Keyless Start / LH	-	1	Enquire
<42840	LR125223	INSULATOR - FOAM PAD	LR125223 INSULATOR - FOAM PAD RH/LH / To: N2999999	-	2	Enquire
HB1	LR038526	BOLT	LR038526 BOLT M6 X 11MM	-	6	Enquire
HP1	LR058114	PLUG - BLANKING	LR058114 PLUG - BLANKING Seal	-	2	Enquire
HP2	LR124815	PLUG - BLANKING	LR124815 PLUG - BLANKING M11 X 0.7 - 4, RH/LH	-	2	Enquire
HS1	LR042467	BOLT	LR042467 BOLT M8 X 25MM	-	4	Enquire
HS2	LR083297	SCREW	LR083297 SCREW M5 x 22MM	-	2	Enquire
7A010	LR059989	PLUG - BLANKING	LR059989 PLUG - BLANKING	-	2	Enquire
