Name: Roof - Sheet Metal (Standard Wheelbase, Less Panorama Roof)
Rating: 4.6 (1 reviews)

View All

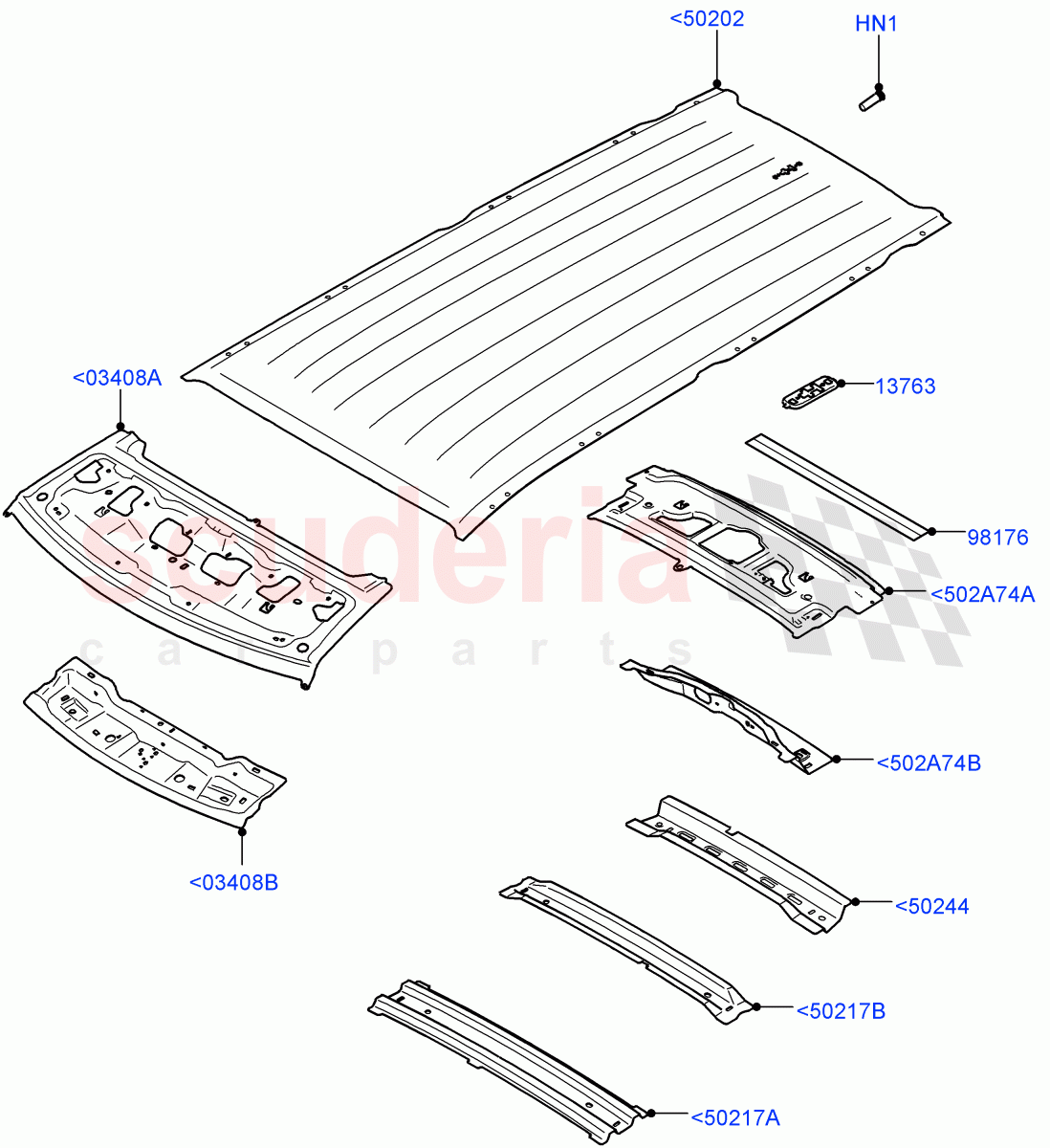

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR088325	NUT - SPECIAL	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105988	BRACKET	$10.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138314	SEAL - DOOR FRONT AND REAR	$39.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131182	PANEL - ROOF	$1,678.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131206	REINFORCEMENT - ROOF PANEL	$179.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141352	PANEL - ROOF	$586.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131177	HEADER - WINDSCREEN	$270.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131192	REINFORCEMENT - ROOF PANEL	$179.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131193	REINFORCEMENT - ROOF PANEL	$179.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131144	REINFORCEMENT - ROOF PANEL	$398.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131145	REINFORCEMENT - ROOF PANEL	$398.75	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<502A74A	LR131144	REINFORCEMENT - ROOF PANEL	LR131144 REINFORCEMENT - ROOF PANEL Category A, Rear, Upper	$398.75	1
<502A74B	LR131145	REINFORCEMENT - ROOF PANEL	LR131145 REINFORCEMENT - ROOF PANEL Category A, Lower, Rear	$398.75	1
<03408A	LR141352	PANEL - ROOF	LR141352 PANEL - ROOF Category A, Front, Upper	$586.93	1
<03408B	LR131177	HEADER - WINDSCREEN	LR131177 HEADER - WINDSCREEN Category A, Front, Lower	$270.42	1
<50202	LR131182	PANEL - ROOF	LR131182 PANEL - ROOF Category A, Roof	$1,678.94	1
<50217A	LR131192	REINFORCEMENT - ROOF PANEL	LR131192 REINFORCEMENT - ROOF PANEL Category A, Front	$179.13	1
<50217B	LR131193	REINFORCEMENT - ROOF PANEL	LR131193 REINFORCEMENT - ROOF PANEL Category A, Middle	$179.13	2
<50244	LR131206	REINFORCEMENT - ROOF PANEL	LR131206 REINFORCEMENT - ROOF PANEL Category A, Rear	$179.13	1
HN1	LR088325	NUT - SPECIAL	LR088325 NUT - SPECIAL M6 x 29MM, Rivet Nut	$2.63	7
13763	LR105988	BRACKET	LR105988 BRACKET Aerial, Bracket	$10.32	1
98176	LR138314	SEAL - DOOR FRONT AND REAR	LR138314 SEAL - DOOR FRONT AND REAR	$39.95	2
