Rear Doors, Hinges & Weatherstrips (Weatherstrips And Seals) (Standard Wheelbase) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Doors, Hinges & Weatherstrips (Weatherstrips And Seals) (Standard Wheelbase)

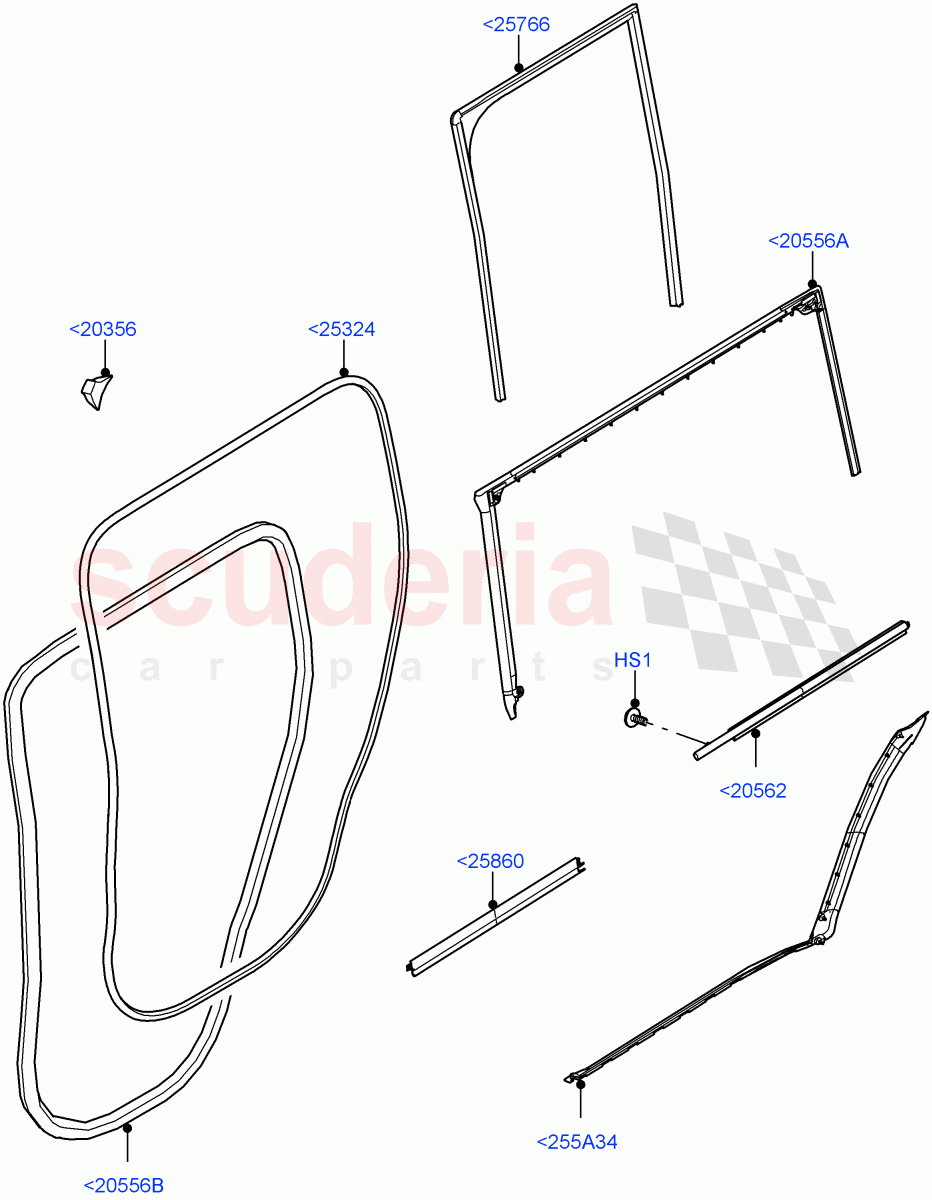

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR132235	SCREW - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131202	INSULATOR - DOOR OUTER PANEL	Enquire	To Order
	LR131204	INSULATOR - DOOR OUTER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132236	WEATHERSTRIP - DOOR BELT	Enquire	To Order
	LR132237	WEATHERSTRIP - DOOR BELT	Enquire	To Order
	LR159629	WEATHERSTRIP - DOOR BELT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR131210	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR163136	SEAL - DOOR FRONT AND REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131241	RUN - DOOR GLASS	Enquire	To Order
	LR131242	RUN - DOOR GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131246	WEATHERSTRIP - DOOR BELT	Enquire	To Order
	LR131248	WEATHERSTRIP - DOOR BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131253	WEATHERSTRIP - DOOR OPENING	Enquire	To Order
	LR131254	WEATHERSTRIP - DOOR OPENING	Enquire	To Order
	LR142546	WEATHERSTRIP - DOOR OPENING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR131257	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR131256	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR131256	SEAL - DOOR FRONT AND REAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR131212	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR163144	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR163143	SEAL - DOOR FRONT AND REAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<255A34	LR131212	SEAL - DOOR FRONT AND REAR	LR131212 SEAL - DOOR FRONT AND REAR RH / To: N2076430	-	1	Enquire
<255A34	LR163144	SEAL - DOOR FRONT AND REAR	LR163144 SEAL - DOOR FRONT AND REAR LH / To: N2076430	-	1	Enquire
<255A34	LR163143	SEAL - DOOR FRONT AND REAR	LR163143 SEAL - DOOR FRONT AND REAR RH / From: N2076431	-	1	Enquire
<255A34	LR163144	SEAL - DOOR FRONT AND REAR	LR163144 SEAL - DOOR FRONT AND REAR LH / From: N2076431	-	1	Enquire
<20356	LR131202	INSULATOR - DOOR OUTER PANEL	LR131202 INSULATOR - DOOR OUTER PANEL RH	-	1	Enquire
<20356	LR131204	INSULATOR - DOOR OUTER PANEL	LR131204 INSULATOR - DOOR OUTER PANEL LH	-	1	Enquire
<20556A	LR131253	WEATHERSTRIP - DOOR OPENING	LR131253 WEATHERSTRIP - DOOR OPENING RH, Door Upper / To: L2004399	-	1	Enquire
<20556A	LR131254	WEATHERSTRIP - DOOR OPENING	LR131254 WEATHERSTRIP - DOOR OPENING LH, Door Upper / To: L2004399	-	1	Enquire
<20556A	LR142546	WEATHERSTRIP - DOOR OPENING	LR142546 WEATHERSTRIP - DOOR OPENING RH, Door Upper / From: L2004400 / To: M2056041	-	1	Enquire
<20556A	LR175081	WEATHERSTRIP - DOOR OPENING	LR175081 WEATHERSTRIP - DOOR OPENING LH, Door Upper / From: L2004400 / To: M2056041	-	1	Enquire
<20556A	LR159627	WEATHERSTRIP - DOOR OPENING	LR159627 WEATHERSTRIP - DOOR OPENING RH, Door Upper / From: M2056042	-	1	Enquire
<20556A	LR159628	WEATHERSTRIP - DOOR OPENING	LR159628 WEATHERSTRIP - DOOR OPENING LH, Door Upper / From: M2056042	-	1	Enquire
<20556B	LR131257	SEAL - DOOR FRONT AND REAR	LR131257 SEAL - DOOR FRONT AND REAR With Noise Insulation Pack / Body, RH/LH / To: L2007504	-	2	Enquire
<20556B	LR131256	SEAL - DOOR FRONT AND REAR	LR131256 SEAL - DOOR FRONT AND REAR With Noise Insulation Pack Sup Prem / Body, RH/LH / To: L2007504	-	2	Enquire
<20556B	LR131256	SEAL - DOOR FRONT AND REAR	LR131256 SEAL - DOOR FRONT AND REAR Body, RH/LH / From: L2007505 / To: N2100915	-	2	Enquire
<20556B	LR164726	SEAL - DOOR FRONT AND REAR	LR164726 SEAL - DOOR FRONT AND REAR Body, RH/LH / From: N2100916	-	2	Enquire
<20562	LR132236	WEATHERSTRIP - DOOR BELT	LR132236 WEATHERSTRIP - DOOR BELT RH / To: M2052563	-	1	Enquire
<20562	LR132237	WEATHERSTRIP - DOOR BELT	LR132237 WEATHERSTRIP - DOOR BELT LH / To: M2052563	-	1	Enquire
<20562	LR159629	WEATHERSTRIP - DOOR BELT	LR159629 WEATHERSTRIP - DOOR BELT RH / From: M2052564 / To: N2091480	-	1	Enquire
<20562	LR159630	WEATHERSTRIP - DOOR BELT	LR159630 WEATHERSTRIP - DOOR BELT LH / From: M2052564 / To: N2091480	-	1	Enquire
<20562	LR163126	WEATHERSTRIP - DOOR BELT	LR163126 WEATHERSTRIP - DOOR BELT RH / From: N2091481	-	1	Enquire
<20562	LR163127	WEATHERSTRIP - DOOR BELT	LR163127 WEATHERSTRIP - DOOR BELT LH / From: N2091481	-	1	Enquire
<25324	LR131210	SEAL - DOOR FRONT AND REAR	LR131210 SEAL - DOOR FRONT AND REAR RH/LH / To: N2076430	-	2	Enquire
<25324	LR163136	SEAL - DOOR FRONT AND REAR	LR163136 SEAL - DOOR FRONT AND REAR RH/LH / From: N2076431	-	2	Enquire
<25766	LR131241	RUN - DOOR GLASS	LR131241 RUN - DOOR GLASS RH	-	1	Enquire
<25766	LR131242	RUN - DOOR GLASS	LR131242 RUN - DOOR GLASS LH	-	1	Enquire
<25860	LR131246	WEATHERSTRIP - DOOR BELT	LR131246 WEATHERSTRIP - DOOR BELT RH	-	1	Enquire
<25860	LR131248	WEATHERSTRIP - DOOR BELT	LR131248 WEATHERSTRIP - DOOR BELT LH	-	1	Enquire
HS1	LR132235	SCREW - PAN - TORX	LR132235 SCREW - PAN - TORX 4 x 10MM	-	2	Enquire
