Fuel Tank & Related Parts (Nitra Plant Build) (2.0L I4 Dsl High Dohc Aj200, Standard Wheelbase)...

Land Rover Defender (2020+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Standard Wheelbase)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR093364 BOLT $2.69 To Order
Photo Part No Description Price (each) Stock
LR093365 CLIP $1.96 To Order
Photo Part No Description Price (each) Stock
LR091651 CLIP - PIPE $2.53 To Order
Photo Part No Description Price (each) Stock
LR093728 CLIP - HOSE $2.97 To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE $5.85 To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.03 To Order
Photo Part No Description Price (each) Stock
LR136781 TANK - FUEL $1,198.17 To Order
Photo Part No Description Price (each) Stock
LR138719 CAP - FUEL TANK FILLER $37.60 To Order
LR138861 CAP - FUEL TANK FILLER $37.60 To Order
Photo Part No Description Price (each) Stock
LR128357 PIPE - FUEL FILLER $217.12 To Order
LR128358 PIPE - FUEL FILLER $217.12 To Order
LR128359 PIPE - FUEL FILLER $217.12 To Order
Photo Part No Description Price (each) Stock
LR128360 HOSE - FILLER PIPE $93.57 To Order
Photo Part No Description Price (each) Stock
LR146963 TUBE - FUEL VAPOUR $59.81 To Order
Photo Part No Description Price (each) Stock
LR148067 SHIELD $631.63 To Order
Photo Part No Description Price (each) Stock
LR073691 FUNNEL - FUEL FILLER $6.02 To Order
Photo Part No Description Price (each) Stock
LR014047 RESTRICTOR - FUEL $25.12 To Order
Photo Part No Description Price (each) Stock
LR122707 TUBE - FUEL $62.86 To Order
Photo Part No Description Price (each) Stock
LR125887 TUBE - FUEL FEED $61.90 To Order
View All

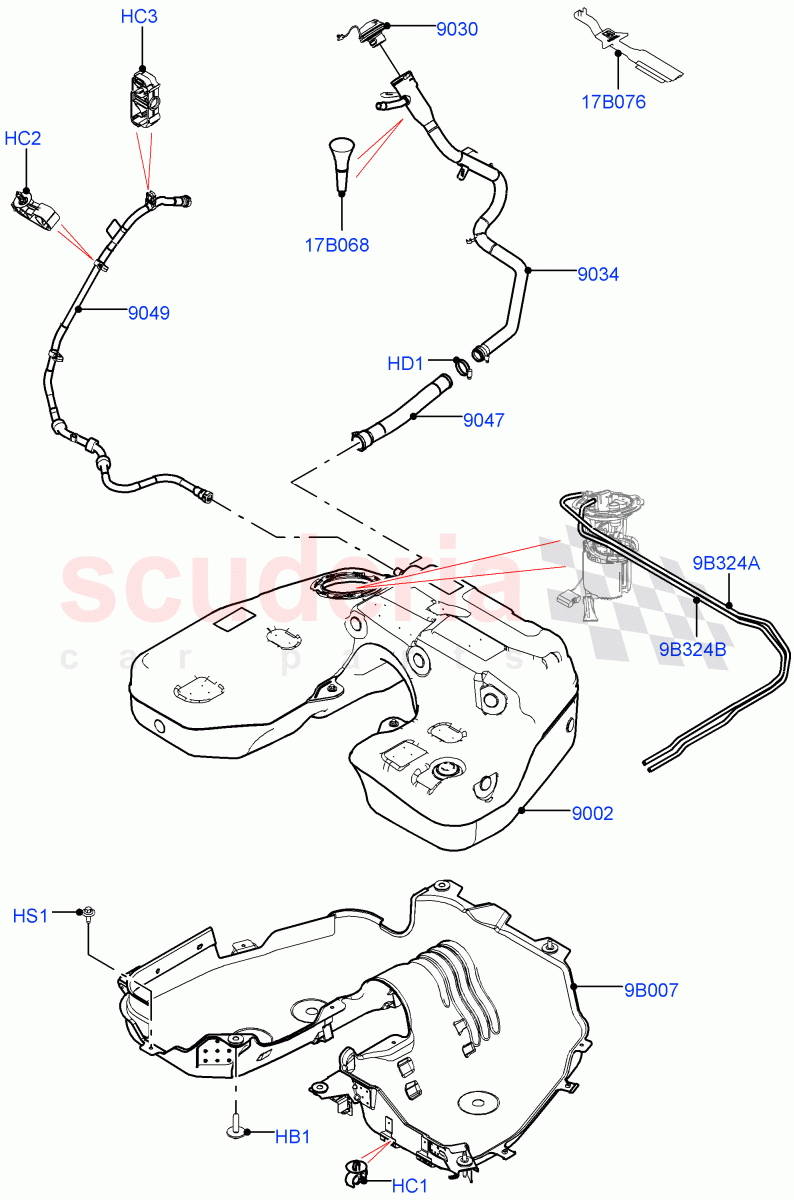

Fuel Tank & Related Parts (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Standard Wheelbase) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR093364
BOLT
Hexagonal Head, M10 X 50MM, To Body / From: M2000001 		$2.69 7
HC1 LR093365
CLIP
Shield / From: M2000001 		$1.96 2
HC2 LR091651
CLIP - PIPE
Lower, Vapour Line / From: M2000001 		$2.53 2
HC3 LR093728
CLIP - HOSE
Upper, Vapour Line / From: M2000001 		$2.97 3
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: M2000001 		$5.85 1
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: M2000001 		$4.03 5
9B007 LR148067
SHIELD
Cradle / From: M2000001 		$631.63 1
9B324A LR122707
TUBE - FUEL
Feed / From: M2000001 		$62.86 1
9B324B LR125887
TUBE - FUEL FEED
Return / From: M2000001 		$61.90 1
17B068 LR073691
FUNNEL - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: M2000001 		$6.02 1
17B076 LR014047
RESTRICTOR - FUEL
Fuel Tank Filler Neck - Diesel / From: M2000001 		$25.12 1
9002 LR136781
TANK - FUEL
From: M2000001 		$1,198.17 1
9030 LR138719
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: M2000001 		$37.60 1
9030 LR138861
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck With Inhibit / From: M2000001 		$37.60 1
9034 LR128357
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / Inlet, Upper / From: M2000001 		$217.12 1
9034 LR128358
PIPE - FUEL FILLER
Fuel Tank Filler Neck - All Nozzles / Inlet, Upper / From: M2000001 		$217.12 1
9034 LR128359
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / Inlet, Upper / From: M2000001 		$217.12 1
9047 LR128360
HOSE - FILLER PIPE
Fuel Tank, Inlet / From: M2000001 		$93.57 1
9049 LR146963
TUBE - FUEL VAPOUR
From: M2000001 		$59.81 1
