Fuel Lines (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Fuel Tank-Diesel)

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Fuel Lines (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Fuel Tank-Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR125292 FILTER - FUEL - PRIMARY Enquire To Order
Photo Part No Description Price (each) Stock
LR125289 BRACKET - FUEL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR125290 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR131488 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR087240 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR087239 BRACKET - FUEL TUBE SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR082269 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR131494 TUBE - FUEL FILTER TO FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR082765 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR129646 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR087241 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR132674 TUBE - FUEL SUPPLY Enquire To Order
LR128368 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
LR144563 TUBE - FUEL SUPPLY Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR125301 FILTER - FUEL - PRIMARY Enquire To Order
Photo Part No Description Price (each) Stock
LR081530 GROMMET - FUEL FILTER Enquire To Order
View All

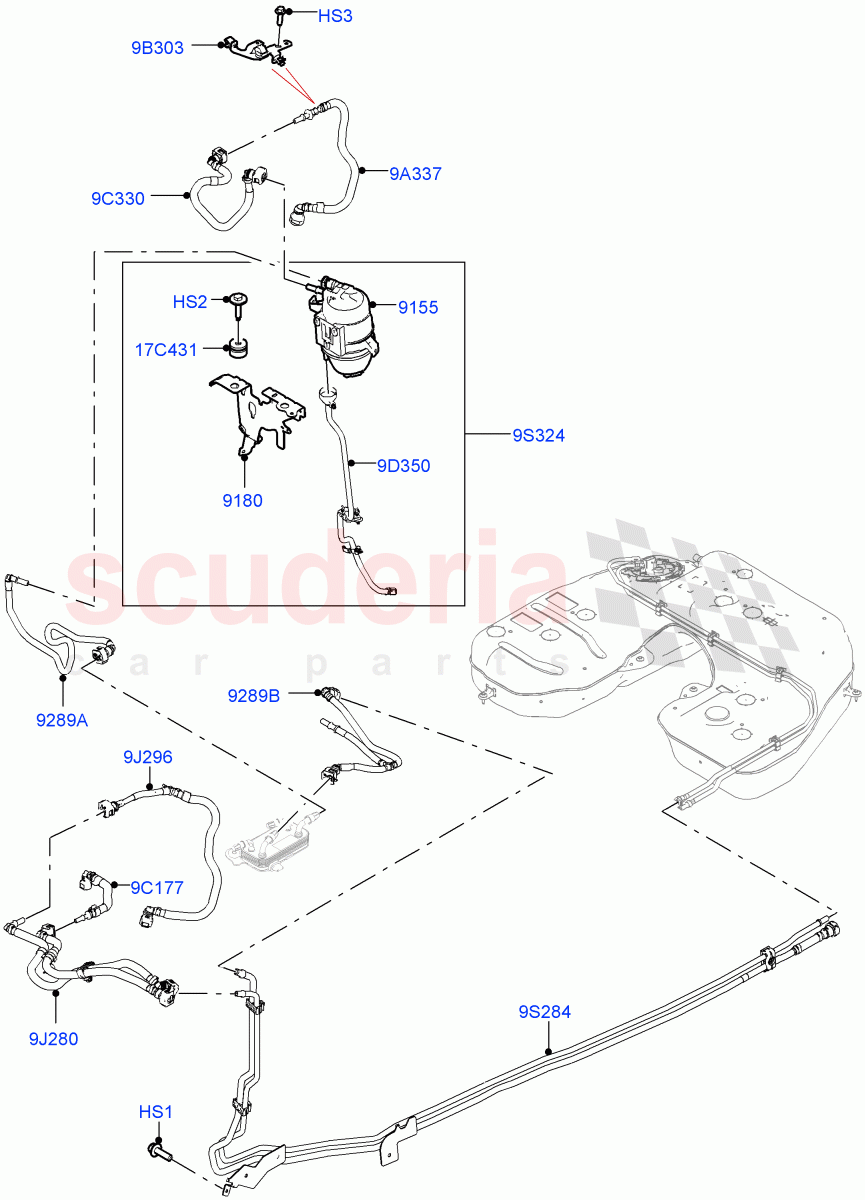

Fuel Lines (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Fuel Tank-Diesel) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM 		- 2 Enquire
HS2 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 		- 2 Enquire
HS3 LR071774
SCREW
Hexagonal Head, M6 X 20MM 		- 2 Enquire
9A337 LR087240
PIPE - FUEL
To Fuel Pump 		- 1 Enquire
9B303 LR087239
BRACKET - FUEL TUBE SUPPORT 		- 1 Enquire
9C177 LR082269
PIPE - FUEL
Engine 		- 1 Enquire
9C330 LR131494
TUBE - FUEL FILTER TO FUEL PUMP
To Fuel Filter 		- 1 Enquire
9D350 LR082765
TUBE - FUEL
Drain 		- 1 Enquire
9J280 LR129646
PIPE - FUEL 		- 1 Enquire
9J296 LR087241
PIPE - FUEL
Fuel Pump 		- 1 Enquire
9S284 LR132674
TUBE - FUEL SUPPLY
Standard Wheelbase / Rear / To: M2028919 		- 1 Enquire
9S284 LR128368
TUBE - FUEL SUPPLY AND VAPOUR
Short Wheelbase / Rear / To: M2028919 		- 1 Enquire
9S284 LR144563
TUBE - FUEL SUPPLY
Standard Wheelbase / Rear / From: M2028920 / To: M2034428 		- 1 Enquire
9S284 LR144564
TUBE - FUEL SUPPLY AND VAPOUR
Short Wheelbase / Rear / From: M2028920 / To: M2034428 		- 1 Enquire
9S284 LR149356
TUBE - FUEL SUPPLY
Standard Wheelbase / Rear / From: M2034429 		- 1 Enquire
9S284 LR149357
TUBE - FUEL SUPPLY AND VAPOUR
Short Wheelbase / Rear / From: M2034429 		- 1 Enquire
9S324 LR125301
FILTER - FUEL - PRIMARY
Assembly 		- 1 Enquire
17C431 LR081530
GROMMET - FUEL FILTER 		- 2 Enquire
9155 LR125292
FILTER - FUEL - PRIMARY
With Bracket 		- 1 Enquire
9180 LR125289
BRACKET - FUEL FILTER 		- 1 Enquire
9289A LR125290
TUBE - FUEL
Fuel Cooler To Filter Tube 		- 1 Enquire
9289B LR131488
TUBE - FUEL
From Fuel Cooler 		- 1 Enquire
