Fuel Tank & Related Parts (Nitra Plant Build) (2.0L I4 Dsl High Dohc Aj200, Short Wheelbase)

Land Rover Defender (2020+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Short Wheelbase)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR060351 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR143376 TANK - FUEL Enquire To Order
LR166535 TANK - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR138861 CAP - FUEL TANK FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR128357 PIPE - FUEL FILLER Enquire To Order
LR128358 PIPE - FUEL FILLER Enquire To Order
LR128359 PIPE - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR128360 HOSE - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR132786 TUBE - FUEL VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR143381 SHIELD Enquire To Order
LR159413 SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR073691 FUNNEL - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR014047 RESTRICTOR - FUEL Enquire To Order
View All

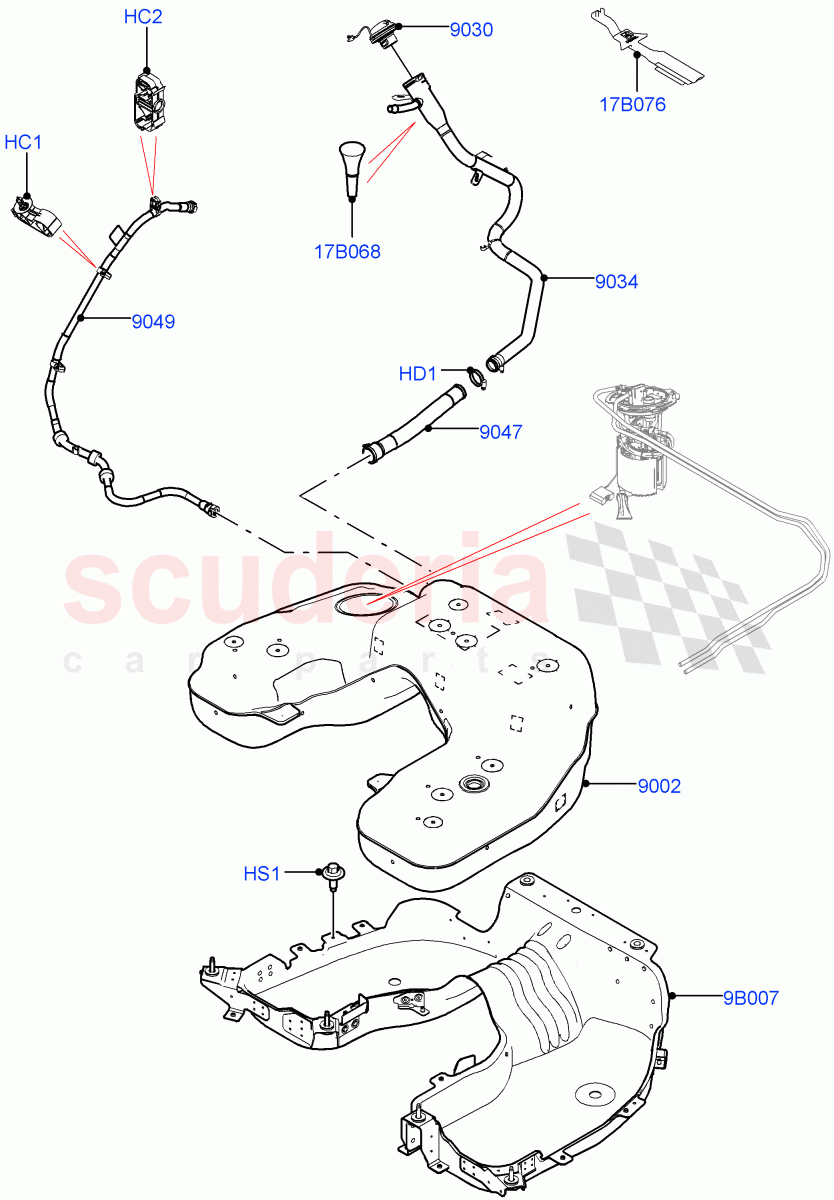

Fuel Tank & Related Parts (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Short Wheelbase) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR094032
CLIP - HOSE
Plastic 		- 2 Enquire
HC2 LR060351
CLIP - HOSE 		- 1 Enquire
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 		- 1 Enquire
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 		- 4 Enquire
9B007 LR143381
SHIELD
Cradle / To: L2999999 		- 1 Enquire
9B007 LR159413
SHIELD
Cradle / From: M2000001 		- 1 Enquire
17B068 LR073691
FUNNEL - FUEL FILLER
Fuel Tank Filler Neck With Inhibit 		- 1 Enquire
17B076 LR014047
RESTRICTOR - FUEL
Fuel Tank Filler Neck - Diesel 		- 1 Enquire
9002 LR143376
TANK - FUEL
To: N2090499 		- 1 Enquire
9002 LR166535
TANK - FUEL
From: N2090500 		- 1 Enquire
9030 LR138861
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck With Inhibit 		- 1 Enquire
9034 LR128357
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel 		- 1 Enquire
9034 LR128358
PIPE - FUEL FILLER
Fuel Tank Filler Neck - All Nozzles 		- 1 Enquire
9034 LR128359
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit 		- 1 Enquire
9047 LR128360
HOSE - FILLER PIPE
Fuel Tank, Inlet 		- 1 Enquire
9049 LR132786
TUBE - FUEL VAPOUR 		- 1 Enquire
