Name: Fuel Tank & Related Parts (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Standard Wheelbase) ((V) TOL2999999)
Rating: 5.0 (1 reviews)

Fuel Tank & Related Parts (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Standard Wheelbase) ((V) TOL2999999) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel]

View All

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Standard Wheelbase)...

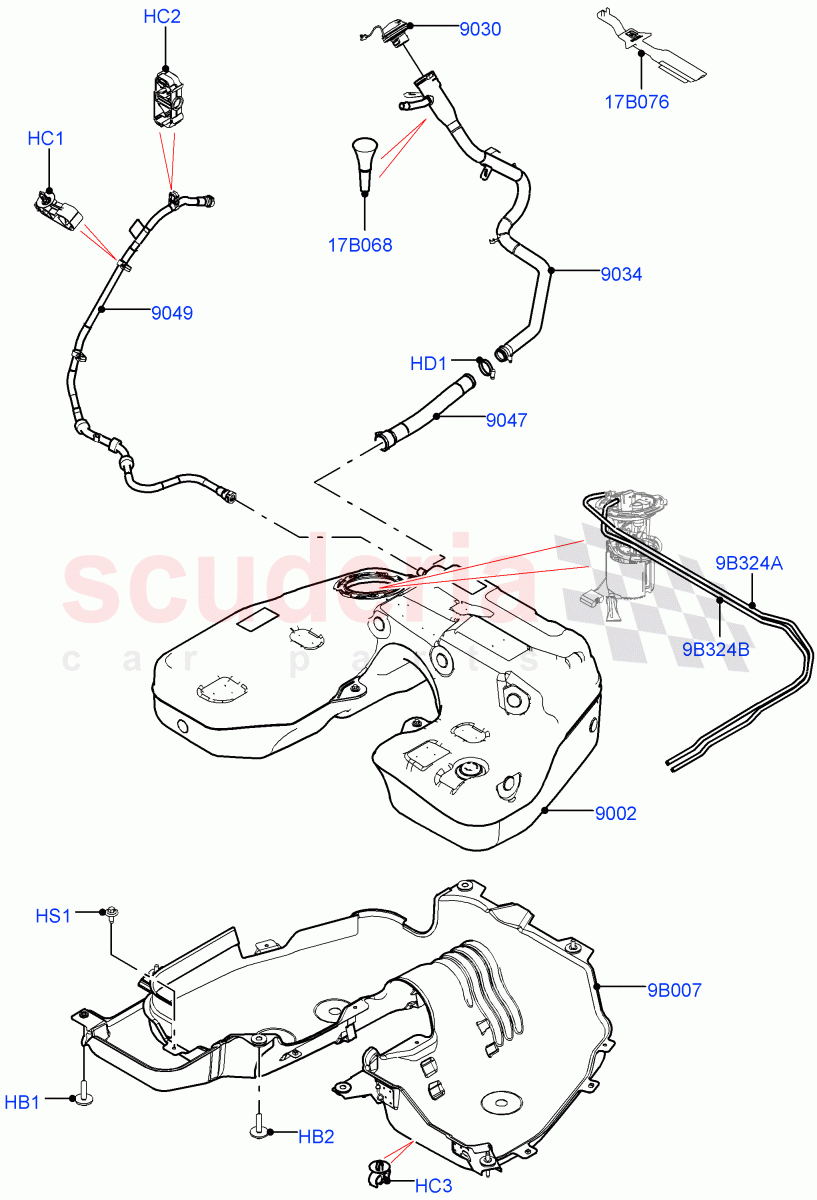

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR088949	BOLT	$3.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093364	BOLT	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	$4.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093365	CLIP	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	$5.85	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136781	TANK - FUEL	$1,198.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112190	CAP - FUEL TANK FILLER	$33.66	To Order
	LR053666	CAP - FUEL TANK FILLER	$26.81	To Order
	LR138861	CAP - FUEL TANK FILLER	$37.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128357	PIPE - FUEL FILLER	$217.12	To Order
	LR128358	PIPE - FUEL FILLER	$217.12	To Order
	LR128359	PIPE - FUEL FILLER	$217.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128360	HOSE - FILLER PIPE	$93.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132786	TUBE - FUEL VAPOUR	$59.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138377	Shield	$619.90	To Order
	LR139063	SHIELD	$631.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073691	FUNNEL - FUEL FILLER	$6.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014047	RESTRICTOR - FUEL	$25.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122707	TUBE - FUEL	$62.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125887	TUBE - FUEL FEED	$61.90	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR088949	BOLT	LR088949 BOLT M6 X 40MM	$3.78	1
HB2	LR093364	BOLT	LR093364 BOLT Hexagonal Head, M10 X 50MM, To Body	$2.69	5
HC1	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Plastic	$4.23	2
HC2	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE	$4.25	1
HC3	LR093365	CLIP	LR093365 CLIP With Diesel Exh Fluid Emission Tank	$1.96	2
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9	$5.85	1
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30	$4.03	5
9B007	LR138377	Shield	LR138377 Shield Cradle / To: L2000585	$619.90	1
9B007	LR139063	SHIELD	LR139063 SHIELD Cradle / From: L2000586	$631.63	1
9B324A	LR122707	TUBE - FUEL	LR122707 TUBE - FUEL Feed	$62.86	1
9B324B	LR125887	TUBE - FUEL FEED	LR125887 TUBE - FUEL FEED Return	$61.90	1
17B068	LR073691	FUNNEL - FUEL FILLER	LR073691 FUNNEL - FUEL FILLER Fuel Tank Filler Neck With Inhibit	$6.02	1
17B076	LR014047	RESTRICTOR - FUEL	LR014047 RESTRICTOR - FUEL Fuel Tank Filler Neck - Diesel	$25.12	1
9002	LR136781	TANK - FUEL	LR136781 TANK - FUEL	$1,198.17	1
9030	LR112190	CAP - FUEL TANK FILLER	LR112190 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan	$33.66	1
9030	LR053666	CAP - FUEL TANK FILLER	LR053666 CAP - FUEL TANK FILLER Fuel Tank Filler Neck With Inhibit / To: L2000585	$26.81	1
9030	LR138861	CAP - FUEL TANK FILLER	LR138861 CAP - FUEL TANK FILLER Fuel Tank Filler Neck With Inhibit / From: L2000586	$37.60	1
9034	LR128357	PIPE - FUEL FILLER	LR128357 PIPE - FUEL FILLER Fuel Tank Filler Neck - Diesel	$217.12	1
9034	LR128358	PIPE - FUEL FILLER	LR128358 PIPE - FUEL FILLER Fuel Tank Filler Neck - All Nozzles	$217.12	1
9034	LR128359	PIPE - FUEL FILLER	LR128359 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit	$217.12	1
9047	LR128360	HOSE - FILLER PIPE	LR128360 HOSE - FILLER PIPE	$93.57	1
9049	LR132786	TUBE - FUEL VAPOUR	LR132786 TUBE - FUEL VAPOUR	$59.81	1
