Heater/Air Cond.internal Components (Heater Main Unit)

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Heater/Air Cond.Internal Components (Heater Main Unit)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR091737 BOLT AND WASHER - HEX.HEAD $1.80 IN STOCK
Photo Part No Description Price (each) Stock
RYH500290 NUT AND WASHER - HEX. $2.20 To Order
RYH500290 NUT AND WASHER - HEX. $2.20 To Order
Photo Part No Description Price (each) Stock
LR001925 SCREW AND WASHER $1.09 To Order
Photo Part No Description Price (each) Stock
LR157480 CAP $8.23 To Order
Photo Part No Description Price (each) Stock
LR157297 STEPPER MOTOR - HEATER $446.51 To Order
LR157298 STEPPER MOTOR - HEATER $431.40 To Order
Photo Part No Description Price (each) Stock
LR157531 CORE - HEATER $450.99 To Order
LR157532 CORE - HEATER $450.99 To Order
Photo Part No Description Price (each) Stock
LR153572 HEATER & EVAPORATOR UNIT $1,861.27 To Order
LR153571 HEATER & EVAPORATOR UNIT $1,783.81 To Order
LR153570 HEATER & EVAPORATOR UNIT $1,789.22 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR153575 CARRIER - FILTER $24.00 To Order
LR153573 CARRIER - FILTER $24.00 To Order
Photo Part No Description Price (each) Stock
LR157490 VALVE - EVAPORATOR EXPANSION $146.67 To Order
Photo Part No Description Price (each) Stock
LR157509 EVAPORATOR $698.84 To Order
LR157510 EVAPORATOR $644.09 To Order
Photo Part No Description Price (each) Stock
LR157503 WIRE - AIR CONDITIONER $180.41 To Order
LR157505 WIRE - AIR CONDITIONER $180.41 To Order
Photo Part No Description Price (each) Stock
LR153590 PTC HEATER $963.85 To Order
Photo Part No Description Price (each) Stock
LR153598 DEFLECTOR - AIR $73.30 To Order
LR153597 DEFLECTOR - AIR $90.64 To Order
Photo Part No Description Price (each) Stock
LR157550 COVER - HEATER $29.73 To Order
Photo Part No Description Price (each) Stock
LR157478 TUBE - WATER DRAIN $50.08 To Order
Photo Part No Description Price (each) Stock
LR172321 Sensor - Heater Temperature Control $47.79 To Order
Photo Part No Description Price (each) Stock
LR157494 STEPPER MOTOR - HEATER $119.28 To Order
Photo Part No Description Price (each) Stock
LR157643 GROMMET - HEATER $14.38 To Order
Photo Part No Description Price (each) Stock
LR159433 SEAL $8.00 To Order
Photo Part No Description Price (each) Stock
LR157512 NUT - SPECIAL $10.48 To Order
Photo Part No Description Price (each) Stock
LR167247 CARRIER - FILTER $32.05 To Order
Photo Part No Description Price (each) Stock
LR153578 CARRIER - FILTER $20.26 To Order
Photo Part No Description Price (each) Stock
LR153580 CARRIER - FILTER $20.26 To Order
Photo Part No Description Price (each) Stock
LR157481 KIT - "O" RING $4.89 To Order
Photo Part No Description Price (each) Stock
LR157482 KIT - HEATER SEALINGS $17.23 To Order
Photo Part No Description Price (each) Stock
LR157568 NUT $1.62 To Order
Photo Part No Description Price (each) Stock
LR153562 FILTER - POLLEN $46.52 To Order
Photo Part No Description Price (each) Stock
LR153587 FILTER $79.74 IN STOCK
LR153596 FILTER - ODOUR AND PARTICLES $70.88 IN STOCK
View All

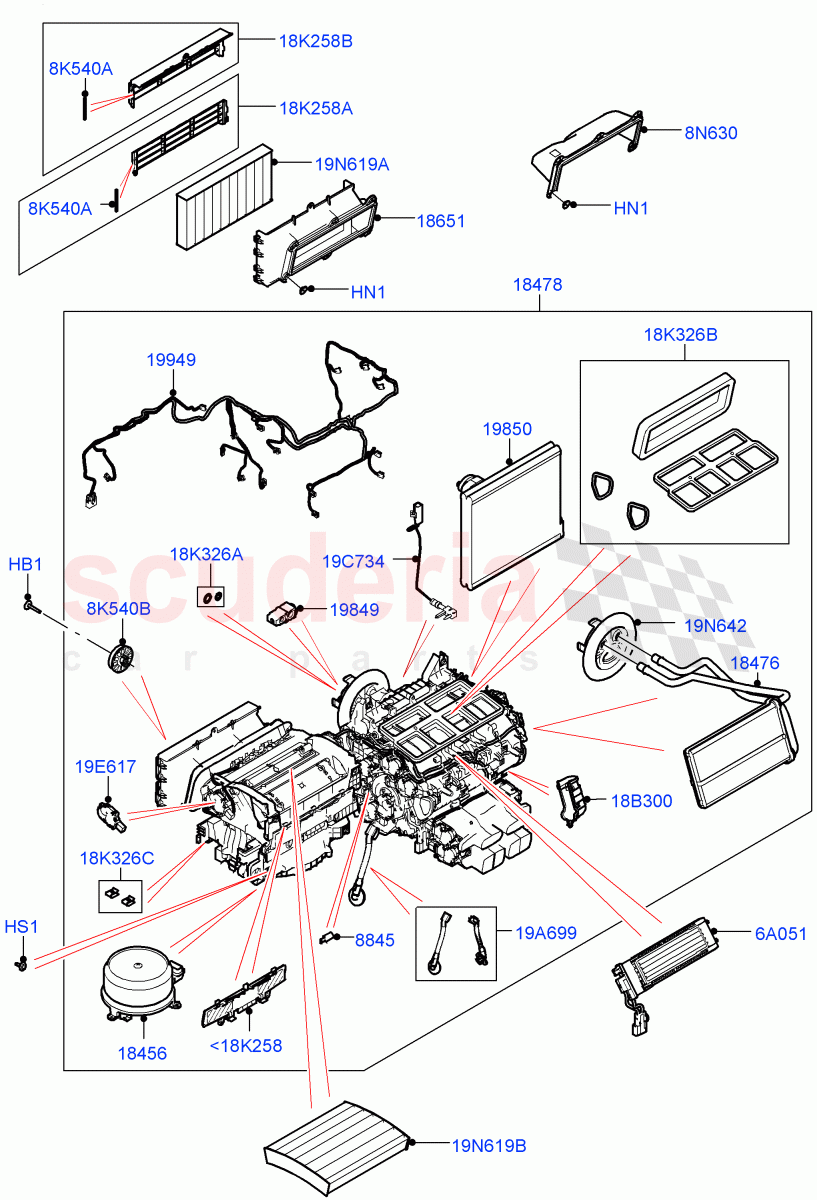

Heater/Air Cond.Internal Components (Heater Main Unit) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<18K258 LR167247
CARRIER - FILTER
Cover 		$32.05 1
HB1 LR091737
BOLT AND WASHER - HEX.HEAD
M6 X 40MM
IN STOCK 		$1.80 1
HN1 RYH500290
NUT AND WASHER - HEX.
Air Purge Ionisation / PM2.5 / M6 		$2.20 6
HN1 RYH500290
NUT AND WASHER - HEX.
Less Cabin Air Quality Ionisation / M6 		$2.20 5
HS1 LR001925
SCREW AND WASHER
M6 X 20MM 		$1.09 7
6A051 LR153590
PTC HEATER
With Ptc Heater 		$963.85 1
8K540A LR159433
SEAL
Air Purge Ionisation / PM2.5 / Cover 		$8.00 4
8K540B LR157512
NUT - SPECIAL
Heater 		$10.48 1
8N630 LR153598
DEFLECTOR - AIR
LHD, Less Cabin Air Quality Ionisation 		$73.30 1
8N630 LR153597
DEFLECTOR - AIR
Less Cabin Air Quality Ionisation, RHD 		$90.64 1
18B300 LR157550
COVER - HEATER
Heater Pipes 		$29.73 1
18K258A LR153578
CARRIER - FILTER
Air Purge Inistin+Pthgn PM 2.5/C02 / Lower 		$20.26 1
18K258B LR153580
CARRIER - FILTER
Air Purge Ionisation / PM2.5 / Upper 		$20.26 1
18K326A LR157481
KIT - "O" RING
O Ring, Set Of 2 Pieces 		$4.89 1
18K326B LR157482
KIT - HEATER SEALINGS
Seal, Set Of 4 Pieces 		$17.23 1
18K326C LR157568
NUT
Set Of 2 Pieces, U-Type 		$1.62 1
19A699 LR157478
TUBE - WATER DRAIN 		$50.08 1
19C734 LR172321
Sensor - Heater Temperature Control 		$47.79 1
19E617 LR157494
STEPPER MOTOR - HEATER 		$119.28 -
19N619A LR153562
FILTER - POLLEN
Air Purge Ionisation / PM2.5 / Exterior 		$46.52 1
19N619B LR153587
FILTER
Air Purge Ionisation / PM2.5 / Interior
IN STOCK 		$79.74 1
19N619B LR153596
FILTER - ODOUR AND PARTICLES
Less Cabin Air Quality Ionisation / Interior
IN STOCK 		$70.88 1
19N642 LR157643
GROMMET - HEATER 		$14.38 1
8845 LR157480
CAP 		$8.23 1
18456 LR157297
STEPPER MOTOR - HEATER
LHD 		$446.51 1
18456 LR157298
STEPPER MOTOR - HEATER
RHD 		$431.40 1
18476 LR157531
CORE - HEATER
LHD / With Pipes 		$450.99 1
18476 LR157532
CORE - HEATER
RHD / With Pipes 		$450.99 1
18478 LR153572
HEATER & EVAPORATOR UNIT
LHD, Premium Air Conditioning-Front/Rear 		$1,861.27 1
18478 LR153571
HEATER & EVAPORATOR UNIT
LHD, With Air Conditioning - Front/Rear 		$1,783.81 1
18478 LR153570
HEATER & EVAPORATOR UNIT
Premium Air Conditioning-Front/Rear, RHD 		$1,789.22 1
18478 LR153569
HEATER & EVAPORATOR UNIT
RHD, With Air Conditioning - Front/Rear 		$1,783.81 1
18651 LR153575
CARRIER - FILTER
Air Purge Ionisation / PM2.5, LHD 		$24.00 1
18651 LR153573
CARRIER - FILTER
Air Purge Ionisation / PM2.5, RHD 		$24.00 1
19849 LR157490
VALVE - EVAPORATOR EXPANSION 		$146.67 1
19850 LR157509
EVAPORATOR
LHD 		$698.84 1
19850 LR157510
EVAPORATOR
RHD 		$644.09 1
19949 LR157503
WIRE - AIR CONDITIONER
Premium Air Conditioning-Front/Rear 		$180.41 1
19949 LR157505
WIRE - AIR CONDITIONER
With Air Conditioning - Front/Rear 		$180.41 1
