Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Air Conditioning Condensr/Compressr (4.4 V8 Turbo Petrol (NC10))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR153879 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR158521 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS106256 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS108306 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR153378 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
LR159067 DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
LR152171 CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
LR086926 SENSOR - REFRIGERANT PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR153390 HOSE - AIR CONDITIONING Enquire To Order
Photo Part No Description Price (each) Stock
LR153864 PLATE - COMPRESSOR MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR153312 COMPRESSOR - AIR CONDITIONING Enquire To Order
Photo Part No Description Price (each) Stock
LR159342 BRACKET - COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR122304 WASHER - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR122305 WASHER - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR124621 WASHER - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR153388 TUBE - COMPRESSOR LINE Enquire To Order
Photo Part No Description Price (each) Stock
LR153387 TUBE - A/C COMPRESSOR Enquire To Order
View All

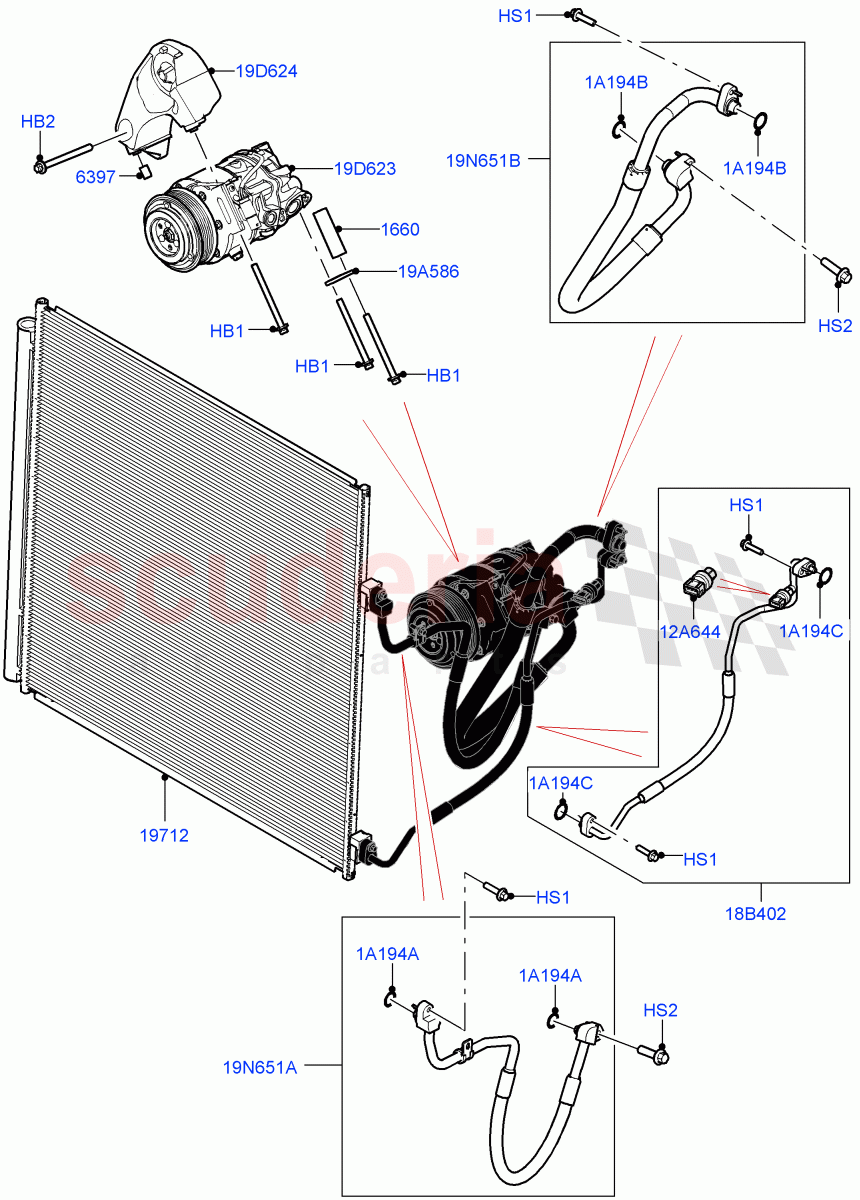

Air Conditioning Condensr/Compressr (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR153879
BOLT
M8 x 95MM 		- 4 Enquire
HB2 LR158521
SCREW
M8 X 75MM 		- 3 Enquire
HS1 FS106256
SCREW
M6 x 25MM 		- 4 Enquire
HS2 FS108306
SCREW
M8 x 30MM 		- 2 Enquire
1A194A LR122304
WASHER - SEALING
12.7MM 		- 2 Enquire
1A194B LR122305
WASHER - SEALING
19.05 MM 		- 2 Enquire
1A194C LR124621
WASHER - SEALING
3/8" 		- 2 Enquire
12A644 LR086926
SENSOR - REFRIGERANT PRESSURE
Pressure Sensor 		- 1 Enquire
18B402 LR153390
HOSE - AIR CONDITIONING
Condenser Outlet 		- 1 Enquire
19A586 LR153864
PLATE - COMPRESSOR MOUNTING 		- 1 Enquire
19D623 LR153312
COMPRESSOR - AIR CONDITIONING 		- 1 Enquire
19D624 LR159342
BRACKET - COMPRESSOR 		- 1 Enquire
19N651A LR153388
TUBE - COMPRESSOR LINE
Condenser Inlet Tube 		- 1 Enquire
19N651B LR153387
TUBE - A/C COMPRESSOR
Compressor Inlet 		- 1 Enquire
1660 LR153378
SPACER 		- 1 Enquire
6397 LR159067
DOWEL 		- 2 Enquire
19712 LR152171
CONDENSER 		- 1 Enquire
