Name: Air Conditioning Condensr/Compressr (3.0L AJ20P6 Petrol High, With Air Conditioning - Front/Rear, 3.0L AJ20D6 Diesel High, 4.4 V8 Turbo Petrol (NC10))
Rating: 5.0 (1 reviews)

Air Conditioning Condensr/Compressr (3.0L AJ20P6 Petrol High, With Air Conditioning - Front/Rear, 3.0L AJ20D6 Diesel High, 4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Air Conditioning Condensr/Compressr (3.0L AJ20P6 Petrol High, With Air Conditioning - Front/Rear,...

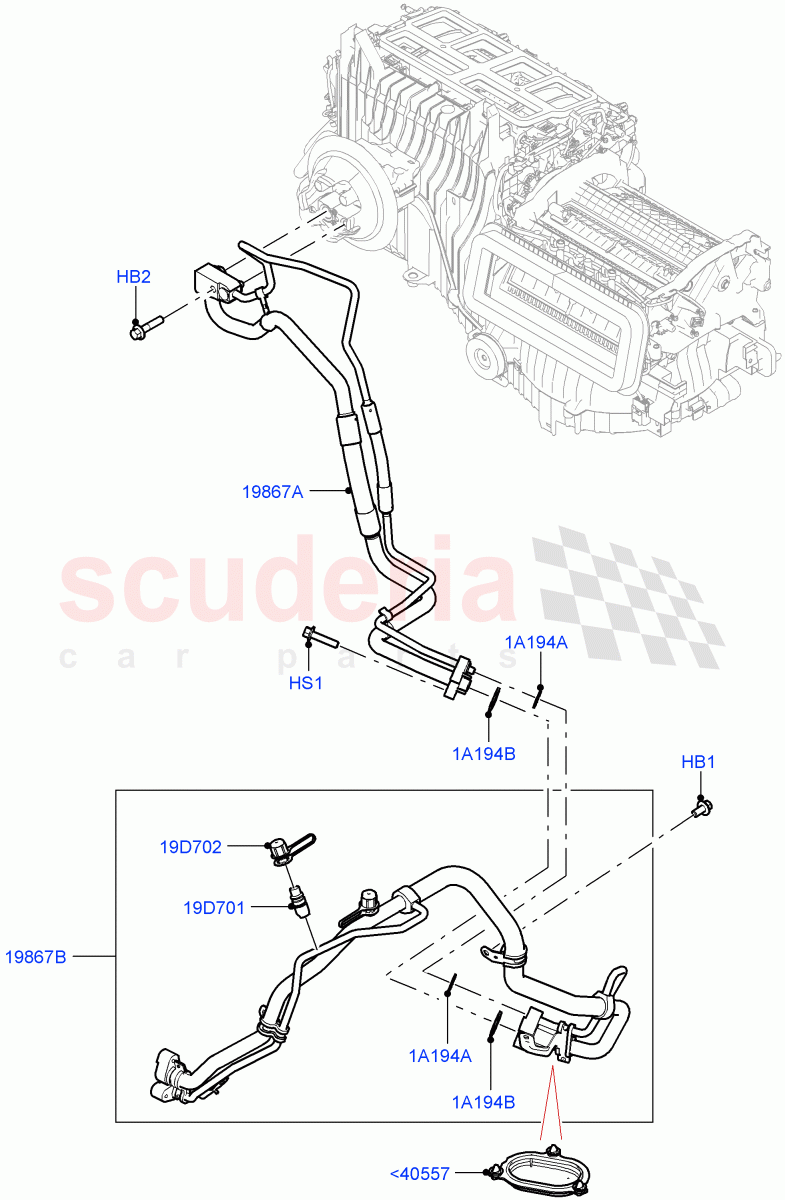

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FB108076	BOLT	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036405	SEAL - RUBBER	$20.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153395	TUBE- A/C EVAPORATOR INLET & OUTLET	$203.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153393	TUBE- A/C EVAPORATOR INLET & OUTLET	$185.93	To Order
	LR153391	TUBE- A/C EVAPORATOR INLET & OUTLET	$199.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131164	VALVE - AIR CONDITIONING	$49.20	To Order
	LR131165	VALVE - AIR CONDITIONING	$51.30	To Order
	JUS500030	VALVE	$14.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133087	CAP - VALVE	$26.12	To Order
	LR133088	CAP - VALVE	$22.91	To Order
	LR133089	CAP - VALVE	$24.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124621	WASHER - SEALING	$15.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124622	WASHER - SEALING	$15.06	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<40557	LR036405	SEAL - RUBBER	LR036405 SEAL - RUBBER	$20.29	1
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM IN STOCK	$0.50	4
HB2	FB108076	BOLT	FB108076 BOLT M8 X 35MM	$0.59	1
HS1	FS106256	SCREW	FS106256 SCREW M6 x 25MM	$0.42	2
1A194A	LR124621	WASHER - SEALING	LR124621 WASHER - SEALING 3/8"	$15.06	2
1A194B	LR124622	WASHER - SEALING	LR124622 WASHER - SEALING 15.88MM	$15.06	2
19D701	LR131164	VALVE - AIR CONDITIONING	LR131164 VALVE - AIR CONDITIONING Air Con Refrigerant-HF01234YF / High Pressure Charge Port	$49.20	1
19D701	LR131165	VALVE - AIR CONDITIONING	LR131165 VALVE - AIR CONDITIONING Air Con Refrigerant-HF01234YF / Low Pressure Charge Port	$51.30	1
19D701	JUS500030	VALVE	JUS500030 VALVE Air Conditioning Refrigerant-R134A / High Pressure Charge Port, Low Pressure Port	$14.82	2
19D702	LR133087	CAP - VALVE	LR133087 CAP - VALVE Air Conditioning Refrigerant-R134A / High Pressure Charge Port, Low Pressure Port	$26.12	2
19D702	LR133088	CAP - VALVE	LR133088 CAP - VALVE Air Con Refrigerant-HF01234YF / High Pressure Charge Port	$22.91	1
19D702	LR133089	CAP - VALVE	LR133089 CAP - VALVE Air Con Refrigerant-HF01234YF / Low Pressure Port	$24.16	1
19867A	LR153395	TUBE- A/C EVAPORATOR INLET & OUTLET	LR153395 TUBE- A/C EVAPORATOR INLET & OUTLET To HVAC Unit	$203.44	1
19867B	LR153393	TUBE- A/C EVAPORATOR INLET & OUTLET	LR153393 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / To Compressor, To Condenser	$185.93	1
19867B	LR153391	TUBE- A/C EVAPORATOR INLET & OUTLET	LR153391 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / To Compressor, To Condenser	$199.35	1
