Name: Inlet Manifold (4.4 V8 Turbo Petrol (NC10))
Rating: 5.0 (1 reviews)

View All

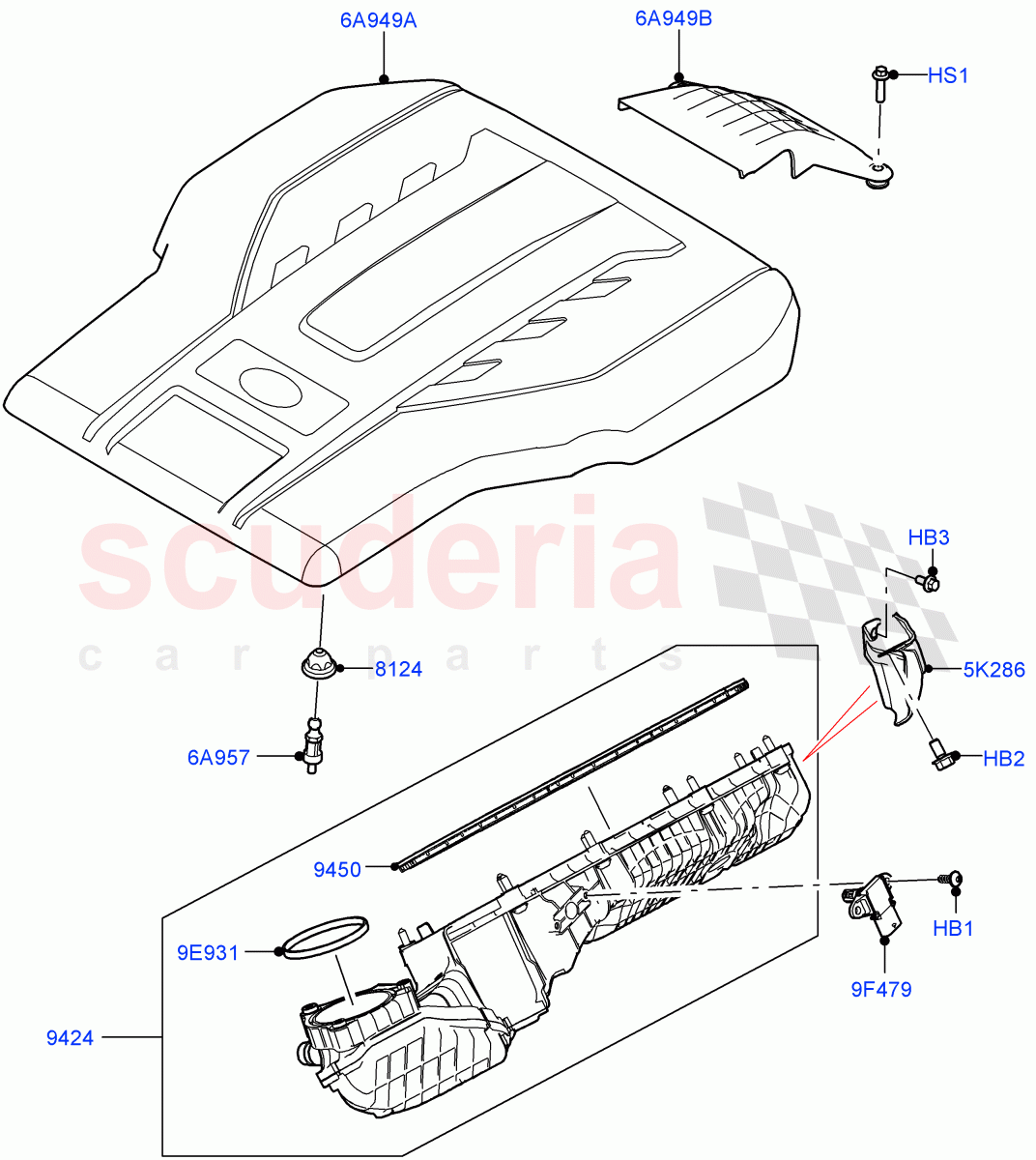

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158543	SCREW	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138364	BOLT	$4.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.65	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159076	INSULATOR	$12.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158592	GASKET - INTAKE MANIFOLD	$46.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154400	STUD	$3.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159842	GASKET	$16.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159322	SENSOR	$128.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151708	COVER - ENGINE TOP	$278.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159964	COVER - ENGINE TOP	$69.42	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR158543	SCREW	LR158543 SCREW K50 x 14 mm, Sensor - Air Charge Temperature, Thread Forming	$2.70	4
HB2	LR138364	BOLT	LR138364 BOLT Heatshield, M8 X 16	$4.47	2
HB3	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD Heatshield, M6 X 14MM	$2.65	2
HS1	FS106256	SCREW	FS106256 SCREW Engine Cover Rear, M6 x 25MM	$0.42	2
5K286	LR162989	HEAT SHIELD	LR162989 HEAT SHIELD LH	$16.91	1
5K286	LR162990	HEAT SHIELD	LR162990 HEAT SHIELD RH	$16.91	1
6A949A	LR151708	COVER - ENGINE TOP	LR151708 COVER - ENGINE TOP Centre, Engine	$278.47	1
6A949B	LR159964	COVER - ENGINE TOP	LR159964 COVER - ENGINE TOP Engine, Rear	$69.42	1
6A957	LR154400	STUD	LR154400 STUD Ball Stud, Engine Cover	$3.71	1
9E931	LR159842	GASKET	LR159842 GASKET Throttle Body To Intake	$16.88	2
9F479	LR159322	SENSOR	LR159322 SENSOR Pressure, Sensor - Air Charge Temperature	$128.94	2
8124	LR159076	INSULATOR	LR159076 INSULATOR Cap	$12.02	3
9424	LR158560	MANIFOLD - INLET	LR158560 MANIFOLD - INLET RH Cylinder Bank	$785.86	1
9424	LR158559	MANIFOLD - INLET	LR158559 MANIFOLD - INLET LH Cylinder Bank	$797.64	1
9450	LR158592	GASKET - INTAKE MANIFOLD	LR158592 GASKET - INTAKE MANIFOLD Inlet Manifold	$46.98	2

Inlet Manifold (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]
