Cylinder Head (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Cylinder Head (4.4 V8 Turbo Petrol (NC10))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR158703 STUD $7.28 To Order
Photo Part No Description Price (each) Stock
LR158696 BOLT $4.08 To Order
Photo Part No Description Price (each) Stock
LR158567 BOLT $2.98 To Order
Photo Part No Description Price (each) Stock
LR158343 PLUG - BLANKING $8.12 To Order
Photo Part No Description Price (each) Stock
LR170360 SCREW $1.12 To Order
Photo Part No Description Price (each) Stock
LR158341 SUPPORT $23.93 To Order
Photo Part No Description Price (each) Stock
LR158340 RETAINER - SPRING $29.73 To Order
Photo Part No Description Price (each) Stock
LR158392 CYLINDER HEAD $6,544.64 To Order
LR158393 CYLINDER HEAD $6,544.64 To Order
Photo Part No Description Price (each) Stock
LR158395 GASKET-CYLINDER HEAD $154.85 To Order
LR158396 GASKET-CYLINDER HEAD $210.21 To Order
Photo Part No Description Price (each) Stock
LR158401 CYLINDER HEAD BOLT SET $128.41 To Order
Photo Part No Description Price (each) Stock
LR158726 TAPPET - VALVE $31.27 To Order
Photo Part No Description Price (each) Stock
LR158773 VALVE - EXHAUST $52.27 To Order
Photo Part No Description Price (each) Stock
LR158772 VALVE - INLET $46.95 To Order
Photo Part No Description Price (each) Stock
LR158399 Spring - Valve $43.02 To Order
Photo Part No Description Price (each) Stock
LR158398 RETAINER - VALVE SPRING $18.67 To Order
Photo Part No Description Price (each) Stock
LR158397 COLLET - VALVE SPRING RETAINER $3.24 To Order
Photo Part No Description Price (each) Stock
LR158347 SEAL - VALVE STEM $64.86 To Order
Photo Part No Description Price (each) Stock
LR158421 LEVER - VALVE CONTROL $66.97 To Order
LR158419 LEVER - VALVE CONTROL $66.97 To Order
LR158418 LEVER - VALVE CONTROL $79.45 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR158391 ARM - VALVE ROCKER $81.12 To Order
Photo Part No Description Price (each) Stock
LR158385 ARM - VALVE ROCKER $81.12 To Order
LR158381 ARM - VALVE ROCKER $81.12 To Order
LR158376 ARM - VALVE ROCKER $81.12 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR158229 WASHER $10.08 To Order
View All

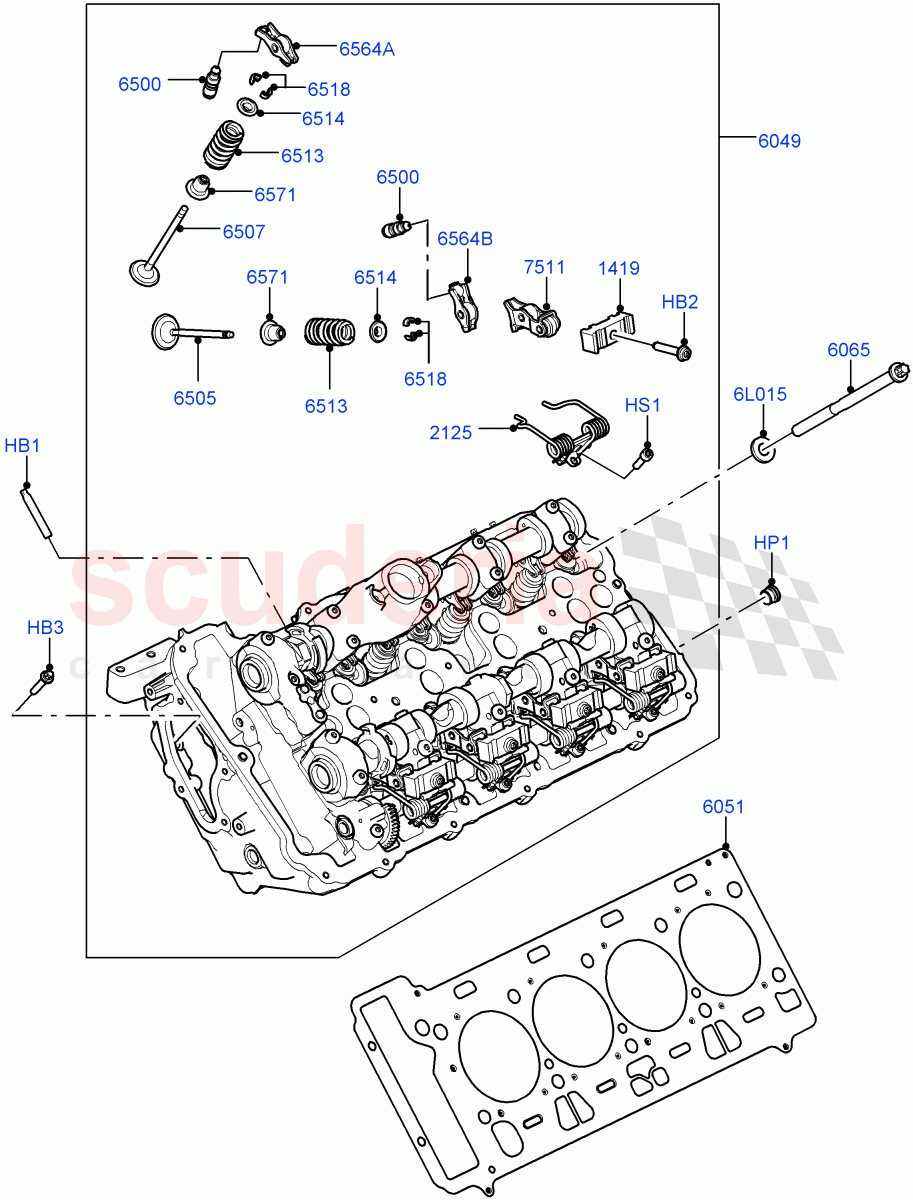

Cylinder Head (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR158703
STUD
M8 x 50 - 10.9 		$7.28 16
HB2 LR158696
BOLT
M7 x 35MM 		$4.08 8
HB3 LR158567
BOLT
M8 x 30MM 		$2.98 4
HP1 LR158343
PLUG - BLANKING
M10 x 1.0 		$8.12 2
HS1 LR170360
SCREW
M6 X 20MM, Spring 		$1.12 1
6L015 LR158229
WASHER 		$10.08 20
1419 LR158341
SUPPORT 		$23.93 8
2125 LR158340
RETAINER - SPRING
Retainer 		$29.73 8
6049 LR158392
CYLINDER HEAD
RH, Includes Camshafts 		$6,544.64 1
6049 LR158393
CYLINDER HEAD
LH, Includes Camshafts 		$6,544.64 1
6051 LR158395
GASKET-CYLINDER HEAD
0.80MM, Grade 1 		$154.85 2
6051 LR158396
GASKET-CYLINDER HEAD
1.1MM, Grade 2 		$210.21 2
6065 LR158401
CYLINDER HEAD BOLT SET
Kit/Set 		$128.41 2
6500 LR158726
TAPPET - VALVE 		$31.27 32
6505 LR158773
VALVE - EXHAUST 		$52.27 16
6507 LR158772
VALVE - INLET 		$46.95 16
6513 LR158399
Spring - Valve 		$43.02 32
6514 LR158398
RETAINER - VALVE SPRING 		$18.67 32
6518 LR158397
COLLET - VALVE SPRING RETAINER 		$3.24 64
6564A LR158391
ARM - VALVE ROCKER
Intake Side 		$81.12 16
6564B LR158385
ARM - VALVE ROCKER
#1, EXHAUST SIDE 		$81.12 16
6564B LR158381
ARM - VALVE ROCKER
#2, EXHAUST SIDE 		$81.12 16
6564B LR158376
ARM - VALVE ROCKER
#3, EXHAUST SIDE 		$81.12 16
6564B LR158375
ARM - VALVE ROCKER
#4, EXHAUST SIDE 		$81.12 16
6564B LR158374
ARM - VALVE ROCKER
#5, EXHAUST SIDE 		$81.12 16
6571 LR158347
SEAL - VALVE STEM
Set Of 16 Pieces 		$64.86 2
7511 LR158421
LEVER - VALVE CONTROL
#0, Vanos - Intermediate 		$66.97 16
7511 LR158419
LEVER - VALVE CONTROL
#1, Vanos - Intermediate 		$66.97 16
7511 LR158418
LEVER - VALVE CONTROL
#2, Vanos - Intermediate 		$79.45 16
7511 LR158417
LEVER - VALVE CONTROL
#3, Vanos - Intermediate 		$79.45 16
7511 LR158415
LEVER - VALVE CONTROL
#4, Vanos - Intermediate 		$79.45 16
7511 LR158411
LEVER - VALVE CONTROL
#5, Vanos - Intermediate 		$44.60 16
