Name: Cylinder Block And Plugs (4.4 V8 Turbo Petrol (NC10))
Rating: 4.6 (1 reviews)

View All

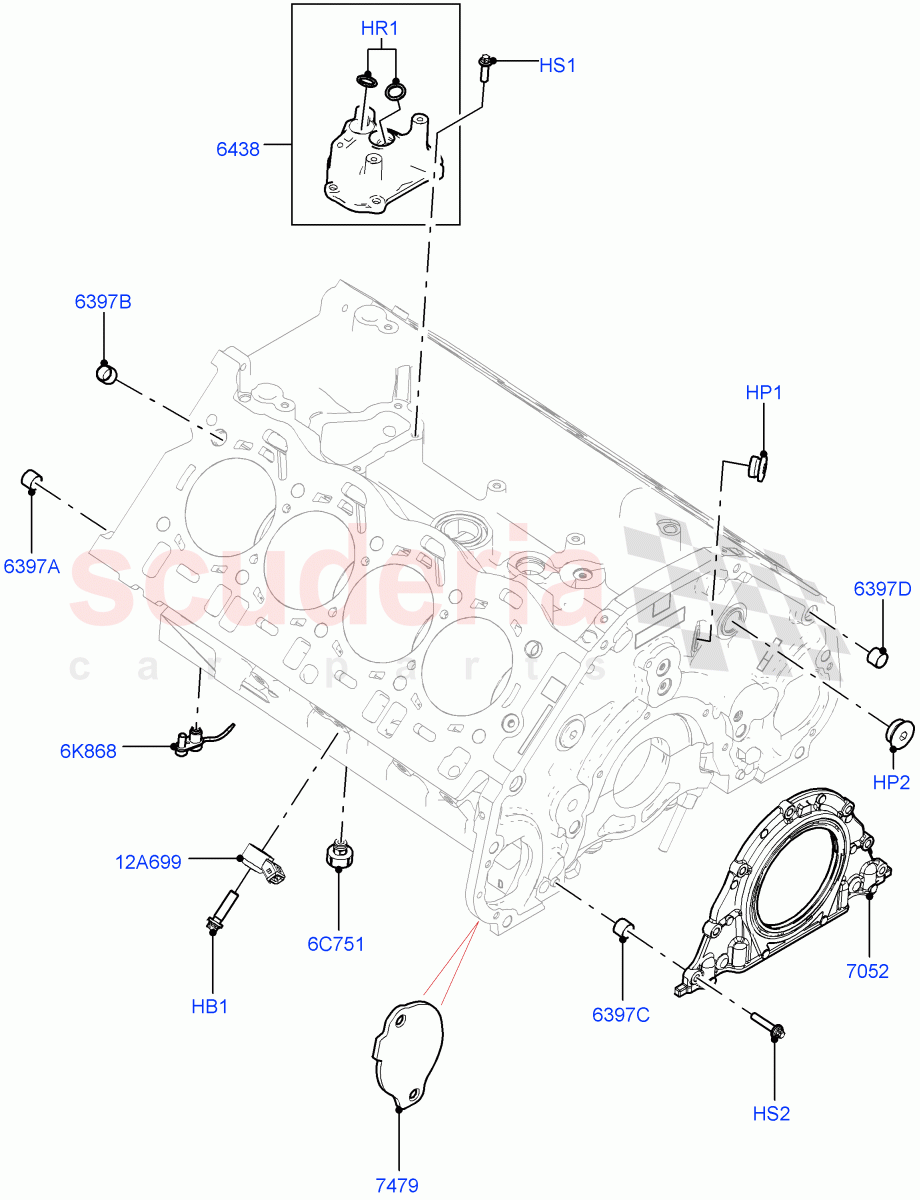

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR170334	BOLT	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158342	PLUG - BLANKING	$8.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158344	PLUG - BLANKING	$8.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158248	O-RING	$5.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR170376	SCREW	$2.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR170337	SCREW	$2.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158731	COVER	$227.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158690	RETAINER AND SEAL - CRANKSHAFT	$121.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151634	PLATE - BLANKING	$104.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158430	DOWEL	$5.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158424	DOWEL	$5.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158432	DOWEL	$5.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151662	DOWEL	$5.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158657	VALVE - NON RETURN	$51.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158605	NOZZLE - PISTON COOLING	$33.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158806	SENSOR - ENGINE KNOCK	$117.18	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR170334	BOLT	LR170334 BOLT Anti-Knock Sensor, M8 x 30 mm	$1.39	4
HP1	LR158342	PLUG - BLANKING	LR158342 PLUG - BLANKING M18	$8.12	1
HP2	LR158344	PLUG - BLANKING	LR158344 PLUG - BLANKING M22	$8.12	2
HR1	LR158248	O-RING	LR158248 O-RING 13.8 x 2.64 mm, Hose - Oil Return	$5.25	2
HS1	LR170376	SCREW	LR170376 SCREW Cover, M6 X 20MM, Turbo Oil Return	$2.15	4
HS2	LR170337	SCREW	LR170337 SCREW Retainer - Seal	$2.51	7
6C751	LR158657	VALVE - NON RETURN	LR158657 VALVE - NON RETURN Non-Return	$51.23	1
6K868	LR158605	NOZZLE - PISTON COOLING	LR158605 NOZZLE - PISTON COOLING	$33.58	8
12A699	LR158806	SENSOR - ENGINE KNOCK	LR158806 SENSOR - ENGINE KNOCK	$117.18	4
6397A	LR158430	DOWEL	LR158430 DOWEL 10.5MM, Timing Chain Cover	$5.42	2
6397B	LR158424	DOWEL	LR158424 DOWEL Cylinder Head,	$5.42	4
6397C	LR158432	DOWEL	LR158432 DOWEL	$5.42	2
6397D	LR151662	DOWEL	LR151662 DOWEL	$5.63	2
6438	LR158731	COVER	LR158731 COVER Turbo Oil Return	$227.30	1
7052	LR158690	RETAINER AND SEAL - CRANKSHAFT	LR158690 RETAINER AND SEAL - CRANKSHAFT Crankshaft, Retainer - Seal	$121.45	1
7479	LR151634	PLATE - BLANKING	LR151634 PLATE - BLANKING	$104.37	1

Cylinder Block And Plugs (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]
