Fuel Tank & Related Parts (3.0L AJ20P6 Petrol High, Fuel Tank Filler Neck - Unleaded) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Fuel Tank & Related Parts (3.0L AJ20P6 Petrol High, Fuel Tank Filler Neck - Unleaded)

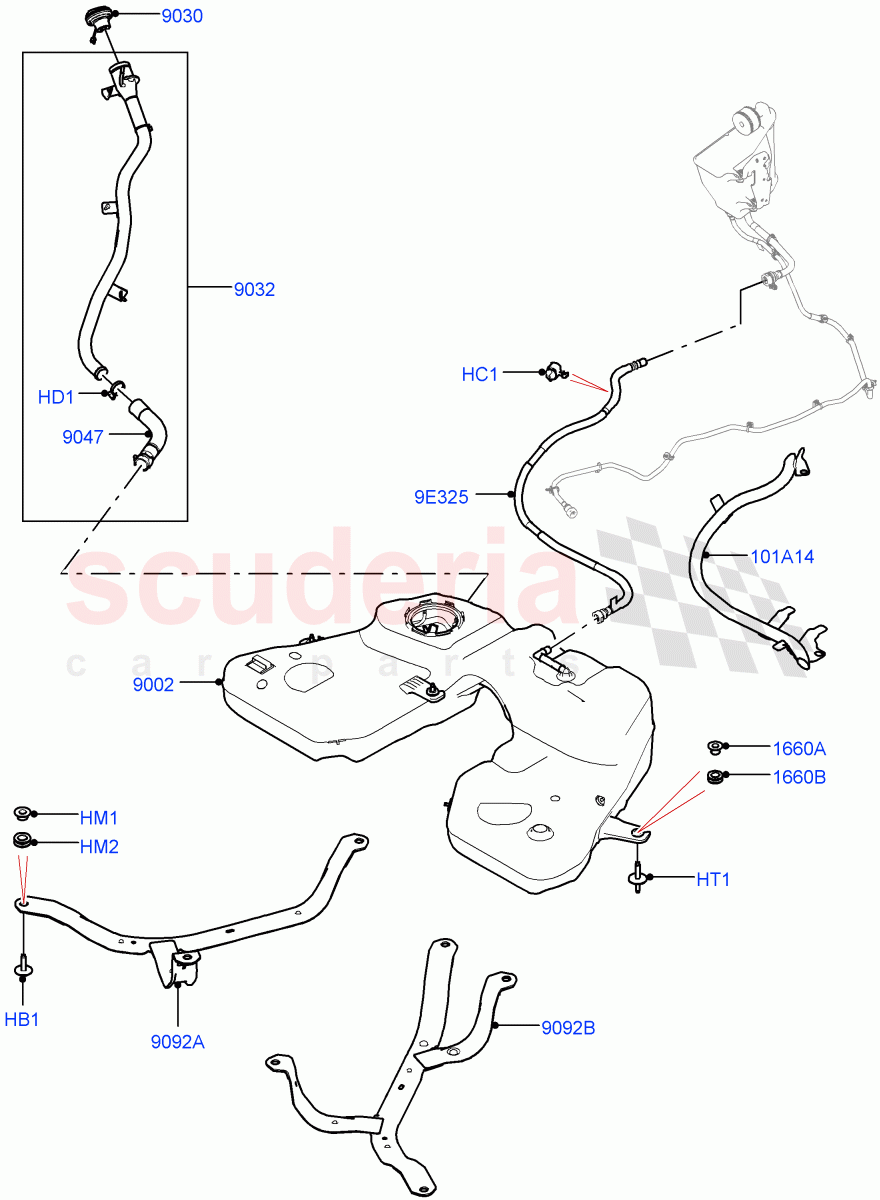

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR163798	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161950	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYF000020	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYD000020	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094016	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152240	TANK - FUEL	Enquire	To Order
	LR174036	Tank - Fuel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138718	CAP - FUEL TANK FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152383	PIPE - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152488	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152226	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152225	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152255	STRAP - FUEL TANK	Enquire	To Order
	LR174034	Strap - Fuel Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152258	STRAP - FUEL TANK	Enquire	To Order
	LR174035	Strap - Fuel Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152054	TUBE - VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154681	REINFORCEMENT - FUEL TANK FILL PIPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR163798	BOLT	LR163798 BOLT Fuel Tank Strap, M10 x 43	-	7	Enquire
HC1	LR161950	CLIP	LR161950 CLIP Breather Pipe	-	1	Enquire
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9	-	1	Enquire
HM1	WYF000020	SPACER	WYF000020 SPACER Fuel Tank Strap, Inner	-	7	Enquire
HM2	WYD000020	GROMMET	WYD000020 GROMMET Fuel Tank Strap, Outer	-	7	Enquire
HT1	LR094016	STUD	LR094016 STUD Hexagonal Head, M10 X 41 + M8 X 22	-	4	Enquire
9E325	LR152054	TUBE - VENTILATION	LR152054 TUBE - VENTILATION Charcoal Cannister	-	1	Enquire
101A14	LR154681	REINFORCEMENT - FUEL TANK FILL PIPE	LR154681 REINFORCEMENT - FUEL TANK FILL PIPE	-	1	Enquire
1660A	LR152226	SPACER	LR152226 SPACER Fuel Tank, Inner	-	3	Enquire
1660B	LR152225	SPACER	LR152225 SPACER Fuel Tank, Outer	-	3	Enquire
9002	LR152240	TANK - FUEL	LR152240 TANK - FUEL To: NA000684	-	1	Enquire
9002	LR174036	Tank - Fuel	LR174036 Tank - Fuel From: NA000685	-	1	Enquire
9030	LR138718	CAP - FUEL TANK FILLER	LR138718 CAP - FUEL TANK FILLER	-	1	Enquire
9032	LR152383	PIPE - FUEL FILLER	LR152383 PIPE - FUEL FILLER Complete Assembly	-	1	Enquire
9047	LR152488	HOSE - FILLER PIPE	LR152488 HOSE - FILLER PIPE Connects To Fuel Tank	-	1	Enquire
9092A	LR152255	STRAP - FUEL TANK	LR152255 STRAP - FUEL TANK RH / To: NA000684	-	1	Enquire
9092A	LR174034	Strap - Fuel Tank	LR174034 Strap - Fuel Tank RH / From: NA000685	-	1	Enquire
9092B	LR152258	STRAP - FUEL TANK	LR152258 STRAP - FUEL TANK LH / To: NA000684	-	1	Enquire
9092B	LR174035	Strap - Fuel Tank	LR174035 Strap - Fuel Tank LH / From: NA000685	-	1	Enquire
