Carbon Canister (3.0L AJ20P6 Petrol High, Petrol Tank With Leak Detection, Pet Tank With Leak Det - Lrg Filter) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Carbon Canister (3.0L AJ20P6 Petrol High, Petrol Tank With Leak Detection, Pet Tank With Leak Det -...

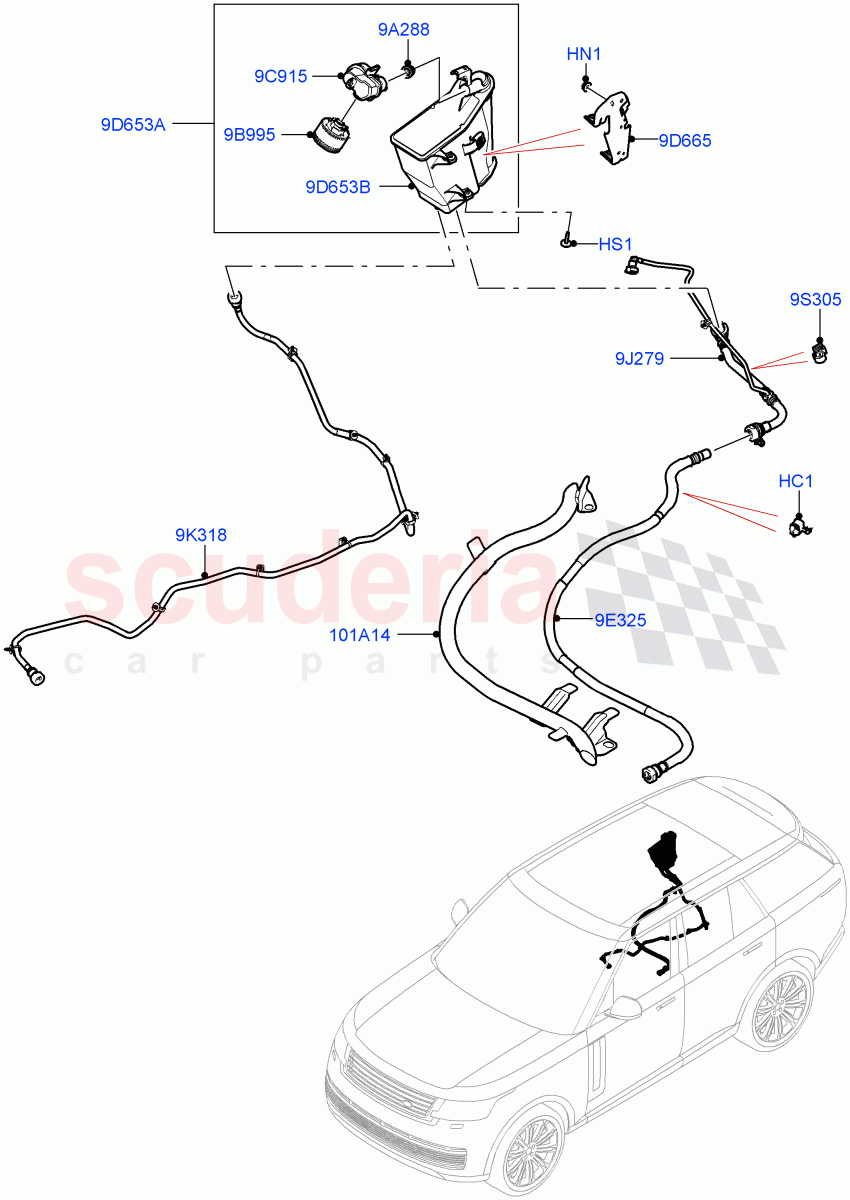

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR161950	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157141	INSULATOR - CHARCOAL CANISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155104	FILTER - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174757	VALVE - CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152109	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152054	TUBE - VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152031	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152132	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR165097	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154681	REINFORCEMENT - FUEL TANK FILL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157037	CANNISTER - FUEL VAPOUR STORE	Enquire	To Order
	LR157038	CANNISTER - FUEL VAPOUR STORE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157046	RESERVOIR	Enquire	To Order
	LR157048	RESERVOIR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR161950	CLIP	LR161950 CLIP Breather Pipe	-	1	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6	-	3	Enquire
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30	-	2	Enquire
9A288	LR157141	INSULATOR - CHARCOAL CANISTER	LR157141 INSULATOR - CHARCOAL CANISTER Grommet	-	1	Enquire
9B995	LR155104	FILTER - FUEL	LR155104 FILTER - FUEL	-	1	Enquire
9C915	LR174757	VALVE - CONTROL	LR174757 VALVE - CONTROL	-	1	Enquire
9D653A	LR157037	CANNISTER - FUEL VAPOUR STORE	LR157037 CANNISTER - FUEL VAPOUR STORE Petrol Tank With Leak Detection / Charcoal Cannister, Complete Assembly	-	1	Enquire
9D653A	LR157038	CANNISTER - FUEL VAPOUR STORE	LR157038 CANNISTER - FUEL VAPOUR STORE Pet Tank With Leak Det - Lrg Filter / Charcoal Cannister, Complete Assembly	-	1	Enquire
9D653B	LR157046	RESERVOIR	LR157046 RESERVOIR Petrol Tank With Leak Detection / Charcoal Cannister	-	1	Enquire
9D653B	LR157048	RESERVOIR	LR157048 RESERVOIR Pet Tank With Leak Det - Lrg Filter / Charcoal Cannister	-	1	Enquire
9D665	LR152109	BRACKET	LR152109 BRACKET Charcoal Cannister	-	1	Enquire
9E325	LR152054	TUBE - VENTILATION	LR152054 TUBE - VENTILATION Connects To Fuel Tank	-	1	Enquire
9J279	LR152031	TUBE - FUEL VAPOUR	LR152031 TUBE - FUEL VAPOUR Breather Pipe	-	1	Enquire
9K318	LR152132	TUBE - FUEL VAPOUR	LR152132 TUBE - FUEL VAPOUR	-	1	Enquire
9S305	LR165097	CLIP	LR165097 CLIP Vapour Line	-	1	Enquire
101A14	LR154681	REINFORCEMENT - FUEL TANK FILL PIPE	LR154681 REINFORCEMENT - FUEL TANK FILL PIPE	-	1	Enquire
