Name: Carbon Canister (3.0L AJ20P6 Petrol High, Pet Tank W/O Leak Det - Std Filter)
Rating: 4.2 (1 reviews)

View All

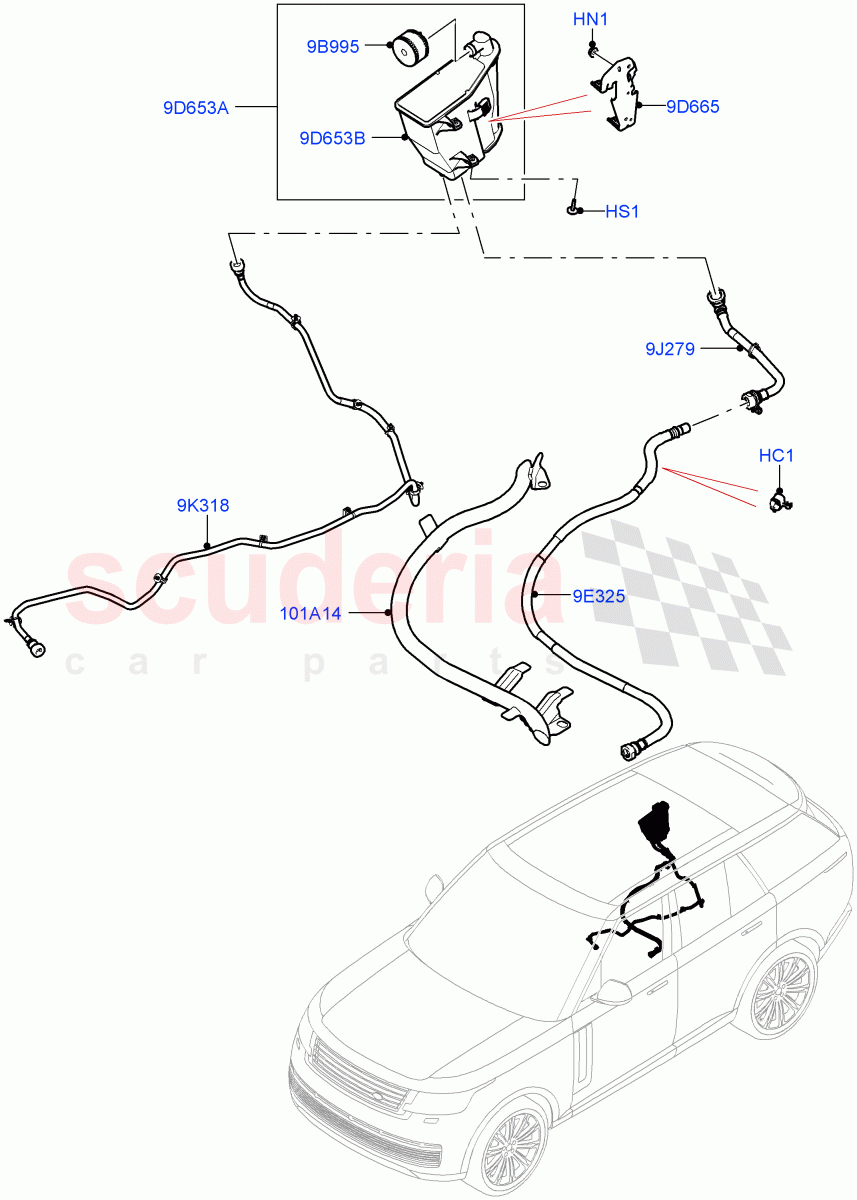

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR161950	CLIP	$2.32	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155104	FILTER - FUEL	$34.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152109	BRACKET	$15.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152054	TUBE - VENTILATION	$48.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152032	TUBE - FUEL VAPOUR	$54.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152132	TUBE - FUEL VAPOUR	$50.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154681	REINFORCEMENT - FUEL TANK FILL PIPE	$59.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157036	CANNISTER - FUEL VAPOUR STORE	$502.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157043	RESERVOIR	$198.93	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR161950	CLIP	LR161950 CLIP Breather Pipe	$2.32	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.45	3
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30	$4.03	2
9B995	LR155104	FILTER - FUEL	LR155104 FILTER - FUEL	$34.37	1
9D653A	LR157036	CANNISTER - FUEL VAPOUR STORE	LR157036 CANNISTER - FUEL VAPOUR STORE Charcoal Cannister, Complete Assembly	$502.50	1
9D653B	LR157043	RESERVOIR	LR157043 RESERVOIR Charcoal Cannister	$198.93	1
9D665	LR152109	BRACKET	LR152109 BRACKET Charcoal Cannister	$15.45	1
9E325	LR152054	TUBE - VENTILATION	LR152054 TUBE - VENTILATION Connects To Fuel Tank	$48.44	1
9J279	LR152032	TUBE - FUEL VAPOUR	LR152032 TUBE - FUEL VAPOUR Breather Pipe, Upper	$54.77	1
9K318	LR152132	TUBE - FUEL VAPOUR	LR152132 TUBE - FUEL VAPOUR	$50.33	1
101A14	LR154681	REINFORCEMENT - FUEL TANK FILL PIPE	LR154681 REINFORCEMENT - FUEL TANK FILL PIPE	$59.85	1

Carbon Canister (3.0L Aj20P6 Petrol High, Pet Tank W/O Leak Det - Std Filter)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]
