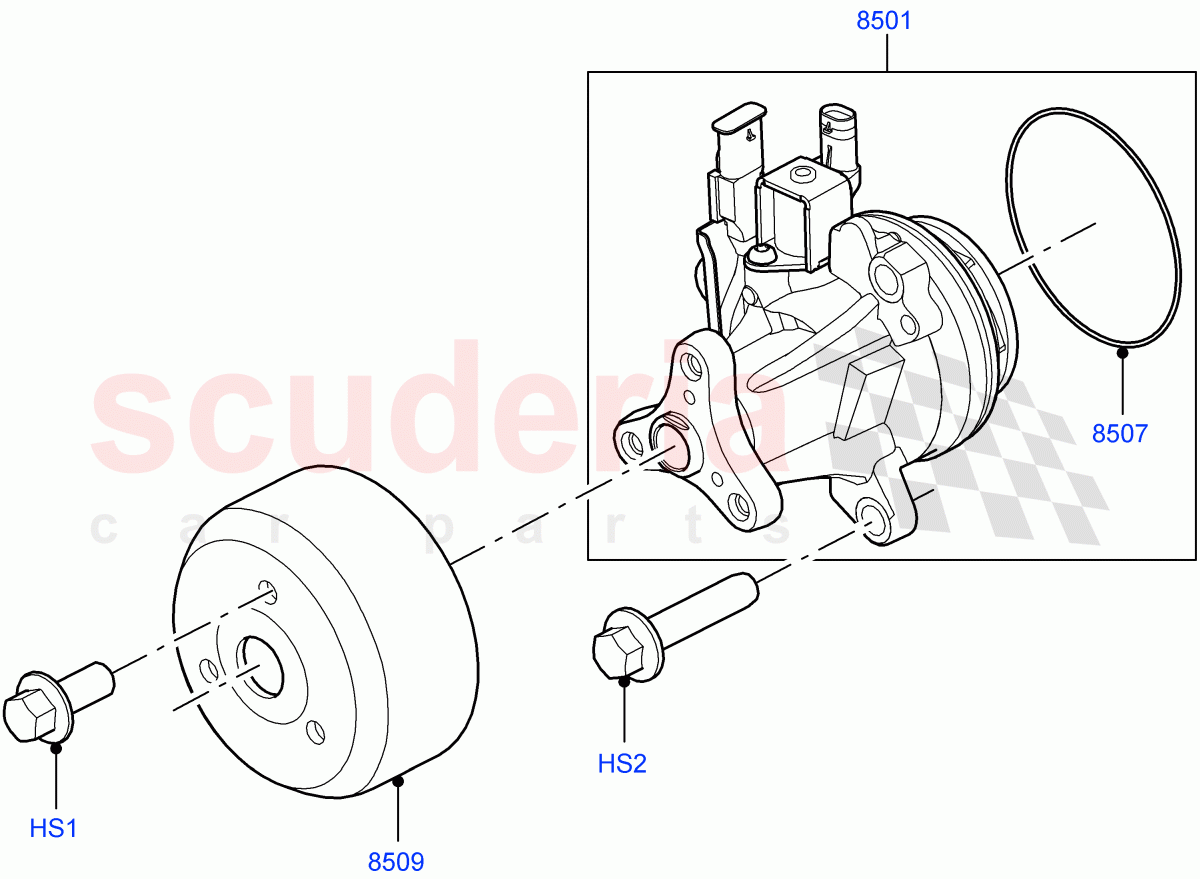

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108186	SCREW - SOCKET HEAD CAP	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.26	To Order

Photo	Part No	Description	Price (each)	Stock
	104123463	PUMP - WATER	$329.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131224	GASKET - WATER PUMP	$17.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR123071	PULLEY - WATER PUMP	$88.75	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	FS108186	SCREW - SOCKET HEAD CAP	FS108186 SCREW - SOCKET HEAD CAP M8 x 18MM, Pulley, Water Pump	$2.16	3
HS2	LR073676	SCREW	LR073676 SCREW M8 x 35mm, To Engine, Water Pump	$2.26	1
8501	104123463	PUMP - WATER	104123463 PUMP - WATER	$329.35	1
8507	LR131224	GASKET - WATER PUMP IN STOCK	LR131224 GASKET - WATER PUMP IN STOCK	$17.32	1
8509	LR123071	PULLEY - WATER PUMP	LR123071 PULLEY - WATER PUMP	$88.75	1
