Thermostat/Housing & Related Parts (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Thermostat/Housing & Related Parts (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV)

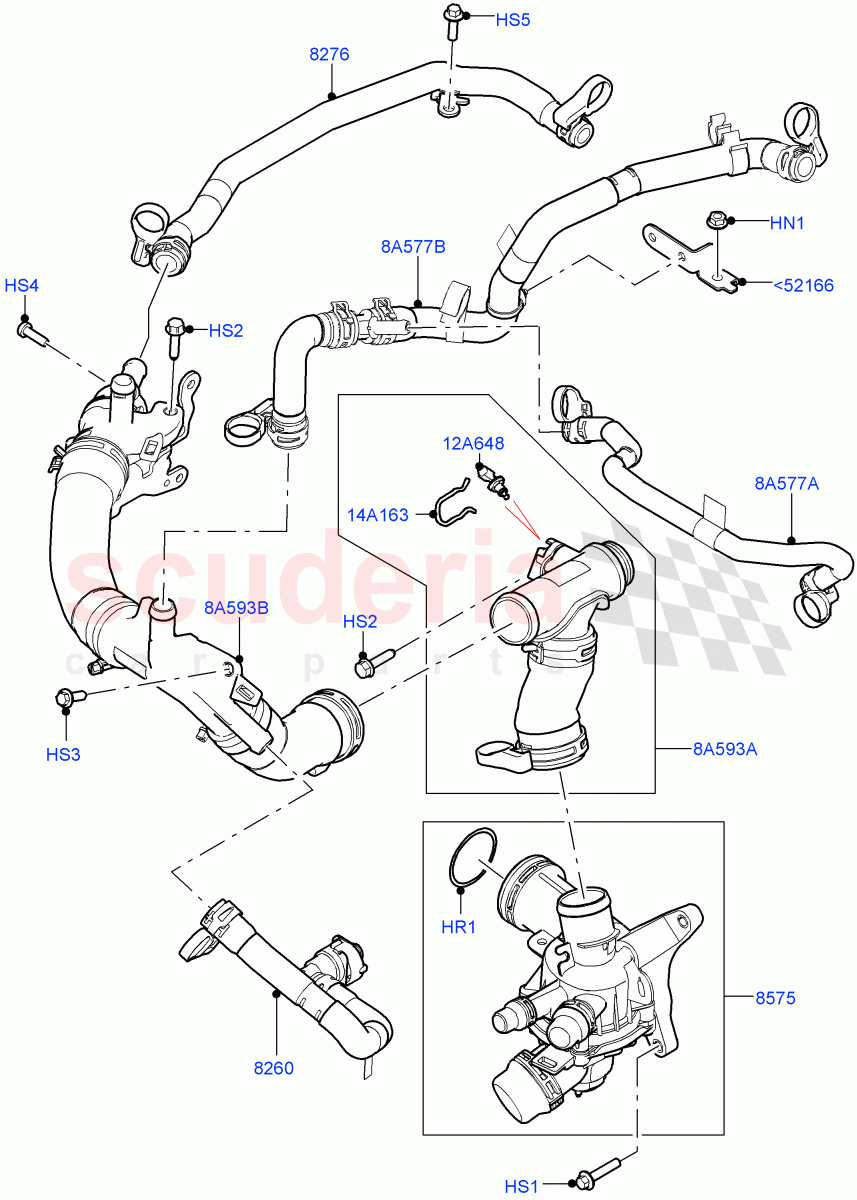

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140792	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128486	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155605	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137626	HOSE - COOLANT BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121420	THERMOSTAT AND HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141764	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105610	RETAINER - SENSOR CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121415	HOSE - THROTTLE BODY HEATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136428	HOSE - WATER	Enquire	To Order
	LR174769	Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121447	TUBE - BY-PASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121446	TUBE - BY-PASS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<52166	LR141764	BRACKET - SUPPORT	LR141764 BRACKET - SUPPORT	-	1	Enquire
HN1	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6	-	1	Enquire
HR1	LR140792	O-RING	LR140792 O-RING	-	1	Enquire
HS1	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM, To Thermostat	-	2	Enquire
HS2	LR128486	SCREW	LR128486 SCREW M6 x 25MM, Tube Water By-Pass	-	2	Enquire
HS3	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM, Tube Water By-Pass	-	2	Enquire
HS4	LR073720	SCREW	LR073720 SCREW Bracket, M6 X 20MM	-	1	Enquire
HS5	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM	-	1	Enquire
8A577A	LR121415	HOSE - THROTTLE BODY HEATER OUTLET	LR121415 HOSE - THROTTLE BODY HEATER OUTLET Hose - Throttle Body Heater, Outlet	-	1	Enquire
8A577B	LR136428	HOSE - WATER	LR136428 HOSE - WATER Outlet, Water Charge Air Cooler / To: NA999999	-	1	Enquire
8A577B	LR174769	Hose	LR174769 Hose Outlet, Water Charge Air Cooler / From: PA000001	-	1	Enquire
8A593A	LR121447	TUBE - BY-PASS	LR121447 TUBE - BY-PASS "T" Shaped	-	1	Enquire
8A593B	LR121446	TUBE - BY-PASS	LR121446 TUBE - BY-PASS Tube Water By-Pass	-	1	Enquire
12A648	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	LR105595 SENSOR - ENGINE COOLANT TEMPERATURE	-	1	Enquire
14A163	LR105610	RETAINER - SENSOR CLIP	LR105610 RETAINER - SENSOR CLIP	-	1	Enquire
8260	LR155605	HOSE	LR155605 HOSE To Oil Cooler	-	1	Enquire
8276	LR137626	HOSE - COOLANT BLEED	LR137626 HOSE - COOLANT BLEED To Cylinder Head	-	1	Enquire
8575	LR121420	THERMOSTAT AND HOUSING	LR121420 THERMOSTAT AND HOUSING Assembly	-	1	Enquire
