Cooling System Pipes And Hoses (3.0L AJ20P6 Petrol High)

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Cooling System Pipes And Hoses (3.0L AJ20P6 Petrol High)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR175780 Clip Enquire To Order
Photo Part No Description Price (each) Stock
LR175782 Clip Enquire To Order
Photo Part No Description Price (each) Stock
LR175726 Plug Enquire To Order
Photo Part No Description Price (each) Stock
LR175725 Plug Enquire To Order
Photo Part No Description Price (each) Stock
LR175790 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
LR175788 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR151572 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR085933 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR151527 TUBE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR151598 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR151557 HOSE - COOLING SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR151607 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR151678 HOSE - WATER Enquire To Order
LR174697 Hose - Water Enquire To Order
Photo Part No Description Price (each) Stock
LR151636 HOSE - COOLANT BLEED Enquire To Order
Photo Part No Description Price (each) Stock
LR151630 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR151697 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR151663 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR159226 WIRING - TRACTION BATTERY Enquire To Order
View All

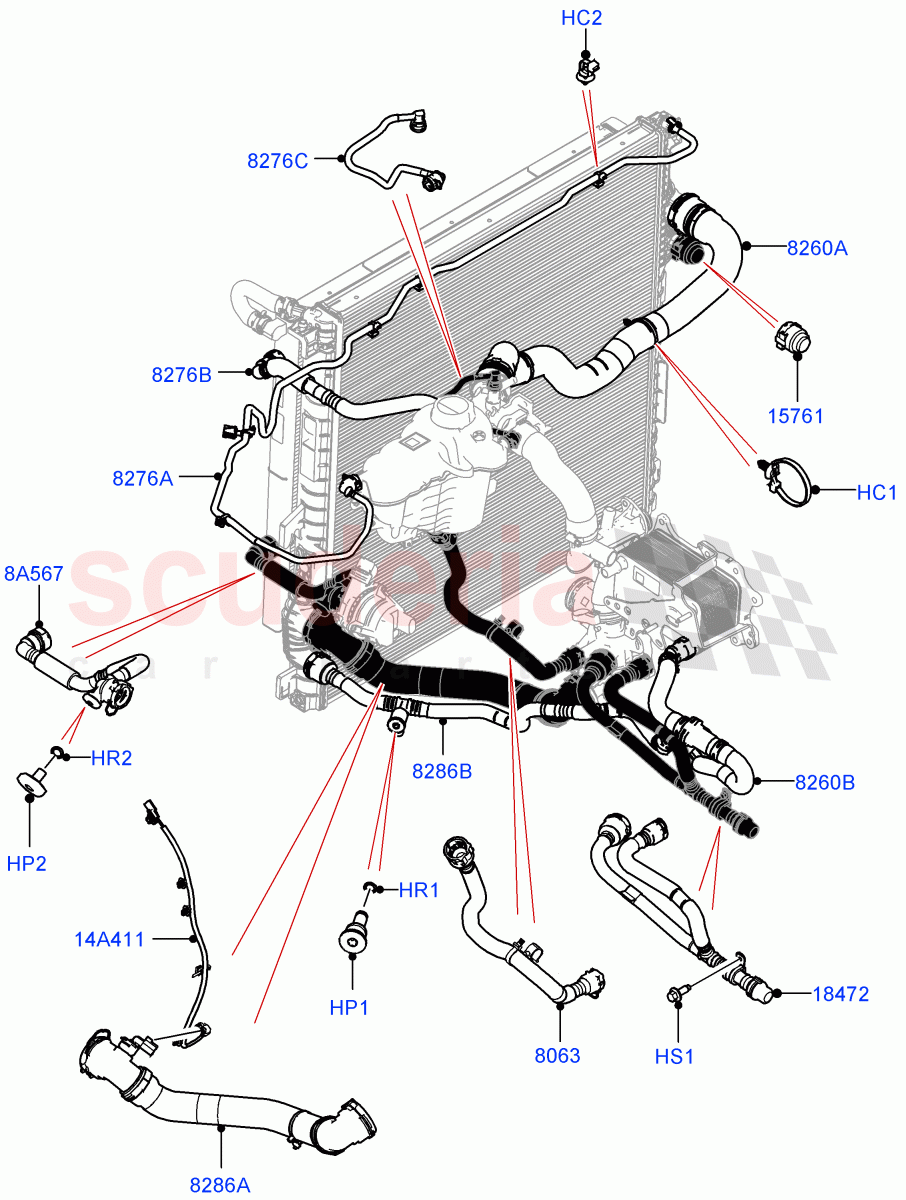

Cooling System Pipes And Hoses (3.0L AJ20P6 Petrol High) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR175780
Clip 		- 2 Enquire
HC2 LR175782
Clip
Single 		- 3 Enquire
HP1 LR175726
Plug
LH, Attaches To Bottom Of Radiator, Hose 		- 1 Enquire
HP2 LR175725
Plug
From Intercooler To Water Pump, Hose, Plastic 		- 1 Enquire
HR1 LR175790
O-Ring
Sealing Ring, Water Outlet 		- 1 Enquire
HR2 LR175788
O-Ring
Plug, Sealing Ring 		- 1 Enquire
HS1 RYG500160
SCREW
Hexagonal Head, M6 X 14MM 		- 1 Enquire
8A567 LR151663
HOSE - WATER
From Intercooler To Water Pump 		- 1 Enquire
14A411 LR159226
WIRING - TRACTION BATTERY 		- 1 Enquire
8063 LR151572
HOSE - WATER
Expansion Reservoir To Thermostat 		- 1 Enquire
8260A LR151598
HOSE - RADIATOR
Engine To Radiator, Top 		- 1 Enquire
8260B LR151557
HOSE - COOLING SYSTEM
To Oil Cooler, Tube Water By-Pass 		- 1 Enquire
8276A LR151607
HOSE - WATER
Radiator To Expansion Tank Bleed 		- 1 Enquire
8276B LR151678
HOSE - WATER
Intercooler Outlet / To: NA999999 		- 1 Enquire
8276B LR174697
Hose - Water
Intercooler Outlet / From: PA000001 		- 1 Enquire
8276C LR151636
HOSE - COOLANT BLEED
From Engine To Expansion Tank 		- 1 Enquire
8286A LR151630
HOSE - RADIATOR
LH, Bottom 		- 1 Enquire
8286B LR151697
HOSE - RADIATOR
LH, Attaches To Bottom Of Radiator 		- 1 Enquire
15761 LR085933
PLUG - BLANKING 		- 1 Enquire
18472 LR151527
TUBE - HEATER WATER
To Thermostat 		- 1 Enquire
