Name: Fuel Tank & Related Parts (3.0L AJ20D6 Diesel High)
Rating: 4.3 (1 reviews)

Fuel Tank & Related Parts (3.0L AJ20D6 Diesel High) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Fuel Tank & Related Parts (3.0L AJ20D6 Diesel High)

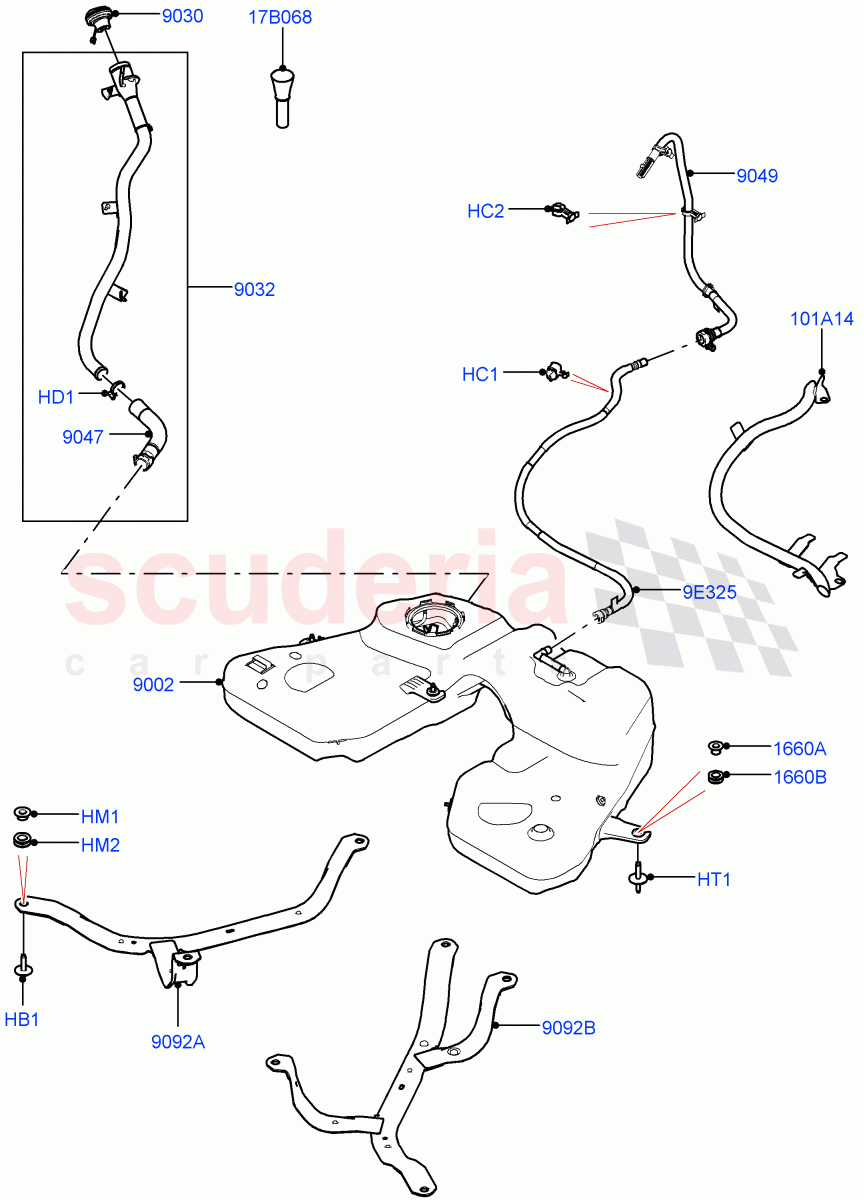

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR163798	BOLT	$7.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161950	CLIP	$2.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141230	CLIP	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	$5.85	To Order

Photo	Part No	Description	Price (each)	Stock
	WYF000020	SPACER	$3.55	To Order

Photo	Part No	Description	Price (each)	Stock
	WYD000020	GROMMET	$3.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094016	STUD	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152242	TANK - FUEL	$1,421.42	To Order
	LR174037	Tank - Fuel	$1,183.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138861	CAP - FUEL TANK FILLER	$37.60	To Order
	LR138719	CAP - FUEL TANK FILLER	$37.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152380	PIPE - FUEL FILLER	$348.14	To Order
	LR152381	PIPE - FUEL FILLER	$343.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152488	HOSE - FILLER PIPE	$79.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157071	TUBE - FUEL VAPOUR	$42.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152226	SPACER	$13.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152225	SPACER	$13.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152255	STRAP - FUEL TANK	$115.97	To Order
	LR174034	Strap - Fuel Tank	$114.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152258	STRAP - FUEL TANK	$85.35	To Order
	LR174035	Strap - Fuel Tank	$77.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152054	TUBE - VENTILATION	$48.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154681	REINFORCEMENT - FUEL TANK FILL PIPE	$59.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073691	FUNNEL - FUEL FILLER	$6.02	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR163798	BOLT	LR163798 BOLT Fuel Tank Strap, M10 x 43	$7.06	7
HC1	LR161950	CLIP	LR161950 CLIP Breather Pipe	$2.32	1
HC2	LR141230	CLIP	LR141230 CLIP Breather Pipe, Upper	$1.51	1
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9	$5.85	1
HM1	WYF000020	SPACER	WYF000020 SPACER Fuel Tank Strap, Inner	$3.55	7
HM2	WYD000020	GROMMET	WYD000020 GROMMET Fuel Tank Strap, Outer	$3.78	7
HT1	LR094016	STUD	LR094016 STUD Hexagonal Head, M10 X 41 + M8 X 22	$1.62	4
9E325	LR152054	TUBE - VENTILATION	LR152054 TUBE - VENTILATION Connects To Fuel Tank	$48.44	1
17B068	LR073691	FUNNEL - FUEL FILLER	LR073691 FUNNEL - FUEL FILLER Fuel Tank Filler Neck With Inhibit	$6.02	1
101A14	LR154681	REINFORCEMENT - FUEL TANK FILL PIPE	LR154681 REINFORCEMENT - FUEL TANK FILL PIPE	$59.85	1
1660A	LR152226	SPACER	LR152226 SPACER Fuel Tank, Inner	$13.12	3
1660B	LR152225	SPACER	LR152225 SPACER Fuel Tank, Outer	$13.12	3
9002	LR152242	TANK - FUEL	LR152242 TANK - FUEL To: NA000684	$1,421.42	1
9002	LR174037	Tank - Fuel	LR174037 Tank - Fuel From: NA000685	$1,183.66	1
9030	LR138861	CAP - FUEL TANK FILLER	LR138861 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Diesel	$37.60	1
9030	LR138719	CAP - FUEL TANK FILLER	LR138719 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan	$37.60	1
9032	LR152380	PIPE - FUEL FILLER	LR152380 PIPE - FUEL FILLER Fuel Tank Filler Neck - Diesel / Complete	$348.14	1
9032	LR152381	PIPE - FUEL FILLER	LR152381 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit / Complete	$343.83	1
9047	LR152488	HOSE - FILLER PIPE	LR152488 HOSE - FILLER PIPE Connects To Fuel Tank	$79.35	1
9049	LR157071	TUBE - FUEL VAPOUR	LR157071 TUBE - FUEL VAPOUR	$42.01	1
9092A	LR152255	STRAP - FUEL TANK	LR152255 STRAP - FUEL TANK RH / To: NA000684	$115.97	1
9092A	LR174034	Strap - Fuel Tank	LR174034 Strap - Fuel Tank RH / From: NA000685	$114.75	1
9092B	LR152258	STRAP - FUEL TANK	LR152258 STRAP - FUEL TANK LH / To: NA000684	$85.35	1
9092B	LR174035	Strap - Fuel Tank	LR174035 Strap - Fuel Tank LH / From: NA000685	$77.00	1
