Fuel Cooler Assembly (3.0L Aj20D6 Diesel High)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Fuel Cooler Assembly (3.0L AJ20D6 Diesel High)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR151875 HOSE - FUEL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR152528 BRACKET - FUEL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR152315 COOLER - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR072174 COOLER - FUEL Enquire To Order
View All

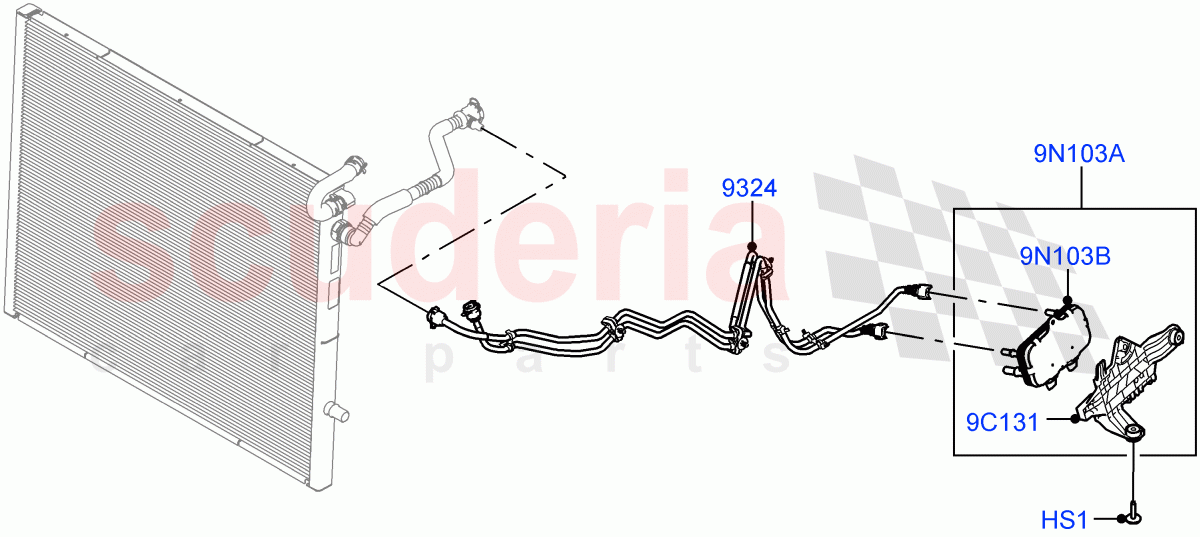

Fuel Cooler Assembly (3.0L AJ20D6 Diesel High) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 		- 2 Enquire
9C131 LR152528
BRACKET - FUEL COOLER
For Fuel Cooler 		- 1 Enquire
9N103A LR152315
COOLER - FUEL
With Bracket 		- 1 Enquire
9N103B LR072174
COOLER - FUEL 		- 1 Enquire
9324 LR151875
HOSE - FUEL COOLER 		- 1 Enquire
