Name: Fuel Lines (3.0L AJ20D6 Diesel High)
Rating: 4.3 (1 reviews)

View All

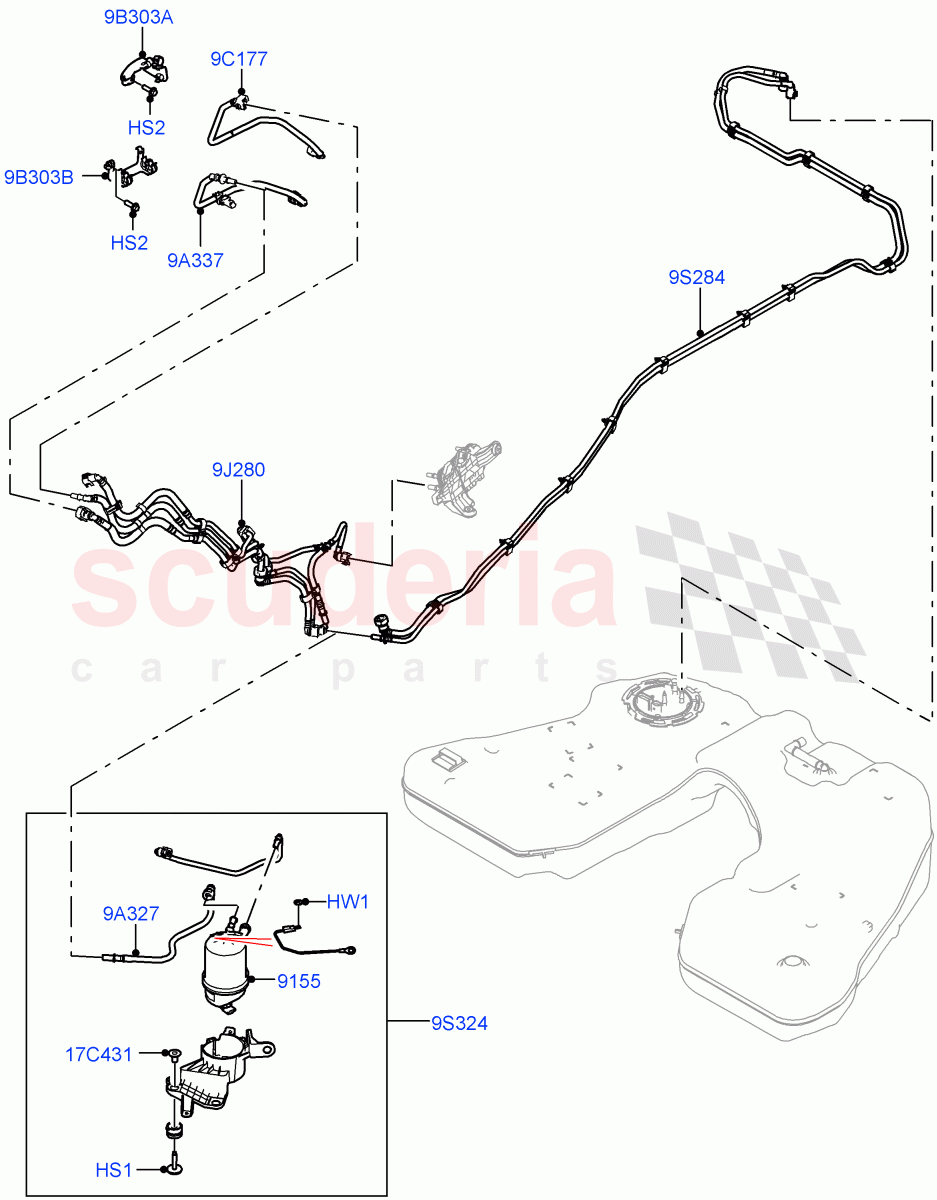

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161929	WASHER	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152584	FILTER - FUEL	$126.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152507	TUBE - FUEL FILTER TO FUEL PUMP	$37.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144912	TUBE - FUEL FILTER TO FUEL PUMP	$76.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125509	PIPE - FUEL	$41.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152522	TUBE - FUEL SUPPLY AND VAPOUR	$337.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152312	FILTER - FUEL	$220.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161870	SLEEVE	$4.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125505	BRACKET - FUEL TUBE SUPPORT	$54.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125507	BRACKET - FUEL TUBE SUPPORT	$37.52	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30	$4.03	3
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM	$2.23	5
HW1	LR161929	WASHER	LR161929 WASHER Spring Washer	$4.03	1
9A327	LR152507	TUBE - FUEL FILTER TO FUEL PUMP	LR152507 TUBE - FUEL FILTER TO FUEL PUMP	$37.98	1
9A337	LR144912	TUBE - FUEL FILTER TO FUEL PUMP	LR144912 TUBE - FUEL FILTER TO FUEL PUMP Inlet	$76.69	1
9B303A	LR125505	BRACKET - FUEL TUBE SUPPORT	LR125505 BRACKET - FUEL TUBE SUPPORT Upper	$54.90	1
9B303B	LR125507	BRACKET - FUEL TUBE SUPPORT	LR125507 BRACKET - FUEL TUBE SUPPORT Lower	$37.52	1
9C177	LR125509	PIPE - FUEL	LR125509 PIPE - FUEL	$41.47	1
9J280	LR152522	TUBE - FUEL SUPPLY AND VAPOUR	LR152522 TUBE - FUEL SUPPLY AND VAPOUR Front	$337.11	1
9S284	LR152378	TUBE - FUEL SUPPLY AND VAPOUR	LR152378 TUBE - FUEL SUPPLY AND VAPOUR Standard Wheelbase / Rear	$365.22	1
9S284	LR152379	TUBE - FUEL SUPPLY AND VAPOUR	LR152379 TUBE - FUEL SUPPLY AND VAPOUR Long Wheelbase / Rear	$375.28	1
9S324	LR152312	FILTER - FUEL	LR152312 FILTER - FUEL Complete Assembly	$220.88	1
17C431	LR161870	SLEEVE	LR161870 SLEEVE Bracket, Insulator	$4.81	3
9155	LR152584	FILTER - FUEL	LR152584 FILTER - FUEL	$126.19	1

Fuel Lines (3.0L Aj20D6 Diesel High)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]
