Fuses, Holders And Circuit Breakers (Engine Compartment) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Fuses, Holders And Circuit Breakers (Engine Compartment) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN105042 NUT - HEX. - FLANGED $0.50 IN STOCK
Photo Part No Description Price (each) Stock
LR000046 NUT - HEX. $0.50 To Order
Photo Part No Description Price (each) Stock
YQG10011 Circuit Breaker $3.98 To Order
LR020399 FUSE $3.74 To Order
LR020397 FUSE $7.96 To Order
Photo Part No Description Price (each) Stock
LR019903 CIRCUIT BREAKER $3.35 To Order
LR003745 CIRCUIT BREAKER $4.89 To Order
LR019904 CIRCUIT BREAKER $3.35 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR012696 PANEL - FUSE JUNCTION $216.84 To Order
Photo Part No Description Price (each) Stock
ADU1874 Fuse $0.01 To Order
ADU1876 Fuse $0.24 To Order
ADU1877 Fuse $0.24 To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
YQG10010 FUSE $3.82 To Order
View All

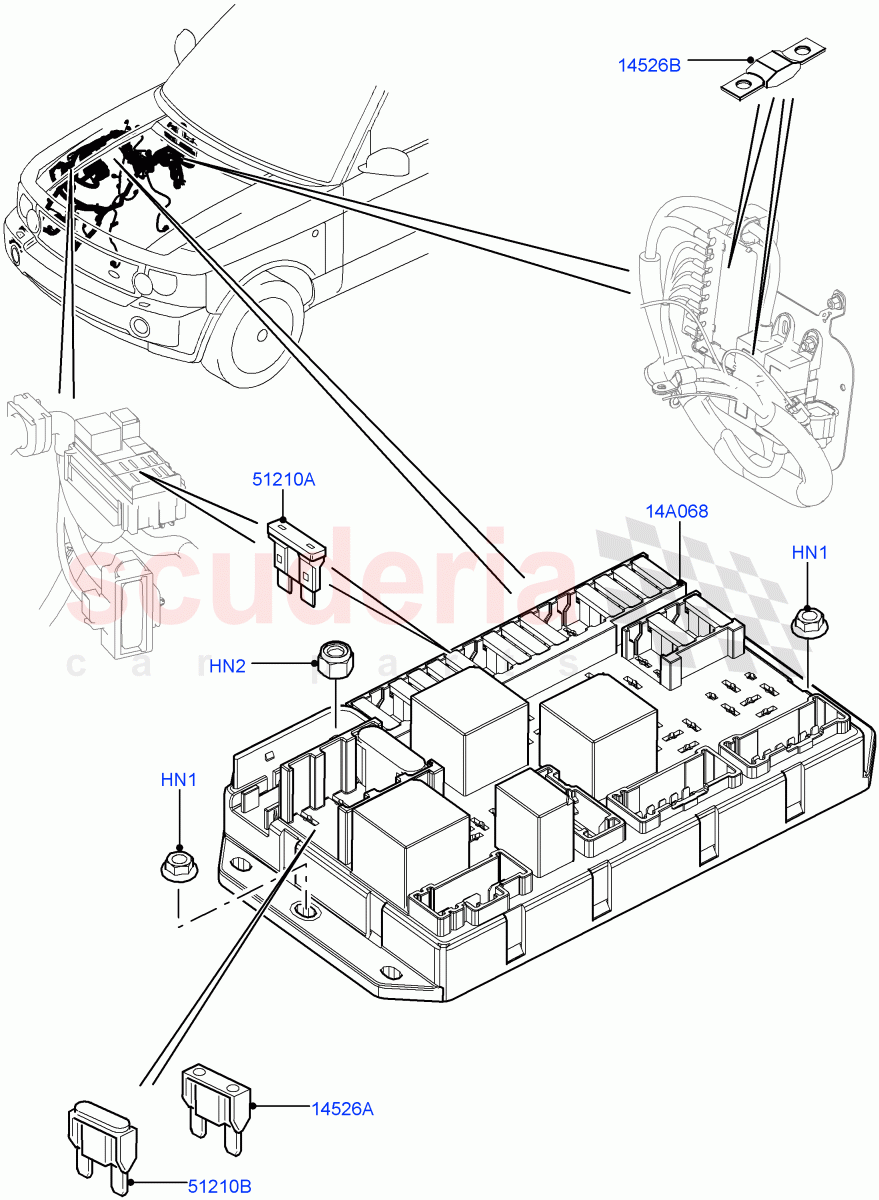

Fuses, Holders And Circuit Breakers (Engine Compartment) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN105042
NUT - HEX. - FLANGED
M5 / From: AA000001
IN STOCK 		$0.50 2
HN2 LR000046
NUT - HEX.
Hexagonal Head, M6 / From: AA000001 		$0.50 1
14A068 LR012696
PANEL - FUSE JUNCTION
From: AA000001 		$216.84 1
14526A YQG10011
Circuit Breaker
60 AMP, Blade Type, Light Blue Maxifuse / From: AA000001 		$3.98 -
14526A LR020399
FUSE
40 AMP, Blade Type, Orange Maxifuse / From: AA000001 		$3.74 1
14526A LR020397
FUSE
50 AMP, Blade Type, Red Maxifuse / From: AA000001 		$7.96 1
14526B LR019903
CIRCUIT BREAKER
40 AMP, Green, Midi Fuse / From: AA000001 		$3.35 -
14526B LR003745
CIRCUIT BREAKER
80 AMP, Midi Fuse, White / From: AA000001 		$4.89 -
14526B LR019904
CIRCUIT BREAKER
50 AMP, Midi Fuse, Red / From: AA000001 		$3.35 -
14526B LR021343
CIRCUIT BREAKER
250 Amp, Mega Fuse, Pink / From: AA000001 		$9.25 -
51210A ADU1874
Fuse
5 AMP, Blade Type, Tan / From: AA000001 / To: AA999999 		$0.01 -
51210A ADU1876
Fuse
10 AMP, Blade Type, Red / From: AA000001 / To: AA999999 		$0.24 -
51210A ADU1877
Fuse
15 AMP, Blade Type, Light Blue / From: AA000001 / To: AA999999 		$0.24 -
51210A ADU1878
Fuse
20 AMP, Blade Type, Yellow / From: AA000001 / To: AA999999 		$0.24 -
51210A ADU1880
Fuse
30 AMP, Blade Type, Light Green / From: AA000001 		$1.62 -
51210A YQF100170L
FUSE
40 AMP, Blade Type / From: AA000001 		$12.99 -
51210A ADU1879
Fuse
25 AMP, Blade Type, Plain / From: AA000001 / To: AA999999 		$0.72 -
51210A LR003729
FUSE
5 AMP, Blade Type, Tan / From: BA000001 		$0.59 1
51210A LR003730
FUSE
10 AMP, Blade Type, Red / From: BA000001 		$0.57 1
51210A LR003731
FUSE
15 AMP, Blade Type, Light Blue / From: BA000001 		$0.59 1
51210A LR003732
FUSE
20 AMP, Blade Type, Yellow / From: BA000001 		$0.78 1
51210A LR003733
FUSE
25 AMP, Blade Type, Plain / From: BA000001 		$0.50 1
51210A LR003734
FUSE
30 AMP, Blade Type, Light Green / From: BA000001 		$0.57 1
51210B YQG10010
FUSE
Blade Type, MAXI 50 AMP / From: AA000001 		$3.82 -
