Vehicle Modules And Sensors ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Vehicle Modules And Sensors ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR012894 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
EYH000080 NUT - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
LR001700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYP500880 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR016963 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR016964 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR016363 MODULE Enquire To Order
LR020132 MODULE Enquire To Order
LR021806 MODULE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR016362 MODULE Enquire To Order
LR020131 MODULE Enquire To Order
LR023341 MODULE - DOOR Enquire To Order
Photo Part No Description Price (each) Stock
LR016361 MODULE Enquire To Order
LR020130 MODULE Enquire To Order
LR023342 MODULE - DOOR Enquire To Order
Photo Part No Description Price (each) Stock
LR020075 SENSOR AND BRACKET Enquire To Order
LR021804 SENSOR - BLIND SPOT MONITORING Enquire To Order
LR027398 SENSOR - BLIND SPOT MONITORING Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR020076 SENSOR AND BRACKET Enquire To Order
LR021805 SENSOR AND BRACKET Enquire To Order
LR027399 SENSOR - BLIND SPOT MONITORING Enquire To Order
...and 1 more part variants. See table on right for more details.
View All

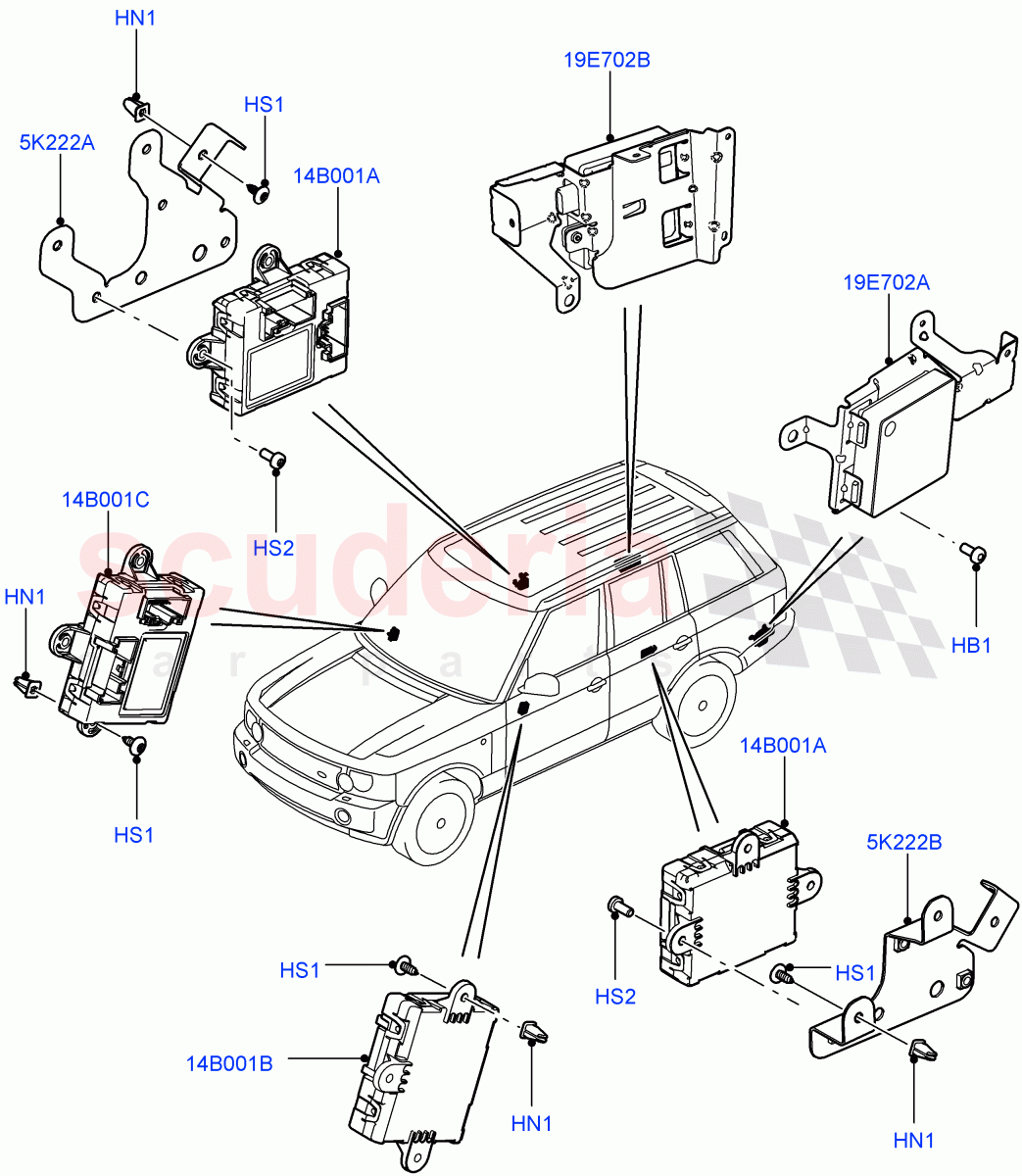

Vehicle Modules And Sensors ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR012894
BOLT
With Blind Spot Monitoring / For Sensor, M4 Special / From: AA000001 		- 1 Enquire
HN1 EYH000080
NUT - LOCKING
Plastic Nut, SEALING NUT / From: AA000001 		- 3 Enquire
HS1 LR001700
SCREW
4.8 X 13MM / From: AA000001 		- 12 Enquire
HS2 RYP500880
SCREW
M5 X 12MM / From: AA000001 		- 6 Enquire
5K222A LR016963
BRACKET
RH, Rear Door / From: AA000001 		- 1 Enquire
5K222B LR016964
BRACKET
LH, Rear Door / From: AA000001 		- 1 Enquire
14B001A LR016363
MODULE
For Rear Door / From: AA000001 / To: AA313500 		- 2 Enquire
14B001A LR020132
MODULE
For Rear Door / From: AA313501 / To: AA321130 		- 2 Enquire
14B001A LR021806
MODULE
For Rear Door / From: AA321131 / To: AA323071 		- 2 Enquire
14B001A LR023340
MODULE - DOOR
For Rear Door / From: AA323072 		- 2 Enquire
14B001B LR016362
MODULE
Drivers Door / From: AA000001 / To: AA313500 		- 1 Enquire
14B001B LR020131
MODULE
Drivers Door / From: AA313501 / To: AA323071 		- 1 Enquire
14B001B LR023341
MODULE - DOOR
Drivers Door / From: AA323072 		- 1 Enquire
14B001C LR016361
MODULE
Front, Passengers Door / From: AA000001 / To: AA313500 		- 1 Enquire
14B001C LR020130
MODULE
Front, Passengers Door / From: AA313501 / To: AA323071 		- 1 Enquire
14B001C LR023342
MODULE - DOOR
Front, Passengers Door / From: AA323072 		- 1 Enquire
19E702A LR020075
SENSOR AND BRACKET
With Blind Spot Monitoring / LH / From: AA000001 / To: AA319180 		- 1 Enquire
19E702A LR021804
SENSOR - BLIND SPOT MONITORING
With Blind Spot Monitoring / LH / From: AA319181 / To: AA999999 		- 1 Enquire
19E702A LR027398
SENSOR - BLIND SPOT MONITORING
With Blind Spot Monitoring / LH / From: BA000001 / To: CA361779 		- 1 Enquire
19E702A LR034149
SENSOR - BLIND SPOT MONITORING
With Blind Spot Monitoring / LH / From: CA361780 		- 1 Enquire
19E702B LR020076
SENSOR AND BRACKET
With Blind Spot Monitoring / RH / From: AA000001 / To: AA319180 		- 1 Enquire
19E702B LR021805
SENSOR AND BRACKET
With Blind Spot Monitoring / RH / From: AA319181 / To: AA999999 		- 1 Enquire
19E702B LR027399
SENSOR - BLIND SPOT MONITORING
With Blind Spot Monitoring / RH / From: BA000001 / To: CA361779 		- 1 Enquire
19E702B LR034150
SENSOR - BLIND SPOT MONITORING
With Blind Spot Monitoring / RH / From: CA361780 		- 1 Enquire
