Electrical Wiring - Engine And Dash (Link) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Electrical Wiring - Engine And Dash (Link) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR012702 WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR012390 JUMPER WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR012893 LINK Enquire To Order
View All

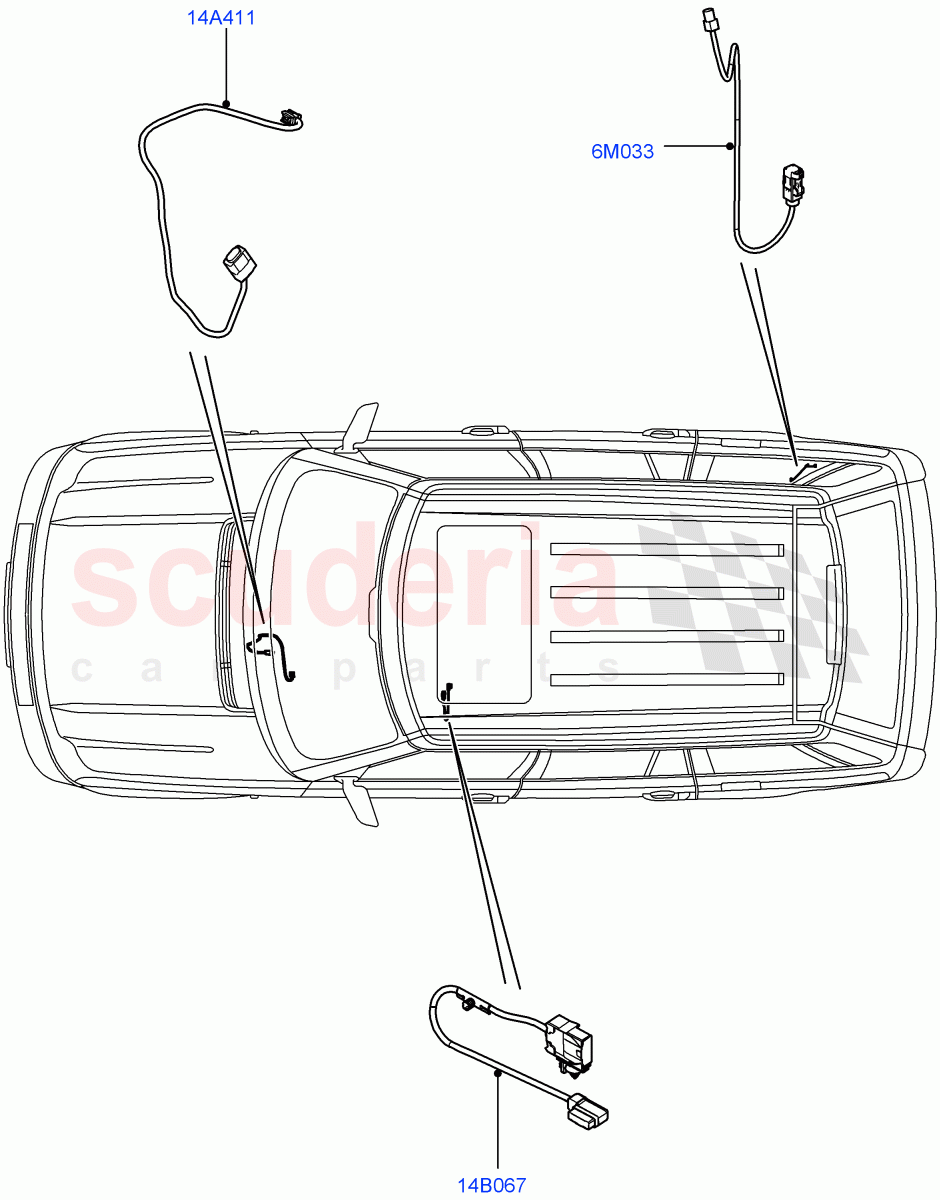

Electrical Wiring - Engine And Dash (Link) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
6M033 LR012702
WIRING
Park Heating With Remote Control / From: AA000001 		- 1 Enquire
14A411 LR012390
JUMPER WIRING
LHD / Pedal Sensor / From: AA000001 		- 1 Enquire
14B067 LR012893
LINK
AUU Link Lead / From: AA000001 		- 1 Enquire
