Front Knuckle And Hub ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Front Knuckle And Hub ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYG000031 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RUE000010 CIRCLIP Enquire To Order
Photo Part No Description Price (each) Stock
RUH100030 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
KYH000051 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR023978 HUB - WHEEL Enquire To Order
Photo Part No Description Price (each) Stock
RLB000011 BEARING Enquire To Order
Photo Part No Description Price (each) Stock
RBD000010 SEAL - DUST Enquire To Order
Photo Part No Description Price (each) Stock
LR010678 KNUCKLE - FRONT WHEEL Enquire To Order
LR010677 KNUCKLE - FRONT WHEEL Enquire To Order
View All

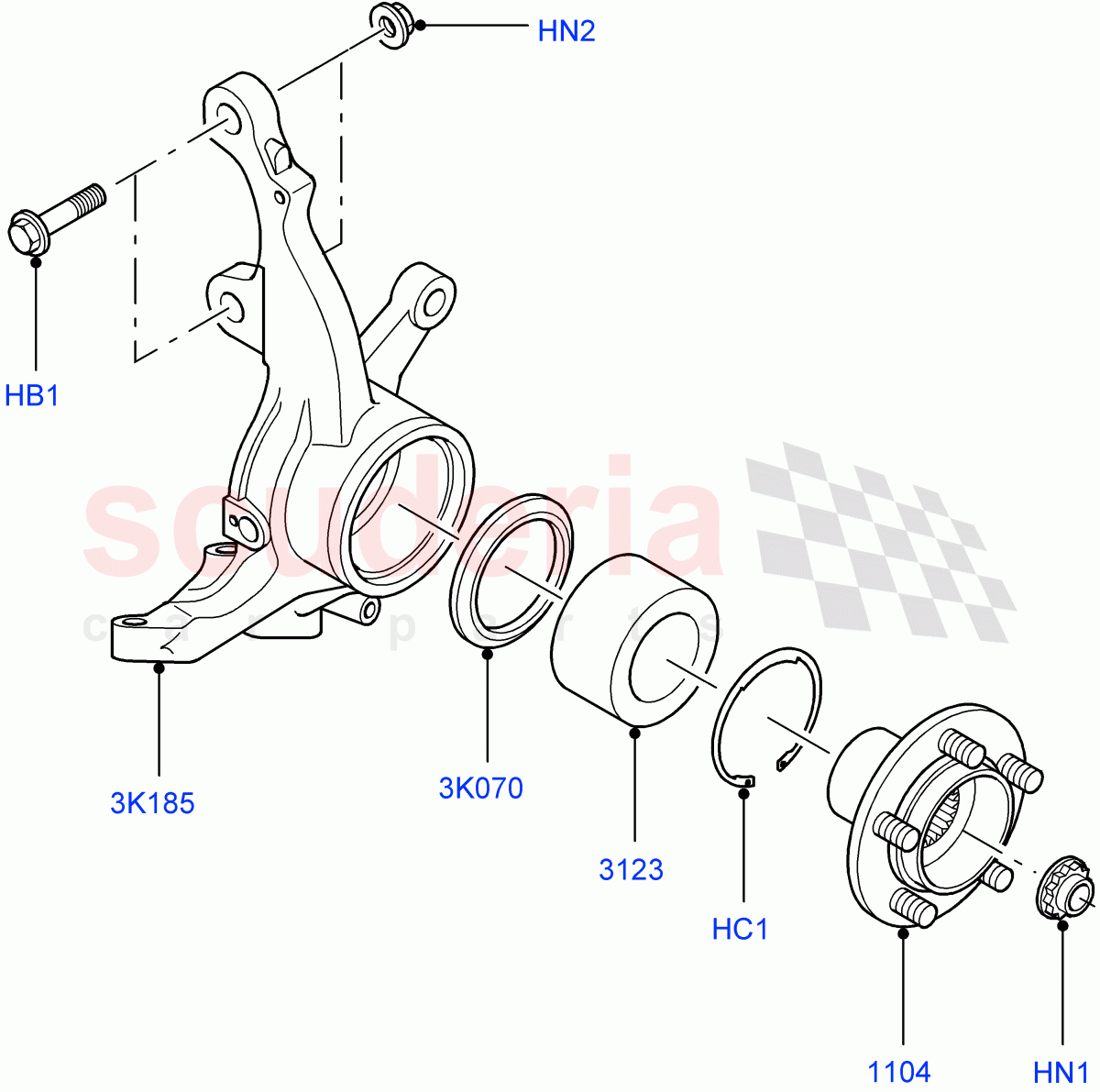

Front Knuckle And Hub ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 KYG000031
BOLT
M16 X 65MM / From: AA000001 		- 4 Enquire
HC1 RUE000010
CIRCLIP 		- 2 Enquire
HN1 RUH100030
NUT - SPECIAL
M27 / From: AA000001 		- 2 Enquire
HN2 KYH000051
NUT - FLANGED
HEX Flange, M16 / From: AA000001 		- 4 Enquire
3K070 RBD000010
SEAL - DUST
From: AA000001 		- 2 Enquire
3K185 LR010678
KNUCKLE - FRONT WHEEL
LH / From: AA000001 		- 1 Enquire
3K185 LR010677
KNUCKLE - FRONT WHEEL
RH / From: AA000001 		- 1 Enquire
1104 LR023978
HUB - WHEEL
From: AA000001 		- 2 Enquire
3123 RLB000011
BEARING
From: AA000001 		- 2 Enquire
