Front Axle Case ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Front Axle Case ((V) FROMAA000001)

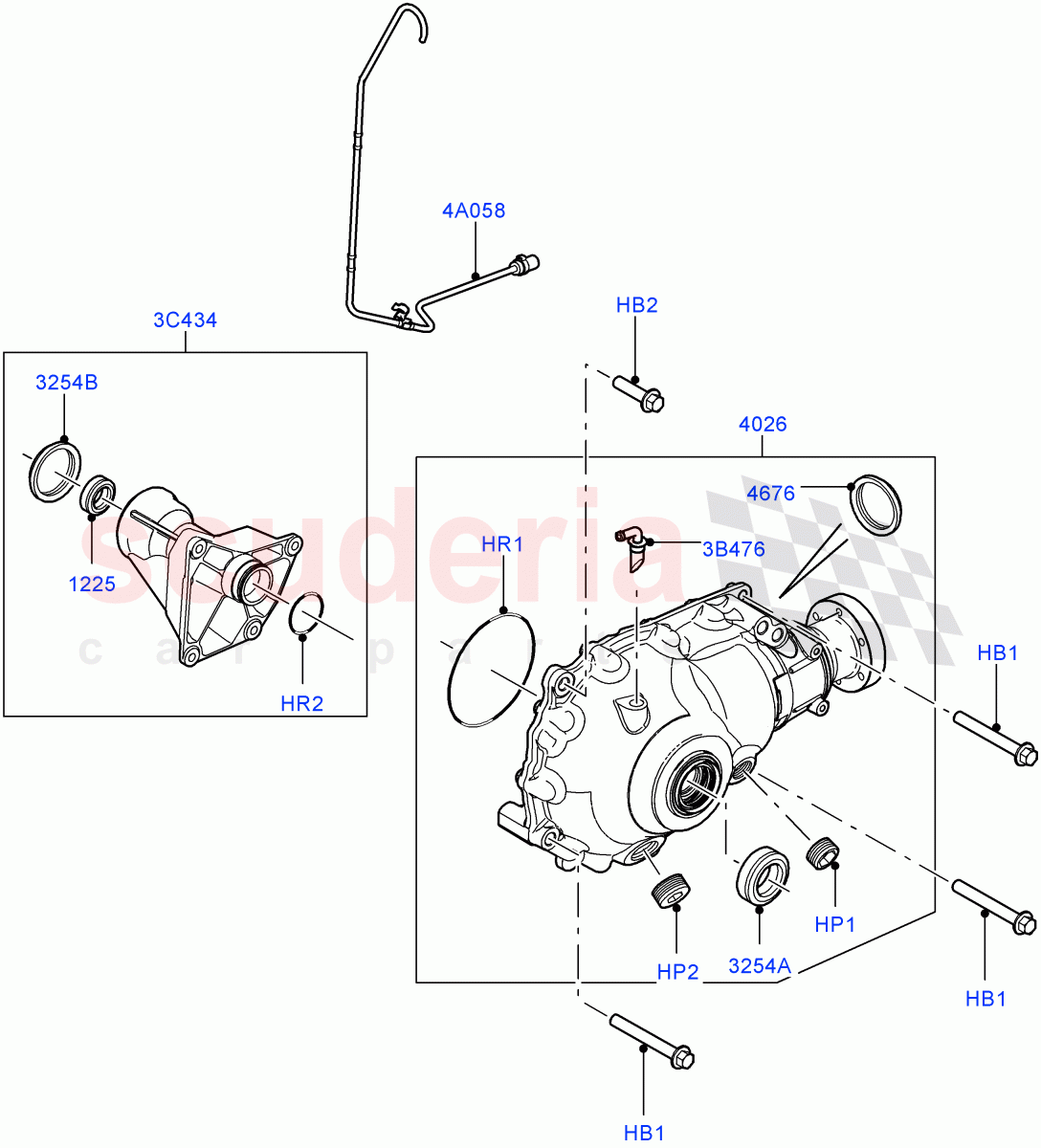

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TBK500030	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TBK500040	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYB000010	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYP000220	PLUG - DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYX000010	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYX000060	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TZZ000050	BEARING - THRUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010798	AXLE - FRONT	Enquire	To Order
	LR022585	AXLE - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007769	SEAL - DRIVING PINION OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TZB000050	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TBX000080	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007393	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010729	BRACKET	Enquire	To Order
	TAU500130	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012828	PIPE	Enquire	To Order
	LR023587	PIPE	Enquire	To Order
	TAP500150	PIPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	TBK500030	BOLT	TBK500030 BOLT HEX Flange, M12 X 1.75 X 100.0 / From: AA000001	-	4	Enquire
HB2	TBK500040	BOLT	TBK500040 BOLT HEX Flange, M12 x 55MM / From: AA000001	-	1	Enquire
HP1	TYB000010	PLUG	TYB000010 PLUG Plug - Oil Drain / From: AA000001	-	1	Enquire
HP2	TYP000220	PLUG - DRAIN	TYP000220 PLUG - DRAIN Plug - Oil Drain / From: AA000001	-	1	Enquire
HR1	RYX000010	O-RING	RYX000010 O-RING O-Ring / From: AA000001	-	1	Enquire
HR2	TYX000060	O-RING	TYX000060 O-RING O-Ring / From: AA000001	-	1	Enquire
3B476	LR007393	TUBE	LR007393 TUBE Breather Pipe / From: AA000001	-	1	Enquire
3C434	LR010729	BRACKET	LR010729 BRACKET 5.0L OHC SGDI NA V8 Petrol - AJ133 / From: AA000001	-	1	Enquire
3C434	TAU500130	BRACKET	TAU500130 BRACKET 3.6L V8 32V DOHC EFi Diesel Lion / From: AA000001	-	1	Enquire
4A058	LR012828	PIPE	LR012828 PIPE 5.0L OHC SGDI NA V8 Petrol - AJ133 / Breather Pipe / From: AA000001	-	1	Enquire
4A058	LR023587	PIPE	LR023587 PIPE 4.4L DOHC DITC V8 Diesel / Breather Pipe / From: BA000001	-	1	Enquire
4A058	TAP500150	PIPE	TAP500150 PIPE 3.6L V8 32V DOHC EFi Diesel Lion / Breather Pipe / From: AA000001	-	1	Enquire
1225	TZZ000050	BEARING - THRUST	TZZ000050 BEARING - THRUST Ball, Bearing / From: AA000001	-	1	Enquire
3254A	TZB000050	SEAL	TZB000050 SEAL From: AA000001	-	1	Enquire
3254B	TBX000080	SEAL	TBX000080 SEAL From: AA000001	-	1	Enquire
4026	LR010798	AXLE - FRONT	LR010798 AXLE - FRONT From: AA000001	-	1	Enquire
4026	LR022585	AXLE - FRONT	LR022585 AXLE - FRONT 4.4L DOHC DITC V8 Diesel / From: BA000001	-	1	Enquire
4676	LR007769	SEAL - DRIVING PINION OIL	LR007769 SEAL - DRIVING PINION OIL Pinion Gear / From: AA000001	-	1	Enquire
