Air Suspension Controls/Electrics ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Air Suspension Controls/Electrics ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYH000070 NUT - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
QYH105301 NUT - FLANGED Enquire To Order
LR054730 NUT - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
LR010797 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
SAB500130 BOLT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
RYP000141 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR010828 SENSOR Enquire To Order
LR010827 SENSOR Enquire To Order
LR023651 SENSOR - AIR SUSPENSION Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR010802 SENSOR Enquire To Order
LR010803 SENSOR Enquire To Order
LR023653 SENSOR - AIR SUSPENSION Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR011178 BRACKET - SENSOR MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR011179 BRACKET - SENSOR MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR010830 BRACKET - SENSOR MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR010831 BRACKET - SENSOR MOUNTING Enquire To Order
View All

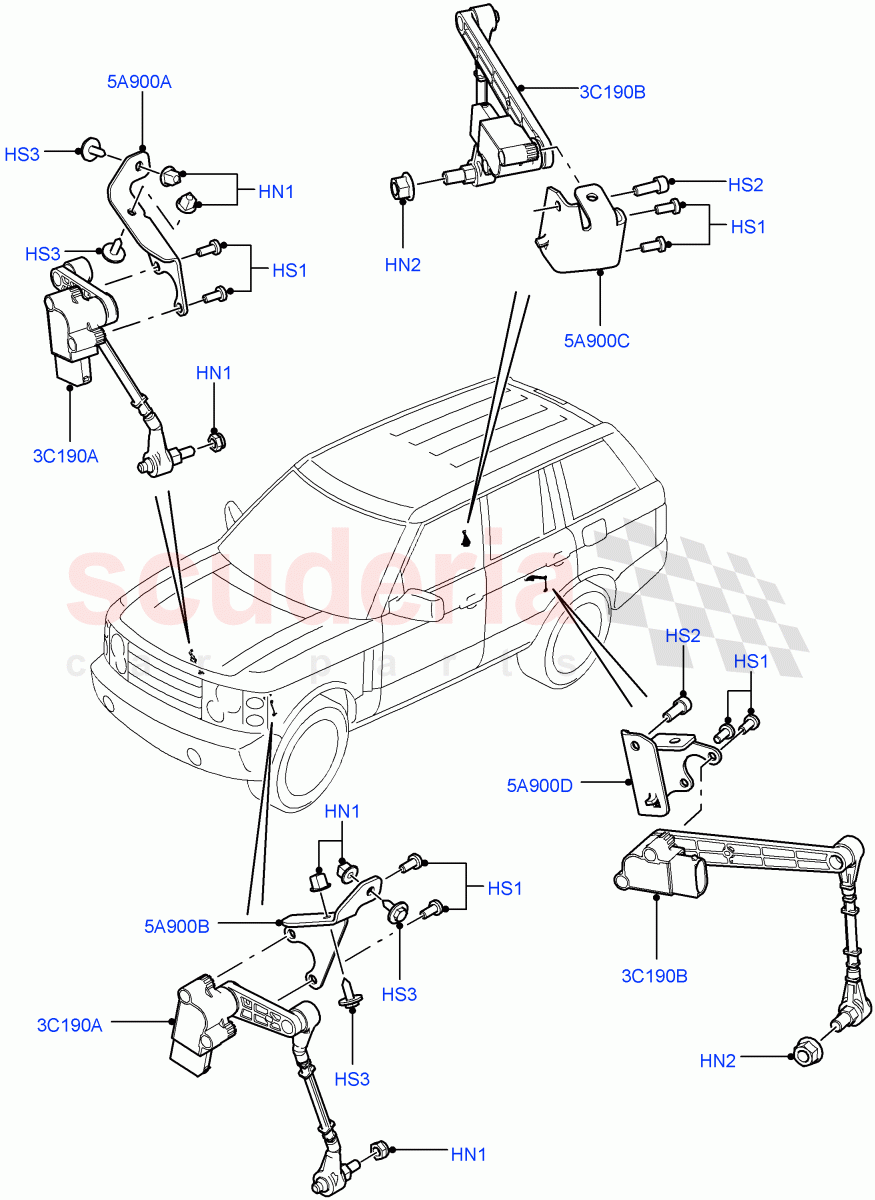

Air Suspension Controls/Electrics ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 RYH000070
NUT - LOCKING
Locking Type / From: AA000001 		- 4 Enquire
HN2 QYH105301
NUT - FLANGED
HEX Flange, M8 / From: AA000001 / To: CA393257 		- 2 Enquire
HN2 LR054730
NUT - LOCKING
HEX Flange, M8 / From: CA393258 		- 2 Enquire
HS1 LR010797
SCREW
M5 X 12MM, Torx / From: AA000001 		- 8 Enquire
HS2 SAB500130
BOLT - SPECIAL
M6 X 16MM / From: AA000001 		- 4 Enquire
HS3 RYP000141
SCREW
4.8 X 16MM, Self Tapping / From: AA000001 		- 4 Enquire
3C190A LR010828
SENSOR
With Continuous Variable Damping / Front / From: AA000001 / To: AA325623 		- 2 Enquire
3C190A LR010827
SENSOR
Less Adaptive Damping / Front / From: AA000001 / To: AA325623 		- 2 Enquire
3C190A LR023651
SENSOR - AIR SUSPENSION
Less Adaptive Damping / Front / From: AA325624 		- 2 Enquire
3C190A LR023652
SENSOR - AIR SUSPENSION
With Continuous Variable Damping / Front / From: AA325624 		- 2 Enquire
3C190B LR010802
SENSOR
Less Adaptive Damping / Rear / From: AA000001 / To: AA325623 		- 2 Enquire
3C190B LR010803
SENSOR
With Continuous Variable Damping / Rear / From: AA000001 / To: AA325623 		- 2 Enquire
3C190B LR023653
SENSOR - AIR SUSPENSION
Less Adaptive Damping / Rear / From: AA325624 		- 2 Enquire
3C190B LR023654
SENSOR - AIR SUSPENSION
With Continuous Variable Damping / Rear / From: AA325624 		- 2 Enquire
5A900A LR011178
BRACKET - SENSOR MOUNTING
RH Front / From: AA000001 		- 1 Enquire
5A900B LR011179
BRACKET - SENSOR MOUNTING
LH Front / From: AA000001 		- 1 Enquire
5A900C LR010830
BRACKET - SENSOR MOUNTING
RH Rear / From: AA000001 		- 1 Enquire
5A900D LR010831
BRACKET - SENSOR MOUNTING
LH Rear / From: AA000001 		- 1 Enquire
