Inlet Manifold (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Inlet Manifold (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

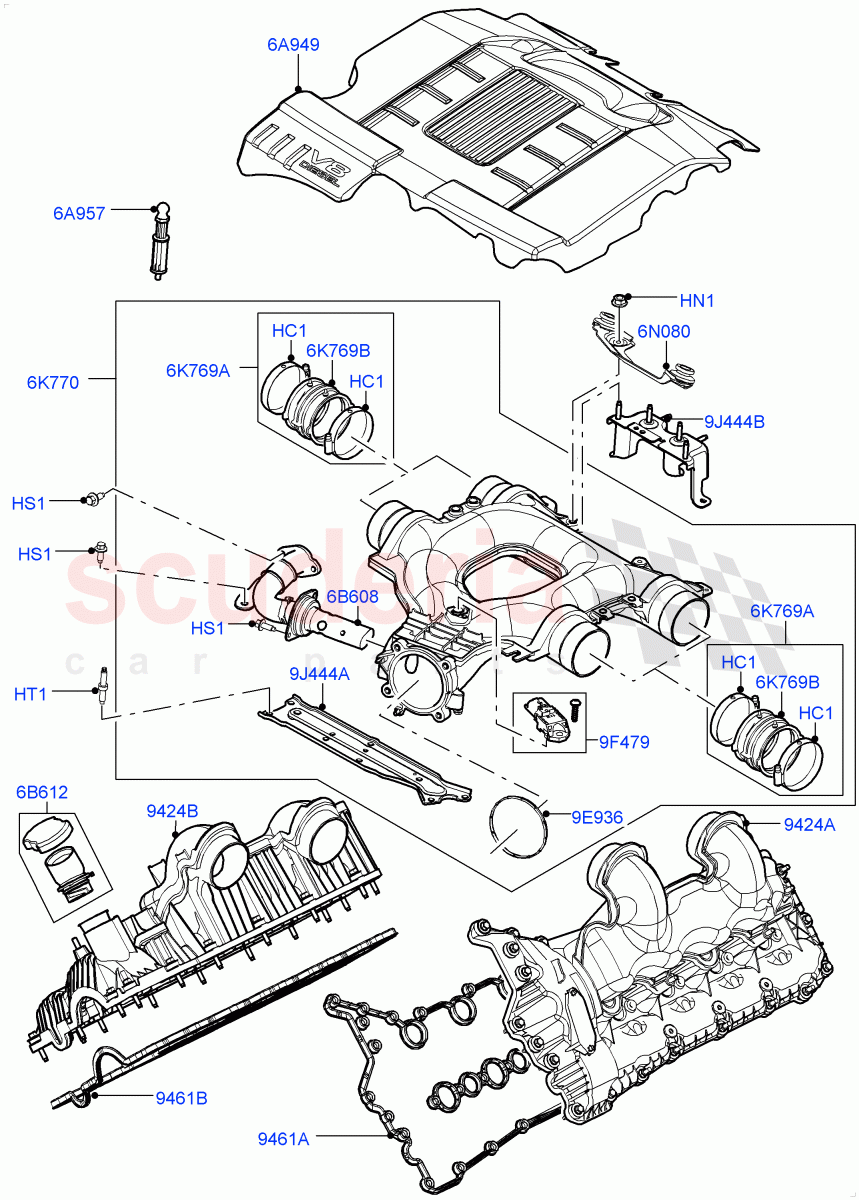

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR048063	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4408651	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023027	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022882	COVER	Enquire	To Order
	LR038152	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022884	STUD - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023038	TUBE - EXHAUST GAS RECIRCULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053016	PIPE - OIL FEED	Enquire	To Order
	LR053016	PIPE - OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022737	DUCT - AIR INTAKE	Enquire	To Order
	LR033348	DUCT - AIR INTAKE	Enquire	To Order
	LR048505	DUCT - AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022739	BRACKET - ENGINE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022743	MANIFOLD - INLET	Enquire	To Order
	LR034993	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022921	MANIFOLD - INLET	Enquire	To Order
	LR034994	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022748	GASKET - INTAKE MANIFOLD	Enquire	To Order
	LR035029	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022919	GASKET - INTAKE MANIFOLD	Enquire	To Order
	LR035031	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022931	GASKET - THROTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022916	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order
	LR125298	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR056285	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR056285	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022751	BRACKET - INTAKE MANIFOLD	Enquire	To Order
	LR038336	BRACKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022912	BRACKET - INTAKE MANIFOLD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR048063	CLIP	LR048063 CLIP 56-84MM / From: BA000001 / To: CA393365	-	8	Enquire
HN1	FN106042	NUT	FN106042 NUT Hexagonal Head, M6 / From: BA000001	-	2	Enquire
HS1	4408651	SCREW	4408651 SCREW M6 X 14MM / From: BA000001	-	3	Enquire
HT1	LR023027	STUD	LR023027 STUD M6, Support Bracket / From: BA000001	-	4	Enquire
6A949	LR022882	COVER	LR022882 COVER Engine / From: BA000001 / To: CA393569	-	1	Enquire
6A949	LR038152	COVER	LR038152 COVER Engine / From: CA393570	-	1	Enquire
6A957	LR022884	STUD - BALL	LR022884 STUD - BALL Cover, Engine / From: BA000001	-	2	Enquire
6B608	LR023038	TUBE - EXHAUST GAS RECIRCULATION	LR023038 TUBE - EXHAUST GAS RECIRCULATION EGR Valve / From: BA000001	-	1	Enquire
6B612	LR053016	PIPE - OIL FEED	LR053016 PIPE - OIL FEED Land Rover Print / From: BA000001	-	1	Enquire
6B612	LR053016	PIPE - OIL FEED	LR053016 PIPE - OIL FEED Jaguar And Land Rover Print, Service Only / From: AA000001	-	1	Enquire
6K769A	LR056285	DUCT - AIR	LR056285 DUCT - AIR Connector, With Clamps / From: BA000001	-	4	Enquire
6K769B	LR056285	DUCT - AIR	LR056285 DUCT - AIR Connector, Less Clamps - Must Order Separately / From: BA000001 / To: CA393365	-	4	Enquire
6K770	LR022737	DUCT - AIR INTAKE	LR022737 DUCT - AIR INTAKE Air Intake, Complete Assembly / From: BA000001 / To: CA393013	-	1	Enquire
6K770	LR033348	DUCT - AIR INTAKE	LR033348 DUCT - AIR INTAKE Air Intake, Complete Assembly / From: CA393014 / To: CA393015	-	1	Enquire
6K770	LR048505	DUCT - AIR INTAKE	LR048505 DUCT - AIR INTAKE Air Intake, Complete Assembly / From: CA393016	-	1	Enquire
6N080	LR022739	BRACKET - ENGINE COVER	LR022739 BRACKET - ENGINE COVER Engine Cover / From: BA000001	-	1	Enquire
9E936	LR022931	GASKET - THROTTLE	LR022931 GASKET - THROTTLE Attaches to intake manifold, Throttle Body To Intake / From: BA000001	-	1	Enquire
9F479	LR022916	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR022916 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: BA000001 / To: BA999999	-	1	Enquire
9F479	LR125298	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR125298 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: CA000001	-	1	Enquire
9J444A	LR022751	BRACKET - INTAKE MANIFOLD	LR022751 BRACKET - INTAKE MANIFOLD Intake Manifold / From: BA000001 / To: CA393013	-	1	Enquire
9J444A	LR038336	BRACKET - INTAKE MANIFOLD	LR038336 BRACKET - INTAKE MANIFOLD Intake Manifold / From: CA393014	-	1	Enquire
9J444B	LR022912	BRACKET - INTAKE MANIFOLD	LR022912 BRACKET - INTAKE MANIFOLD Intake Manifold, Support / From: BA000001	-	1	Enquire
9424A	LR022743	MANIFOLD - INLET	LR022743 MANIFOLD - INLET LH, With Cylinder Head Cover / From: BA000001 / To: CA393013	-	1	Enquire
9424A	LR034993	MANIFOLD - INLET	LR034993 MANIFOLD - INLET LH, With Cylinder Head Cover / From: CA393014	-	1	Enquire
9424B	LR022921	MANIFOLD - INLET	LR022921 MANIFOLD - INLET RH, With Cylinder Head Cover / From: BA000001 / To: CA393013	-	1	Enquire
9424B	LR034994	MANIFOLD - INLET	LR034994 MANIFOLD - INLET RH, With Cylinder Head Cover / From: CA393014	-	1	Enquire
9461A	LR022748	GASKET - INTAKE MANIFOLD	LR022748 GASKET - INTAKE MANIFOLD LH, Manifold To Cylinder Head / From: BA000001 / To: CA393013	-	1	Enquire
9461A	LR035029	GASKET - INTAKE MANIFOLD	LR035029 GASKET - INTAKE MANIFOLD LH, Manifold To Cylinder Head / From: CA393014	-	1	Enquire
9461B	LR022919	GASKET - INTAKE MANIFOLD	LR022919 GASKET - INTAKE MANIFOLD RH, Manifold To Cylinder Head / From: BA000001 / To: CA393013	-	1	Enquire
9461B	LR035031	GASKET - INTAKE MANIFOLD	LR035031 GASKET - INTAKE MANIFOLD RH, Manifold To Cylinder Head / From: CA393014	-	1	Enquire
