Exhaust Manifold (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Exhaust Manifold (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR014200 BOLT - HEX.HEAD $1.04 To Order
Photo Part No Description Price (each) Stock
FS110256 BOLT - FLANGED HEX. $1.81 To Order
Photo Part No Description Price (each) Stock
LR106277 NUT - HEX. - FLANGED $2.08 IN STOCK
Photo Part No Description Price (each) Stock
LR038607 NUT $4.63 IN STOCK
Photo Part No Description Price (each) Stock
LR122427 BOLT $4.52 IN STOCK
Photo Part No Description Price (each) Stock
4540794 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
FS108306 SCREW $0.45 To Order
Photo Part No Description Price (each) Stock
LR020695 STUD $8.21 To Order
Photo Part No Description Price (each) Stock
LR113358 STUD $4.25 To Order
Photo Part No Description Price (each) Stock
LR022802 GASKET - EXHAUST MANIFOLD $28.35 To Order
Photo Part No Description Price (each) Stock
LR022724 GASKET - EXHAUST MANIFOLD $19.68 To Order
Photo Part No Description Price (each) Stock
LR022754 PIPE - EXHAUST CROSSOVER $904.94 To Order
LR034006 PIPE - EXHAUST $904.94 To Order
Photo Part No Description Price (each) Stock
LR022723 MANIFOLD - EXHAUST $314.22 To Order
Photo Part No Description Price (each) Stock
LR022722 MANIFOLD - EXHAUST $575.70 To Order
Photo Part No Description Price (each) Stock
LR022800 SPACER - EXHAUST MANIFOLD FIXING $6.66 To Order
Photo Part No Description Price (each) Stock
LR022785 BRACKET - EXHAUST PIPE MOUNTING $19.61 To Order
Photo Part No Description Price (each) Stock
LR022786 BRACKET - EXHAUST PIPE MOUNTING $24.56 To Order
Photo Part No Description Price (each) Stock
LR022753 BRACKET - EXHAUST PIPE MOUNTING $38.72 To Order
Photo Part No Description Price (each) Stock
LR022726 HEAT SHIELD - EXHAUST MANIFOLD $90.33 To Order
Photo Part No Description Price (each) Stock
LR022725 HEAT SHIELD - EXHAUST MANIFOLD $114.92 To Order
View All

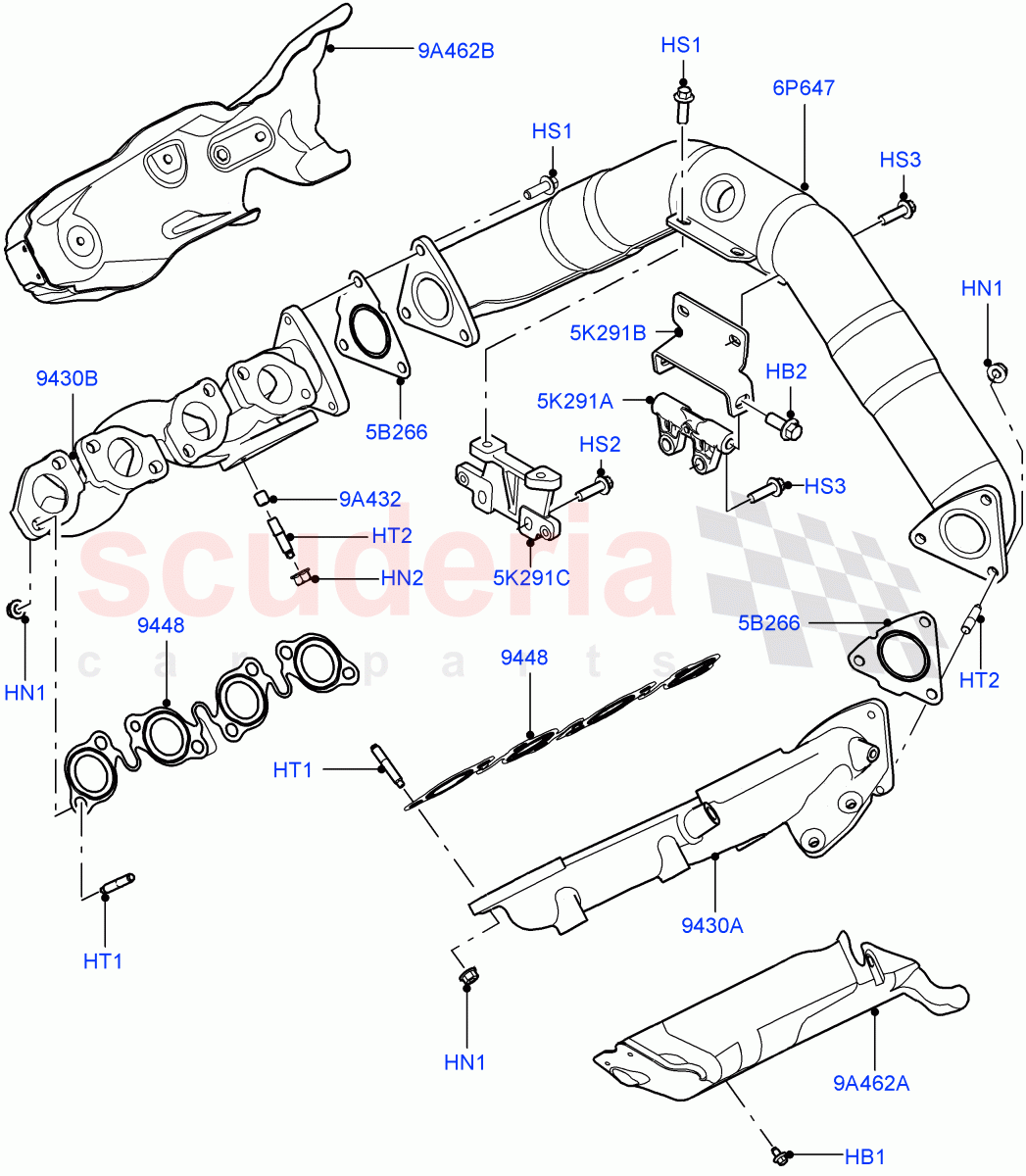

Exhaust Manifold (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR014200
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 10MM / From: BA000001 		$1.04 4
HB2 FS110256
BOLT - FLANGED HEX.
Bracket, Crossover, M10 X 25MM / From: BA000001 		$1.81 2
HN1 LR106277
NUT - HEX. - FLANGED
M8 / From: BA000001
IN STOCK 		$2.08 17
HN2 LR038607
NUT
M8, Turbocharger Inlet / From: BA000001
IN STOCK 		$4.63 3
HS1 LR122427
BOLT
Crossover, Exhaust pipe, M8 X 25MM / From: BA000001
IN STOCK 		$4.52 7
HS2 4540794
SCREW
Bracket, Crossover, M8 X 25MM / From: BA000001 		$1.53 2
HS3 FS108306
SCREW
Bracket, Crossover, M8 x 30MM / From: BA000001 		$0.45 4
HT1 LR020695
STUD
M8 x 19 + M8 x 21.7 Hex Point / From: BA000001 		$8.21 16
HT2 LR113358
STUD
M8 X 16MM, M8 x 8MM / From: BA000001 		$4.25 1
5B266 LR022724
GASKET - EXHAUST MANIFOLD
Cross Over Pipe To Exhaust Manifold / From: BA000001 		$19.68 2
5K291A LR022785
BRACKET - EXHAUST PIPE MOUNTING
Crossover, Lower / From: BA000001 		$19.61 1
5K291B LR022786
BRACKET - EXHAUST PIPE MOUNTING
Crossover, Upper / From: BA000001 		$24.56 1
5K291C LR022753
BRACKET - EXHAUST PIPE MOUNTING
For Exhaust Crossover Pipe / From: BA000001 		$38.72 1
6P647 LR022754
PIPE - EXHAUST CROSSOVER
Crossover / From: BA000001 / To: CA393013 		$904.94 1
6P647 LR034006
PIPE - EXHAUST
Crossover / From: CA393014 		$904.94 1
9A432 LR022800
SPACER - EXHAUST MANIFOLD FIXING
Manifold To Turbocharger / From: BA000001 		$6.66 4
9A462A LR022726
HEAT SHIELD - EXHAUST MANIFOLD
LH / From: BA000001 		$90.33 1
9A462B LR022725
HEAT SHIELD - EXHAUST MANIFOLD
RH / From: BA000001 		$114.92 1
9430A LR022723
MANIFOLD - EXHAUST
LH / From: BA000001 		$314.22 1
9430B LR022722
MANIFOLD - EXHAUST
RH / From: BA000001 		$575.70 1
9448 LR022802
GASKET - EXHAUST MANIFOLD
Exhaust Manifold / From: BA000001 		$28.35 2
