Cylinder Head (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Cylinder Head (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1419374 BOLT $4.04 To Order
Photo Part No Description Price (each) Stock
1102774 PLUG - ENGINE $6.28 To Order
Photo Part No Description Price (each) Stock
4364422 SCREW $1.30 To Order
Photo Part No Description Price (each) Stock
4556038 BOLT $3.17 To Order
Photo Part No Description Price (each) Stock
LR023009 CYLINDER HEAD $2,977.07 To Order
LR023010 CYLINDER HEAD $3,036.59 To Order
Photo Part No Description Price (each) Stock
LR022899 GASKET-CYLINDER HEAD $123.46 To Order
LR022897 GASKET - CYLINDER HEAD $123.46 To Order
Photo Part No Description Price (each) Stock
LR008130 VALVE - EXHAUST $30.97 To Order
Photo Part No Description Price (each) Stock
1311281 VALVE - INLET $20.62 To Order
Photo Part No Description Price (each) Stock
LR006720 SPRING - VALVE $7.10 To Order
Photo Part No Description Price (each) Stock
LR022880 RETAINER - VALVE SPRING $3.90 To Order
Photo Part No Description Price (each) Stock
LR022959 COLLET - VALVE SPRING RETAINER $2.71 To Order
Photo Part No Description Price (each) Stock
1336545 ARM - FOLLOWER $33.50 To Order
Photo Part No Description Price (each) Stock
1311285 SEAL - VALVE STEM $13.28 To Order
Photo Part No Description Price (each) Stock
LR000633 SWITCH - OIL PRESSURE $14.61 IN STOCK
Photo Part No Description Price (each) Stock
LR022735 BOLT - CYLINDER HEAD $5.82 To Order
Photo Part No Description Price (each) Stock
1331316 BOLT - CYLINDER HEAD $4.30 To Order
Photo Part No Description Price (each) Stock
LR000634 SENSOR - CAMSHAFT POSITION $38.44 To Order
LR052493 SENSOR - CAMSHAFT POSITION $71.09 To Order
View All

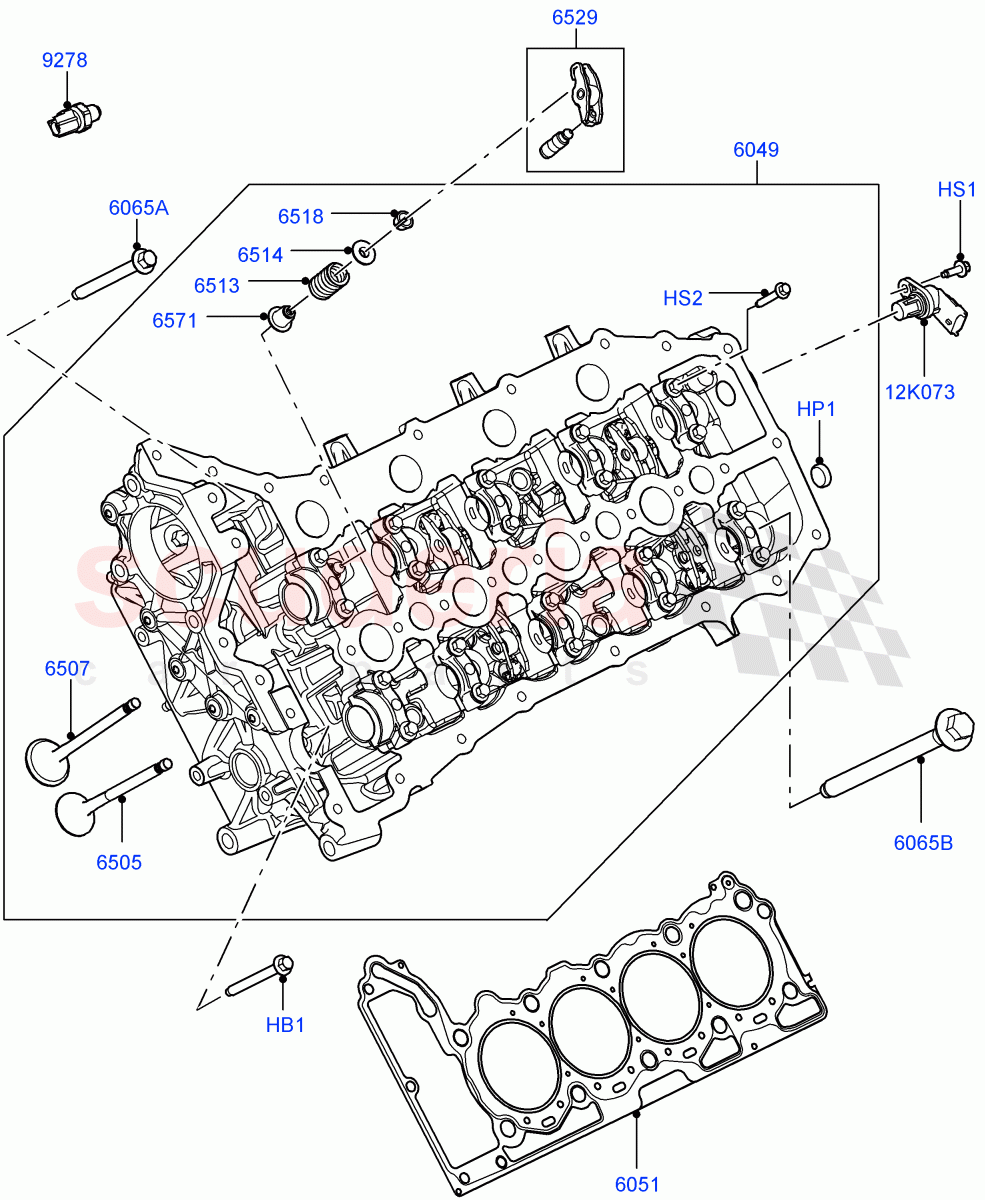

Cylinder Head (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1419374
BOLT
2 Per Head, Cylinder Head Chaincase To Block, M8 X 75MM / From: BA000001 		$4.04 4
HP1 1102774
PLUG - ENGINE
22MM / From: BA000001 		$6.28 6
HS1 4364422
SCREW
Camshaft Position Sensor, M6 X 16MM / From: BA000001 		$1.30 1
HS2 4556038
BOLT
M6 x 35MM / From: BA000001 		$3.17 -
12K073 LR000634
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor / From: BA000001 / To: CA366665 		$38.44 1
12K073 LR052493
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor / From: CA366666 		$71.09 1
6049 LR023009
CYLINDER HEAD
RH / From: BA000001 		$2,977.07 1
6049 LR023010
CYLINDER HEAD
LH / From: BA000001 		$3,036.59 1
6051 LR022899
GASKET-CYLINDER HEAD
RH / From: BA000001 		$123.46 1
6051 LR022897
GASKET - CYLINDER HEAD
LH / From: BA000001 		$123.46 1
6065A LR022735
BOLT - CYLINDER HEAD
Cylinder Head Chaincase To Block, M8 X 82MM / From: BA000001 		$5.82 2
6065B 1331316
BOLT - CYLINDER HEAD
10 Per Head, M13 X 155 / From: BA000001 		$4.30 20
6505 LR008130
VALVE - EXHAUST
8 Per Head / From: BA000001 		$30.97 16
6507 1311281
VALVE - INLET
8 Per Head / From: BA000001 		$20.62 16
6513 LR006720
SPRING - VALVE
16 Per Head / From: BA000001 		$7.10 32
6514 LR022880
RETAINER - VALVE SPRING
16 Per Head / From: BA000001 		$3.90 32
6518 LR022959
COLLET - VALVE SPRING RETAINER
32 Per Head / From: BA000001 		$2.71 64
6529 1336545
ARM - FOLLOWER
16 Per Head / From: BA000001 		$33.50 32
6571 1311285
SEAL - VALVE STEM
16 Per Head / From: BA000001 		$13.28 32
9278 LR000633
SWITCH - OIL PRESSURE
From: BA000001
IN STOCK 		$14.61 1
