Name: Inlet Manifold (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Inlet Manifold (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Inlet Manifold (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

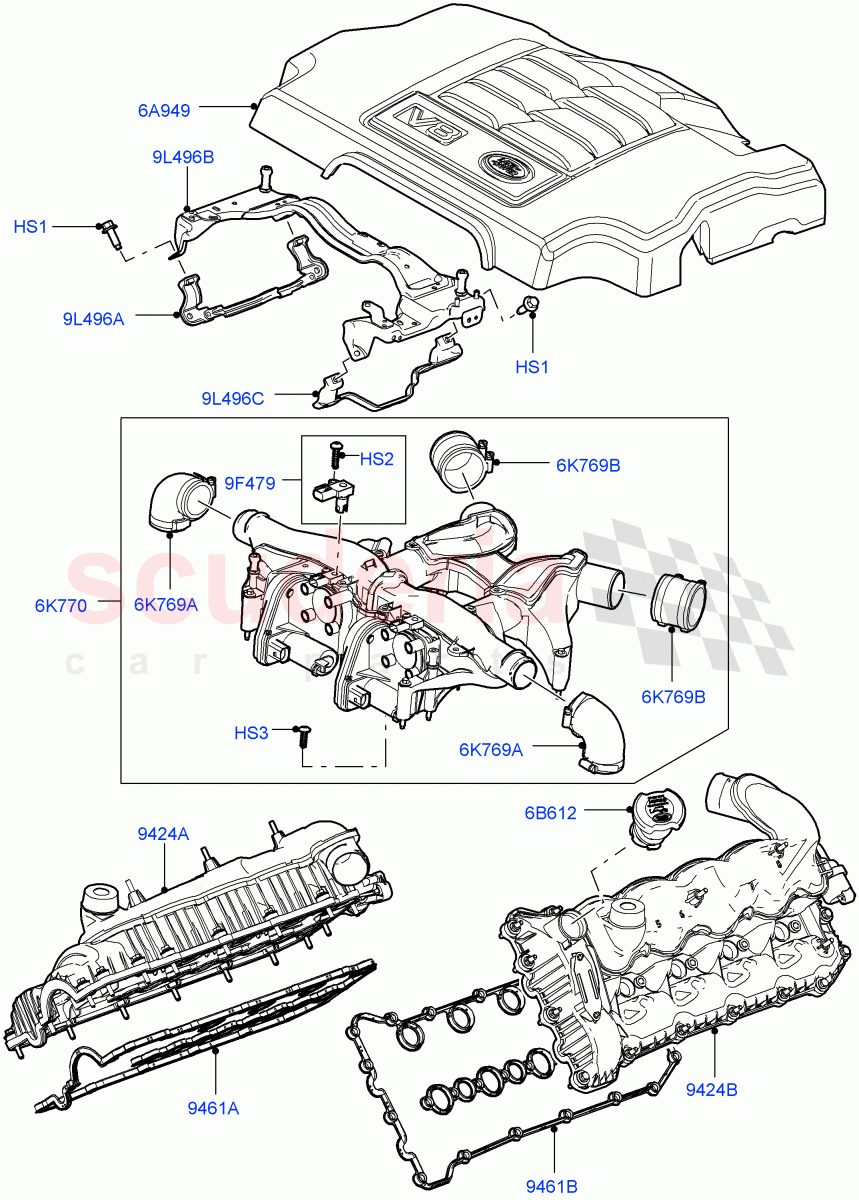

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4364422	SCREW	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004031	SCREW	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004030	SCREW	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012682	INSULATOR - ENGINE COMPARTMENT	$158.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053016	PIPE - OIL FEED	$38.63	IN STOCK
	LR053016	PIPE - OIL FEED	$38.63	IN STOCK
	LR053016	PIPE - OIL FEED	$38.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR020530	DUCT - AIR	$971.35	IN STOCK
	LR020530	DUCT - AIR	$971.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005274	MANIFOLD - INLET	$1,148.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005659	MANIFOLD - INLET	$1,148.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005898	GASKET - INTAKE MANIFOLD	$100.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005897	GASKET - INTAKE MANIFOLD	$100.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007596	SENSOR	$66.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014468	DUCT - AIR	$50.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004076	DUCT - AIR	$43.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002479	BRACKET	$10.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005823	BRACKET	$52.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002478	BRACKET	$11.41	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	4364422	SCREW	4364422 SCREW M6 X 16MM / From: AA000001	$1.30	4
HS2	LR004031	SCREW	LR004031 SCREW 5 x 20MM, MAP Sensor / From: AA000001	$0.08	2
HS3	LR004030	SCREW	LR004030 SCREW M5 x 14MM / From: AA000001	$0.55	4
6A949	LR012682	INSULATOR - ENGINE COMPARTMENT	LR012682 INSULATOR - ENGINE COMPARTMENT Engine / From: AA000001	$158.23	1
6B612	LR053016	PIPE - OIL FEED IN STOCK	LR053016 PIPE - OIL FEED Land Rover Print / From: AA000001 / To: CA393564 IN STOCK	$38.63	1
6B612	LR053016	PIPE - OIL FEED IN STOCK	LR053016 PIPE - OIL FEED Jaguar And Land Rover Print, Service Only / From: CA393565 IN STOCK	$38.63	1
6B612	LR053016	PIPE - OIL FEED IN STOCK	LR053016 PIPE - OIL FEED Jaguar And Land Rover Print, Service Only / From: AA000001 / To: CA393564 IN STOCK	$38.63	1
6K769A	LR014468	DUCT - AIR	LR014468 DUCT - AIR Elbow / From: AA000001	$50.79	2
6K769B	LR004076	DUCT - AIR	LR004076 DUCT - AIR From: AA000001	$43.83	2
6K770	LR020530	DUCT - AIR IN STOCK	LR020530 DUCT - AIR From: AA000001 / To: AA314569 IN STOCK	$971.35	1
6K770	LR020530	DUCT - AIR IN STOCK	LR020530 DUCT - AIR From: AA314570 IN STOCK	$971.35	1
9F479	LR007596	SENSOR	LR007596 SENSOR Sensor - Air Charge Temperature, Sensor - Manifold Absolute Pressure (MAP) / From: AA000001	$66.68	2
9L496A	LR002479	BRACKET	LR002479 BRACKET RH / From: AA000001	$10.60	1
9L496B	LR005823	BRACKET	LR005823 BRACKET Center Support / From: AA000001	$52.60	1
9L496C	LR002478	BRACKET	LR002478 BRACKET LH / From: AA000001	$11.41	1
9424A	LR005274	MANIFOLD - INLET	LR005274 MANIFOLD - INLET RH, Includes Sealing Gasket, With Cylinder Head Cover / From: AA000001	$1,148.10	1
9424B	LR005659	MANIFOLD - INLET	LR005659 MANIFOLD - INLET LH, Includes Sealing Gasket, With Cylinder Head Cover / From: AA000001	$1,148.10	1
9461A	LR005898	GASKET - INTAKE MANIFOLD	LR005898 GASKET - INTAKE MANIFOLD RH, Manifold To Cylinder Head / From: AA000001	$100.90	1
9461B	LR005897	GASKET - INTAKE MANIFOLD	LR005897 GASKET - INTAKE MANIFOLD LH, Manifold To Cylinder Head / From: AA000001	$100.90	1
