Cylinder Head (RH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Cylinder Head (RH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

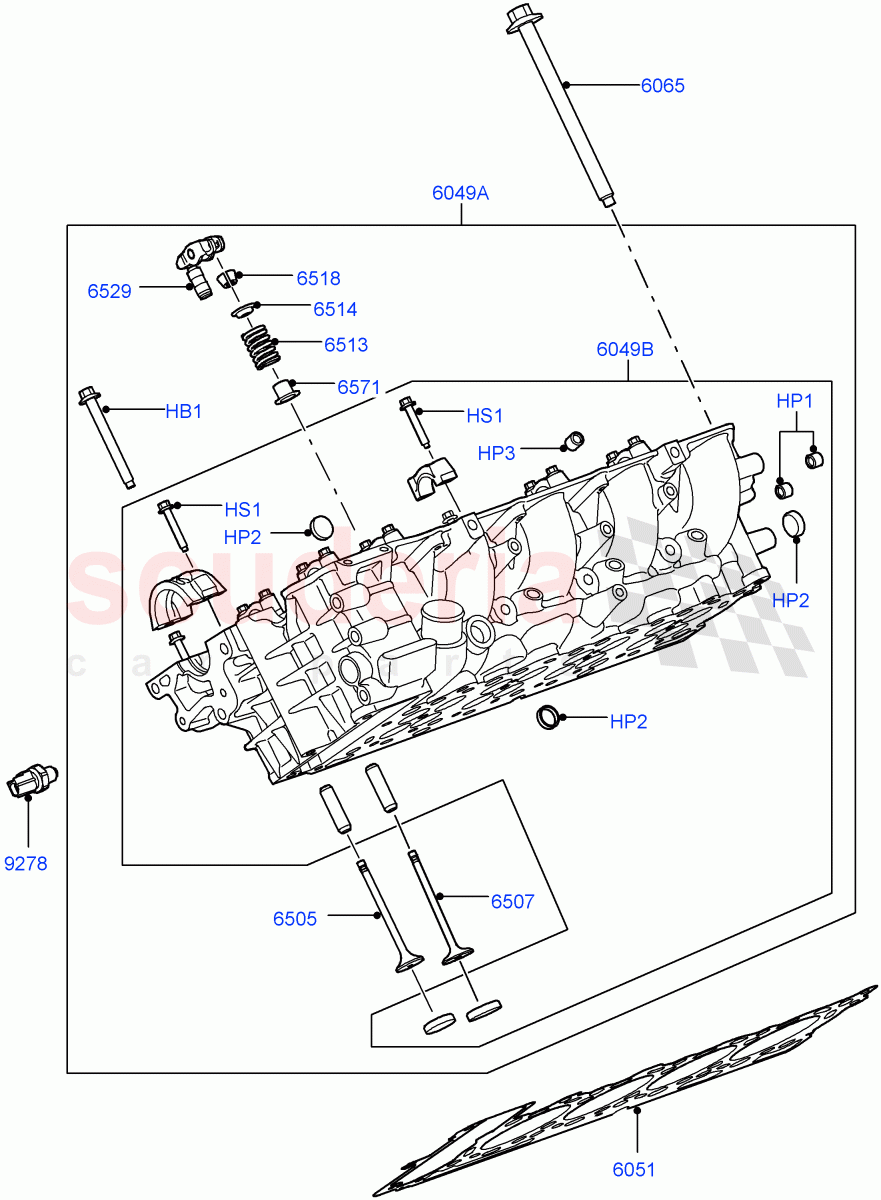

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1419374	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003600	RIVET - BLIND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1102774	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000780	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4556038	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1418984	GASKET - CYLINDER HEAD	Enquire	To Order
	1418985	GASKET - CYLINDER HEAD	Enquire	To Order
	LR000635	GASKET - CYLINDER HEAD	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1331316	BOLT - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008130	VALVE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1311281	VALVE - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006720	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1311283	RETAINER - VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1041831	COLLET - VALVE SPRING RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1336545	ARM - FOLLOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1311285	SEAL - VALVE STEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000633	SWITCH - OIL PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002435	CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002445	CYLINDER HEAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1419374	BOLT	1419374 BOLT M8 X 75MM / From: AA000001	-	3	Enquire
HP1	LR003600	RIVET - BLIND	LR003600 RIVET - BLIND	-	3	Enquire
HP2	1102774	PLUG - ENGINE	1102774 PLUG - ENGINE 22MM / From: AA000001	-	3	Enquire
HP3	LR000780	PLUG - ENGINE	LR000780 PLUG - ENGINE 10 MM / From: AA000001	-	2	Enquire
HS1	4556038	BOLT	4556038 BOLT M6 x 35MM / From: AA000001	-	22	Enquire
6049A	LR002435	CYLINDER HEAD	LR002435 CYLINDER HEAD RH, With Valves / From: AA000001	-	1	Enquire
6049B	LR002445	CYLINDER HEAD	LR002445 CYLINDER HEAD RH, Less Valves / From: AA000001	-	1	Enquire
6051	1418984	GASKET - CYLINDER HEAD	1418984 GASKET - CYLINDER HEAD RH, Grade 1 / From: AA000001	-	-	Enquire
6051	1418985	GASKET - CYLINDER HEAD	1418985 GASKET - CYLINDER HEAD RH, Grade 2 / From: AA000001	-	-	Enquire
6051	LR000635	GASKET - CYLINDER HEAD	LR000635 GASKET - CYLINDER HEAD RH, Grade 3 / From: AA000001	-	-	Enquire
6051	1418987	GASKET - CYLINDER HEAD	1418987 GASKET - CYLINDER HEAD RH, Grade 4 / From: AA000001	-	-	Enquire
6051	1418989	GASKET - CYLINDER HEAD	1418989 GASKET - CYLINDER HEAD RH, Grade 5 / From: AA000001	-	-	Enquire
6065	1331316	BOLT - CYLINDER HEAD	1331316 BOLT - CYLINDER HEAD M13 X 155 / From: AA000001	-	10	Enquire
6505	LR008130	VALVE - EXHAUST	LR008130 VALVE - EXHAUST From: AA000001	-	8	Enquire
6507	1311281	VALVE - INLET	1311281 VALVE - INLET From: AA000001	-	8	Enquire
6513	LR006720	SPRING - VALVE	LR006720 SPRING - VALVE From: AA000001	-	16	Enquire
6514	1311283	RETAINER - VALVE SPRING	1311283 RETAINER - VALVE SPRING From: AA000001	-	16	Enquire
6518	1041831	COLLET - VALVE SPRING RETAINER	1041831 COLLET - VALVE SPRING RETAINER From: AA000001	-	32	Enquire
6529	1336545	ARM - FOLLOWER	1336545 ARM - FOLLOWER From: AA000001	-	16	Enquire
6571	1311285	SEAL - VALVE STEM	1311285 SEAL - VALVE STEM From: AA000001	-	16	Enquire
9278	LR000633	SWITCH - OIL PRESSURE	LR000633 SWITCH - OIL PRESSURE From: AA000001	-	1	Enquire
