Find Your Part

View All

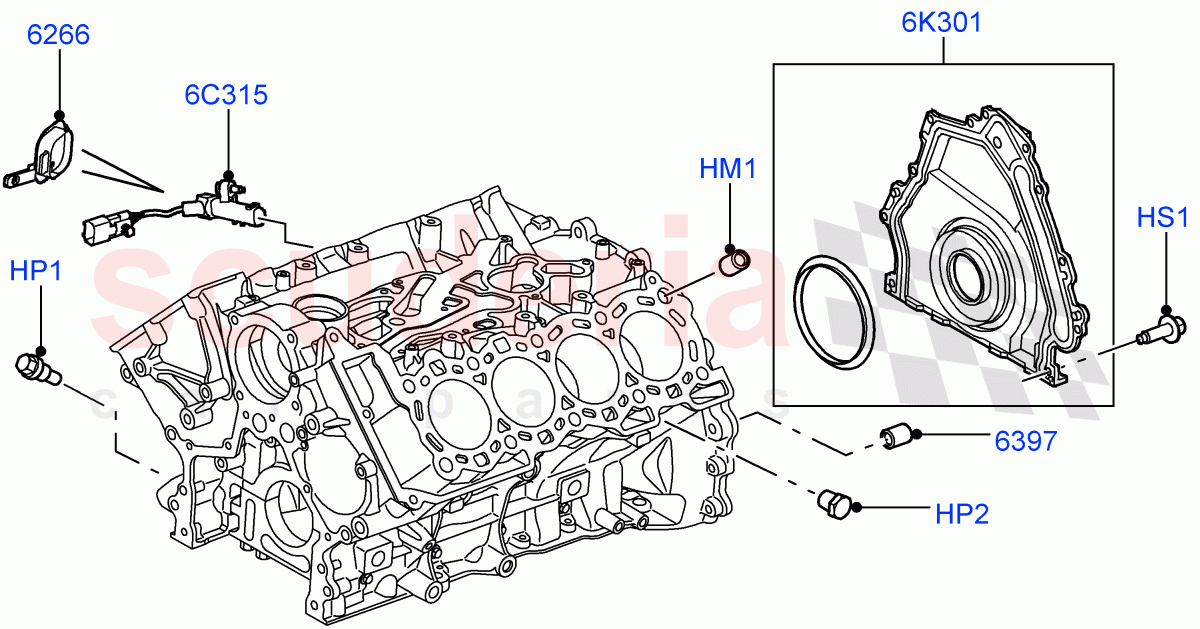

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3026220	PIN	$6.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003996	PLUG	$28.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003517	PLUG - ENGINE	$8.01	To Order

Photo	Part No	Description	Price (each)	Stock
	4364422	SCREW	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	1331302	COVER - ACCESS HOLE	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	4603182	DOWEL	$27.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009793	SENSOR - CRANKSHAFT POSITION - CPS	$176.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005539	RETAINER AND SEAL - CRANKSHAFT	$237.79	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HM1	3026220	PIN	3026220 PIN 4 Per Package, Hollow Type, M16 x 19MM, Straight Dowel / From: AA000001	$6.02	4
HP1	LR003996	PLUG	LR003996 PLUG M12 / From: AA000001	$28.12	1
HP2	LR003517	PLUG - ENGINE	LR003517 PLUG - ENGINE 1/4" x 18 NPSF / From: AA000001	$8.01	1
HS1	4364422	SCREW	4364422 SCREW Engine Cover Rear, M6 X 16MM / From: AA000001	$1.30	9
6C315	LR009793	SENSOR - CRANKSHAFT POSITION - CPS	LR009793 SENSOR - CRANKSHAFT POSITION - CPS From: AA000001	$176.02	1
6K301	LR005539	RETAINER AND SEAL - CRANKSHAFT	LR005539 RETAINER AND SEAL - CRANKSHAFT Engine Cover Rear / From: AA000001	$237.79	1
6266	1331302	COVER - ACCESS HOLE	1331302 COVER - ACCESS HOLE Sensor - Crankshaft Position - CPS / From: AA000001	$1.04	1
6397	4603182	DOWEL	4603182 DOWEL 15.7MM, Pin - Dowell / From: AA000001	$27.62	2
