Exhaust System (Autobiography Black / SV Autobiography) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMGA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Exhaust System (Autobiography Black / SV Autobiography) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0L P...

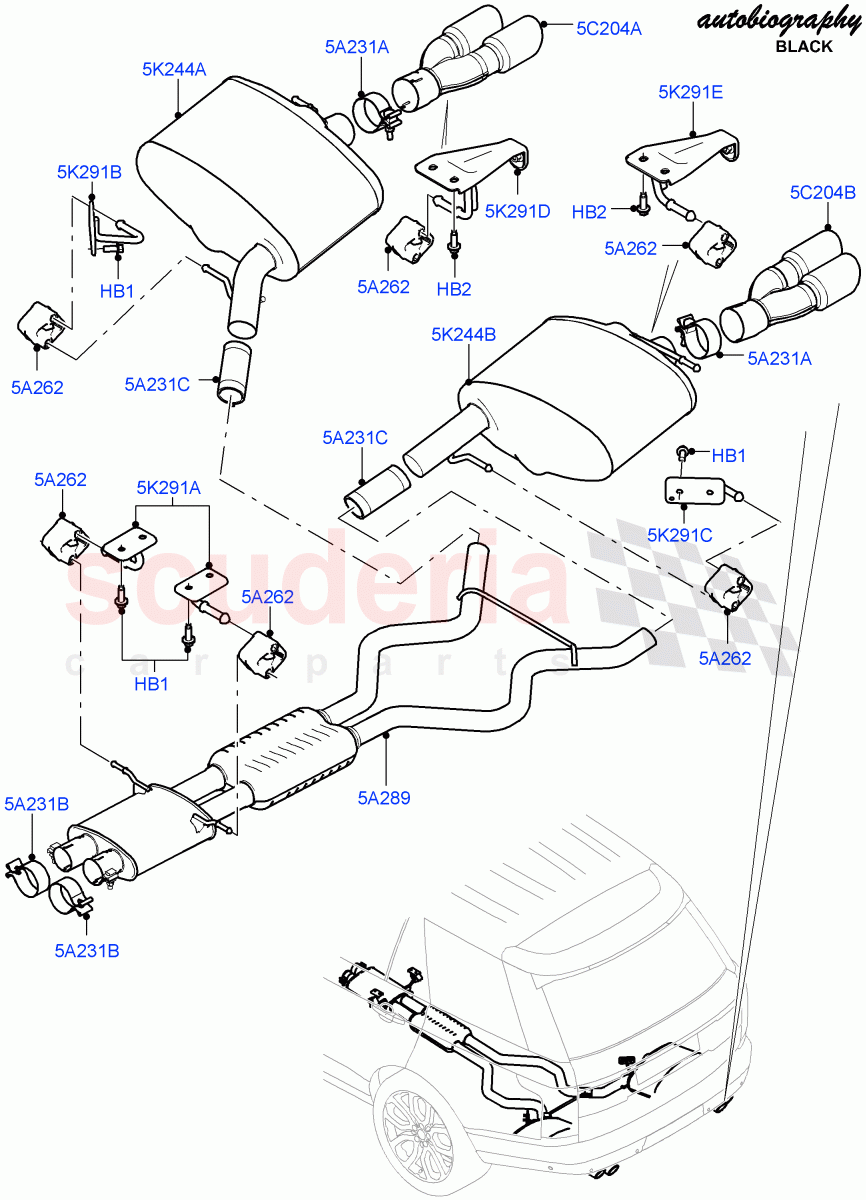

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077701	INSULATOR - RUBBER	$28.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047849	RESONATOR - EXHAUST SYSTEM	$971.35	To Order
	LR077699	RESONATOR - EXHAUST SYSTEM	$939.92	To Order
	LR106790	RESONATOR - EXHAUST SYSTEM	$777.30	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR077700	CLAMP - EXHAUST	$43.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036438	EXHAUST	$35.31	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$81.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073396	FINISHER - EXHAUST	$417.64	To Order
	LR073397	FINISHER - EXHAUST	$417.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073399	FINISHER - EXHAUST	$417.64	To Order
	LR073398	FINISHER - EXHAUST	$417.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077695	MUFFLER - REAR	$894.54	To Order
	LR077698	MUFFLER - REAR	$875.32	To Order
	LR106816	MUFFLER - REAR	$996.24	IN STOCK

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR077696	MUFFLER - REAR	$894.54	To Order
	LR077697	MUFFLER - REAR	$875.32	To Order
	LR106817	MUFFLER - REAR	$996.24	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR035765	BRACKET - EXHAUST PIPE MOUNTING	$30.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035769	BRACKET - EXHAUST PIPE MOUNTING	$31.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035772	BRACKET - EXHAUST PIPE MOUNTING	$31.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044964	BRACKET - REAR MUFFLER	$45.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044965	BRACKET - REAR MUFFLER	$45.18	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: GA000001 IN STOCK	$2.23	8
HB2	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM / From: GA000001	$0.99	8
5A231A	LR077700	CLAMP - EXHAUST	LR077700 CLAMP - EXHAUST 65MM / From: GA000001	$43.01	2
5A231B	LR036438	EXHAUST	LR036438 EXHAUST 60MM / From: GA000001	$35.31	2
5A231C	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM / From: GA000001	$81.53	1
5A262	LR077701	INSULATOR - RUBBER	LR077701 INSULATOR - RUBBER From: GA000001	$28.24	6
5A289	LR047849	RESONATOR - EXHAUST SYSTEM	LR047849 RESONATOR - EXHAUST SYSTEM Standard Wheelbase / From: GA000001 / To: HA999999	$971.35	1
5A289	LR077699	RESONATOR - EXHAUST SYSTEM	LR077699 RESONATOR - EXHAUST SYSTEM Long Wheelbase / From: GA000001 / To: HA999999	$939.92	1
5A289	LR106790	RESONATOR - EXHAUST SYSTEM	LR106790 RESONATOR - EXHAUST SYSTEM Standard Wheelbase / From: JA000001 / To: KA520386	$777.30	1
5A289	LR053255	RESONATOR - EXHAUST SYSTEM	LR053255 RESONATOR - EXHAUST SYSTEM Long Wheelbase / From: JA000001	$757.74	1
5A289	LR120471	RESONATOR - EXHAUST SYSTEM	LR120471 RESONATOR - EXHAUST SYSTEM Standard Wheelbase / From: KA520387	$893.90	1
5C204A	LR073396	FINISHER - EXHAUST	LR073396 FINISHER - EXHAUST Long Wheelbase / RH / From: GA000001 / To: HA999999	$417.64	1
5C204A	LR073397	FINISHER - EXHAUST	LR073397 FINISHER - EXHAUST Standard Wheelbase / RH / From: GA000001 / To: HA999999	$417.64	1
5C204B	LR073399	FINISHER - EXHAUST	LR073399 FINISHER - EXHAUST Long Wheelbase / LH / From: GA000001 / To: HA999999	$417.64	1
5C204B	LR073398	FINISHER - EXHAUST	LR073398 FINISHER - EXHAUST Standard Wheelbase / LH / From: GA000001 / To: HA999999	$417.64	1
5K244A	LR077695	MUFFLER - REAR	LR077695 MUFFLER - REAR Standard Wheelbase / RH / From: GA000001 / To: HA999999	$894.54	1
5K244A	LR077698	MUFFLER - REAR	LR077698 MUFFLER - REAR Long Wheelbase / RH / From: GA000001 / To: HA999999	$875.32	1
5K244A	LR106816	MUFFLER - REAR IN STOCK	LR106816 MUFFLER - REAR Standard Wheelbase / RH / From: JA000001 / To: LA999999 IN STOCK	$996.24	1
5K244A	LR106797	MUFFLER - REAR	LR106797 MUFFLER - REAR Long Wheelbase / RH / From: JA000001 / To: LA999999	$996.24	1
5K244A	LR106797	MUFFLER - REAR	LR106797 MUFFLER - REAR RH / From: MA000001	$996.24	1
5K244B	LR077696	MUFFLER - REAR	LR077696 MUFFLER - REAR Standard Wheelbase / LH / From: GA000001 / To: HA999999	$894.54	1
5K244B	LR077697	MUFFLER - REAR	LR077697 MUFFLER - REAR Long Wheelbase / LH / From: GA000001 / To: HA999999	$875.32	1
5K244B	LR106817	MUFFLER - REAR	LR106817 MUFFLER - REAR Standard Wheelbase / LH / From: JA000001 / To: LA999999	$996.24	1
5K244B	LR106798	MUFFLER - REAR	LR106798 MUFFLER - REAR Long Wheelbase / LH / From: JA000001 / To: LA999999	$996.24	1
5K244B	LR106798	MUFFLER - REAR	LR106798 MUFFLER - REAR LH / From: MA000001	$996.24	1
5K291A	LR035765	BRACKET - EXHAUST PIPE MOUNTING	LR035765 BRACKET - EXHAUST PIPE MOUNTING Front, RH/LH / From: GA000001	$30.11	2
5K291B	LR035769	BRACKET - EXHAUST PIPE MOUNTING	LR035769 BRACKET - EXHAUST PIPE MOUNTING RH, Middle / From: GA000001	$31.63	1
5K291C	LR035772	BRACKET - EXHAUST PIPE MOUNTING	LR035772 BRACKET - EXHAUST PIPE MOUNTING LH, Middle / From: GA000001	$31.63	1
5K291D	LR044964	BRACKET - REAR MUFFLER	LR044964 BRACKET - REAR MUFFLER Rear RH / From: GA000001	$45.18	1
5K291E	LR044965	BRACKET - REAR MUFFLER	LR044965 BRACKET - REAR MUFFLER Rear LH / From: GA000001	$45.18	1
