Name: Exhaust System (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOHA999999)
Rating: 4.8 (1 reviews)

Exhaust System (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Exhaust System (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOHA999999)

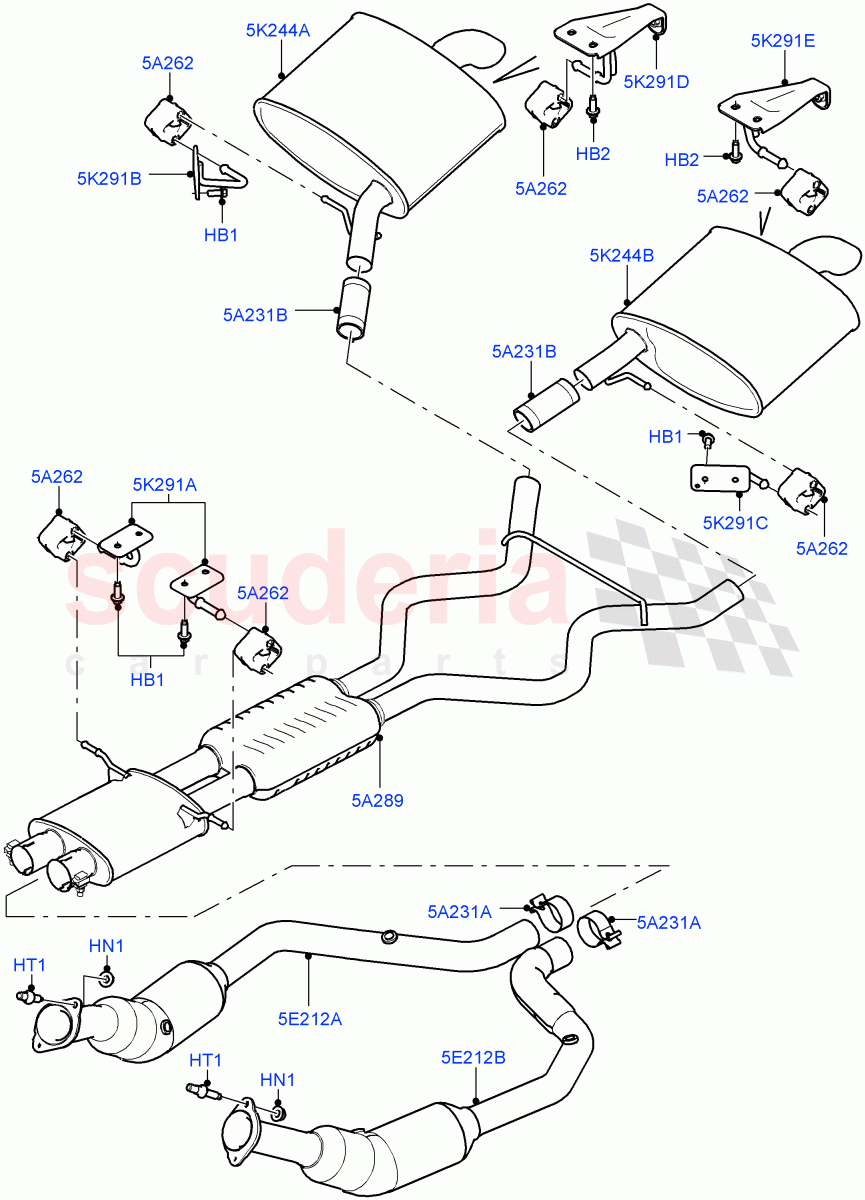

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035857	NUT	$2.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035848	STUD	$3.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	$28.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038532	RESONATOR - EXHAUST SYSTEM	$1,231.07	To Order
	LR053255	RESONATOR - EXHAUST SYSTEM	$757.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036438	EXHAUST	$35.31	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500020	CLAMP - EXHAUST	$77.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037488	CATALYTIC CONVERTER	$2,572.15	To Order
	LR052355	CATALYTIC CONVERTER	$2,120.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037492	CATALYTIC CONVERTER	$2,614.36	To Order
	LR052356	CATALYTIC CONVERTER	$1,896.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038229	MUFFLER - REAR	$814.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038231	MUFFLER - REAR	$840.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035765	BRACKET - EXHAUST PIPE MOUNTING	$30.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035769	BRACKET - EXHAUST PIPE MOUNTING	$31.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035772	BRACKET - EXHAUST PIPE MOUNTING	$31.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035777	BRACKET - REAR MUFFLER	$40.25	To Order
	LR044964	BRACKET - REAR MUFFLER	$45.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035781	BRACKET - REAR MUFFLER	$40.25	To Order
	LR044965	BRACKET - REAR MUFFLER	$45.18	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM IN STOCK	$2.23	8
HB2	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM	$0.99	4
HN1	LR035857	NUT	LR035857 NUT M10	$2.82	4
HT1	LR035848	STUD	LR035848 STUD 60 X 10 X 10MM, Downpipe	$3.89	4
5A231A	LR036438	EXHAUST	LR036438 EXHAUST 60MM, Downpipe, RESONATOR	$35.31	2
5A231B	WCL500020	CLAMP - EXHAUST	WCL500020 CLAMP - EXHAUST 50MM, Muffler	$77.02	2
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER	$28.55	6
5A289	LR038532	RESONATOR - EXHAUST SYSTEM	LR038532 RESONATOR - EXHAUST SYSTEM Standard Wheelbase	$1,231.07	1
5A289	LR053255	RESONATOR - EXHAUST SYSTEM	LR053255 RESONATOR - EXHAUST SYSTEM Long Wheelbase / From: EA000001	$757.74	1
5E212A	LR037488	CATALYTIC CONVERTER	LR037488 CATALYTIC CONVERTER RH, Downpipe / To: EA128869	$2,572.15	1
5E212A	LR052355	CATALYTIC CONVERTER	LR052355 CATALYTIC CONVERTER RH, Downpipe / From: EA128870	$2,120.15	1
5E212B	LR037492	CATALYTIC CONVERTER	LR037492 CATALYTIC CONVERTER LH, Downpipe / To: EA128869	$2,614.36	1
5E212B	LR052356	CATALYTIC CONVERTER	LR052356 CATALYTIC CONVERTER LH, Downpipe / From: EA128870	$1,896.90	1
5K244A	LR038229	MUFFLER - REAR	LR038229 MUFFLER - REAR RH	$814.56	1
5K244B	LR038231	MUFFLER - REAR	LR038231 MUFFLER - REAR LH	$840.44	1
5K291A	LR035765	BRACKET - EXHAUST PIPE MOUNTING	LR035765 BRACKET - EXHAUST PIPE MOUNTING Front, RH/LH	$30.11	2
5K291B	LR035769	BRACKET - EXHAUST PIPE MOUNTING	LR035769 BRACKET - EXHAUST PIPE MOUNTING RH, Middle	$31.63	1
5K291C	LR035772	BRACKET - EXHAUST PIPE MOUNTING	LR035772 BRACKET - EXHAUST PIPE MOUNTING LH, Middle	$31.63	1
5K291D	LR035777	BRACKET - REAR MUFFLER	LR035777 BRACKET - REAR MUFFLER RH, Rear / To: DA105107	$40.25	1
5K291D	LR044964	BRACKET - REAR MUFFLER	LR044964 BRACKET - REAR MUFFLER RH, Rear / From: DA105108	$45.18	1
5K291E	LR035781	BRACKET - REAR MUFFLER	LR035781 BRACKET - REAR MUFFLER LH, Rear / To: DA105107	$40.25	1
5K291E	LR044965	BRACKET - REAR MUFFLER	LR044965 BRACKET - REAR MUFFLER LH, Rear / From: DA105108	$45.18	1
