Name: Exhaust System (Rear Section) (4.4L DOHC DITC V8 Diesel) ((V) FROMGA000001, (V) TOHA999999)
Rating: 5.0 (1 reviews)

View All

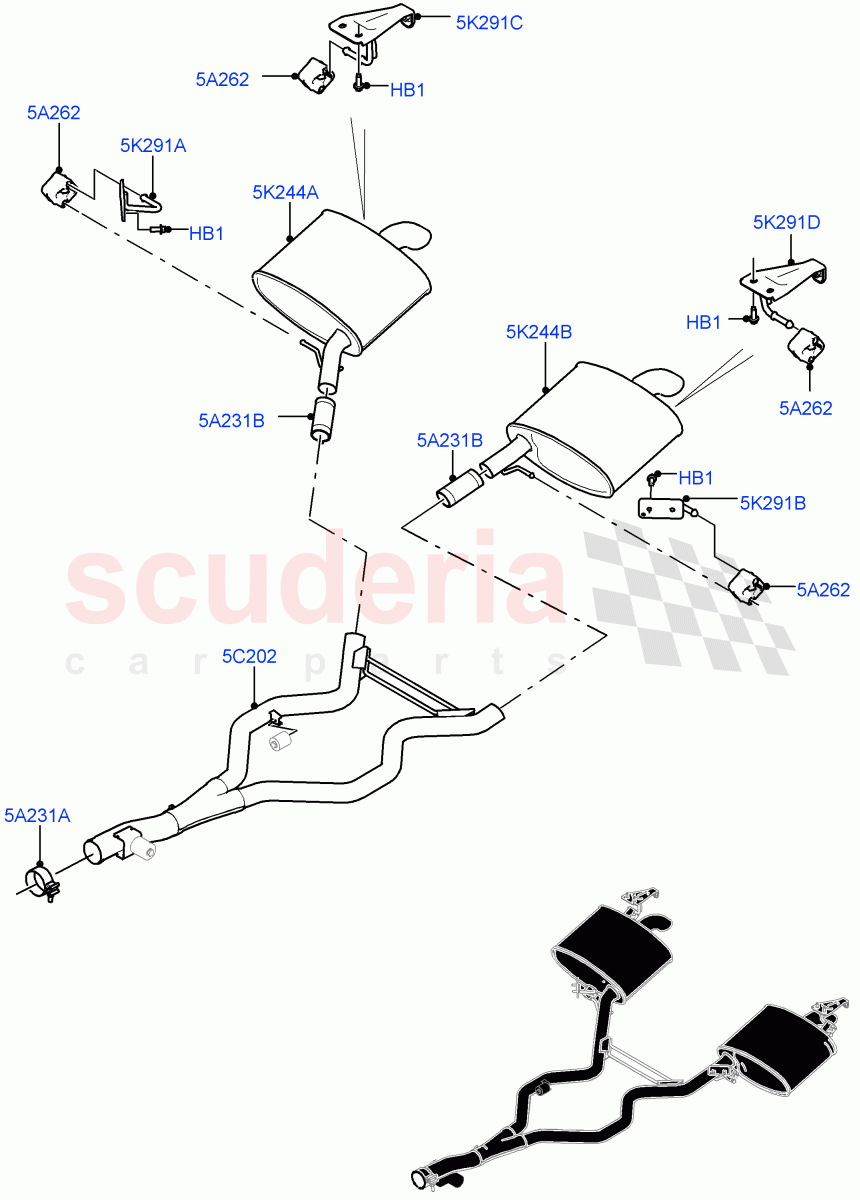

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	$28.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077709	CLAMP - EXHAUST	$42.40	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$81.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038234	MUFFLER - REAR	$785.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038230	MUFFLER - REAR	$785.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035769	BRACKET - EXHAUST PIPE MOUNTING	$31.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035772	BRACKET - EXHAUST PIPE MOUNTING	$31.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044964	BRACKET - REAR MUFFLER	$45.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044965	BRACKET - REAR MUFFLER	$45.18	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM / From: GA000001	$0.99	8
5A231A	LR077709	CLAMP - EXHAUST	LR077709 CLAMP - EXHAUST 70MM, Middle / From: GA000001	$42.40	1
5A231B	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, For Rear Muffler / From: GA000001	$81.53	2
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER From: GA000001	$28.55	4
5C202	LR077729	PIPE - EXHAUST	LR077729 PIPE - EXHAUST Long Wheelbase / Middle, RH/LH / From: GA000001	$754.82	1
5C202	LR080218	PIPE - EXHAUST	LR080218 PIPE - EXHAUST Standard Wheelbase / Middle, RH/LH / From: GA000001	$691.64	1
5K244A	LR038234	MUFFLER - REAR	LR038234 MUFFLER - REAR RH / From: GA000001	$785.47	1
5K244B	LR038230	MUFFLER - REAR	LR038230 MUFFLER - REAR LH / From: GA000001	$785.47	1
5K291A	LR035769	BRACKET - EXHAUST PIPE MOUNTING	LR035769 BRACKET - EXHAUST PIPE MOUNTING RH, Middle / From: GA000001	$31.63	1
5K291B	LR035772	BRACKET - EXHAUST PIPE MOUNTING	LR035772 BRACKET - EXHAUST PIPE MOUNTING LH, Middle / From: GA000001	$31.63	1
5K291C	LR044964	BRACKET - REAR MUFFLER	LR044964 BRACKET - REAR MUFFLER Rear RH / From: GA000001	$45.18	1
5K291D	LR044965	BRACKET - REAR MUFFLER	LR044965 BRACKET - REAR MUFFLER Rear LH / From: GA000001	$45.18	1

Exhaust System (Rear Section) (4.4L Dohc Ditc V8 Diesel) ((V) Fromga000001, (V) Toha999999)

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]
