Name: Exhaust System (Front) (4.4L DOHC DITC V8 Diesel, Proconve L6 Emissions, Euro Stage 4 Emissions) ((V) TOFA999999)
Rating: 5.0 (1 reviews)

Exhaust System (Front) (4.4L DOHC DITC V8 Diesel, Proconve L6 Emissions, Euro Stage 4 Emissions) ((V) TOFA999999) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Exhaust System (Front) (4.4L DOHC DITC V8 Diesel, Proconve L6 Emissions, Euro Stage 4 Emissions)...

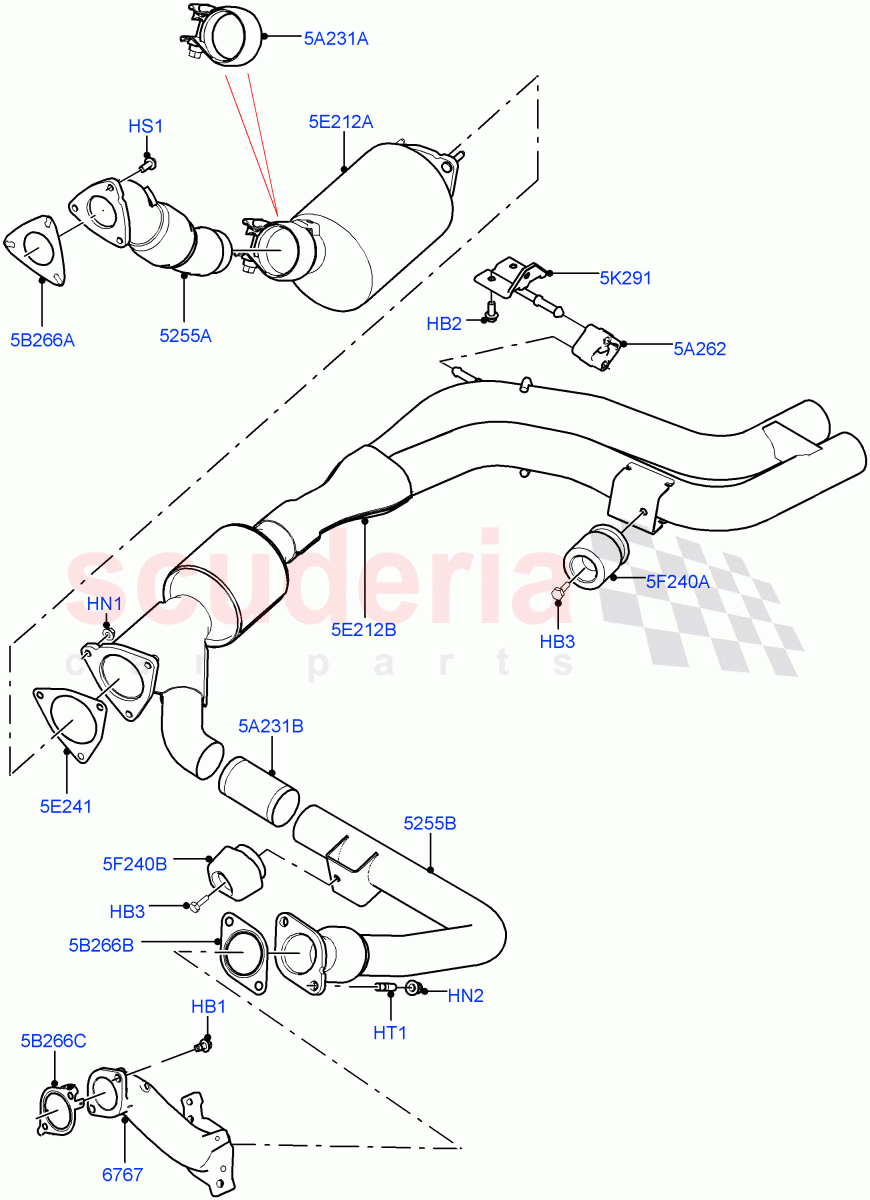

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1419376	BOLT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025680	M10 FLANGED HEX NUT	$7.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LYR500010	STUD	$6.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023024	ELBOW - EXHAUST MANIFOLD	$114.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022652	PIPE - EXHAUST	$400.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038610	PIPE - EXHAUST	$642.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	$28.55	To Order

Photo	Part No	Description	Price (each)	Stock
	WCM500120	GASKET - EXHAUST PIPE	$11.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR035847	BRACKET - EXHAUST PIPE MOUNTING	$22.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007465	CLAMP	$47.87	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$81.53	To Order

Photo	Part No	Description	Price (each)	Stock
	WCM500080	GASKET - EXHAUST PIPE	$15.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032289	GASKET - EXHAUST PIPE	$12.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022779	GASKET - EXHAUST PIPE	$7.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038566	CATALYTIC CONVERTER	$2,254.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038613	CATALYTIC CONVERTER	$3,407.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043280	DAMPER - DAMPING MASS	$115.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043732	DAMPER - DAMPING MASS	$61.19	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	1419376	BOLT	1419376 BOLT Hexagonal Head, M8 X 16MM	$1.54	2
HB2	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM IN STOCK	$2.23	3
HB3	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking	$2.53	2
HN1	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING M8 IN STOCK	$0.41	3
HN2	LR025680	M10 FLANGED HEX NUT IN STOCK	LR025680 M10 FLANGED HEX NUT M10 IN STOCK	$7.66	2
HS1	WYP000025	SCREW	WYP000025 SCREW Hexagonal Head, M8 X 20MM	$2.85	3
HT1	LYR500010	STUD	LYR500010 STUD M10 x 13MM, M10 X 20MM	$6.09	2
5A231A	LR007465	CLAMP	LR007465 CLAMP 60MM, Catalyst	$47.87	1
5A231B	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, Downpipe	$81.53	1
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER	$28.55	1
5B266A	WCM500080	GASKET - EXHAUST PIPE	WCM500080 GASKET - EXHAUST PIPE RH, Downpipe	$15.49	1
5B266B	LR032289	GASKET - EXHAUST PIPE	LR032289 GASKET - EXHAUST PIPE LH, Downpipe	$12.94	1
5B266C	LR022779	GASKET - EXHAUST PIPE	LR022779 GASKET - EXHAUST PIPE Elbow Connector	$7.74	1
5E212A	LR038566	CATALYTIC CONVERTER	LR038566 CATALYTIC CONVERTER Front, With Clamp	$2,254.72	1
5E212B	LR038613	CATALYTIC CONVERTER	LR038613 CATALYTIC CONVERTER Middle Exhaust Section	$3,407.00	1
5E241	WCM500120	GASKET - EXHAUST PIPE IN STOCK	WCM500120 GASKET - EXHAUST PIPE Catalyst IN STOCK	$11.97	1
5F240A	LR043280	DAMPER - DAMPING MASS	LR043280 DAMPER - DAMPING MASS Middle	$115.79	1
5F240B	LR043732	DAMPER - DAMPING MASS	LR043732 DAMPER - DAMPING MASS Front	$61.19	1
5K291	LR035847	BRACKET - EXHAUST PIPE MOUNTING	LR035847 BRACKET - EXHAUST PIPE MOUNTING	$22.42	1
5255A	LR022652	PIPE - EXHAUST	LR022652 PIPE - EXHAUST RH, Downpipe	$400.89	1
5255B	LR038610	PIPE - EXHAUST	LR038610 PIPE - EXHAUST LH, Downpipe	$642.45	1
6767	LR023024	ELBOW - EXHAUST MANIFOLD	LR023024 ELBOW - EXHAUST MANIFOLD LH, Exhaust Manifold	$114.23	1

Exhaust System (Front) (4.4L Dohc Ditc V8 Diesel, Proconve L6 Emissions, Euro Stage 4 Emissions)...

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Exhaust System (Front) (4.4L DOHC DITC V8 Diesel, Proconve L6 Emissions, Euro Stage 4 Emissions)...
