Exhaust System (Exhaust System Sensors) (4.4L DOHC DITC V8 Diesel, EU6 + DPF Emissions) ((V) FROMGA000001) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Exhaust System (Exhaust System Sensors) (4.4L DOHC DITC V8 Diesel, EU6 + DPF Emissions) ((V)...

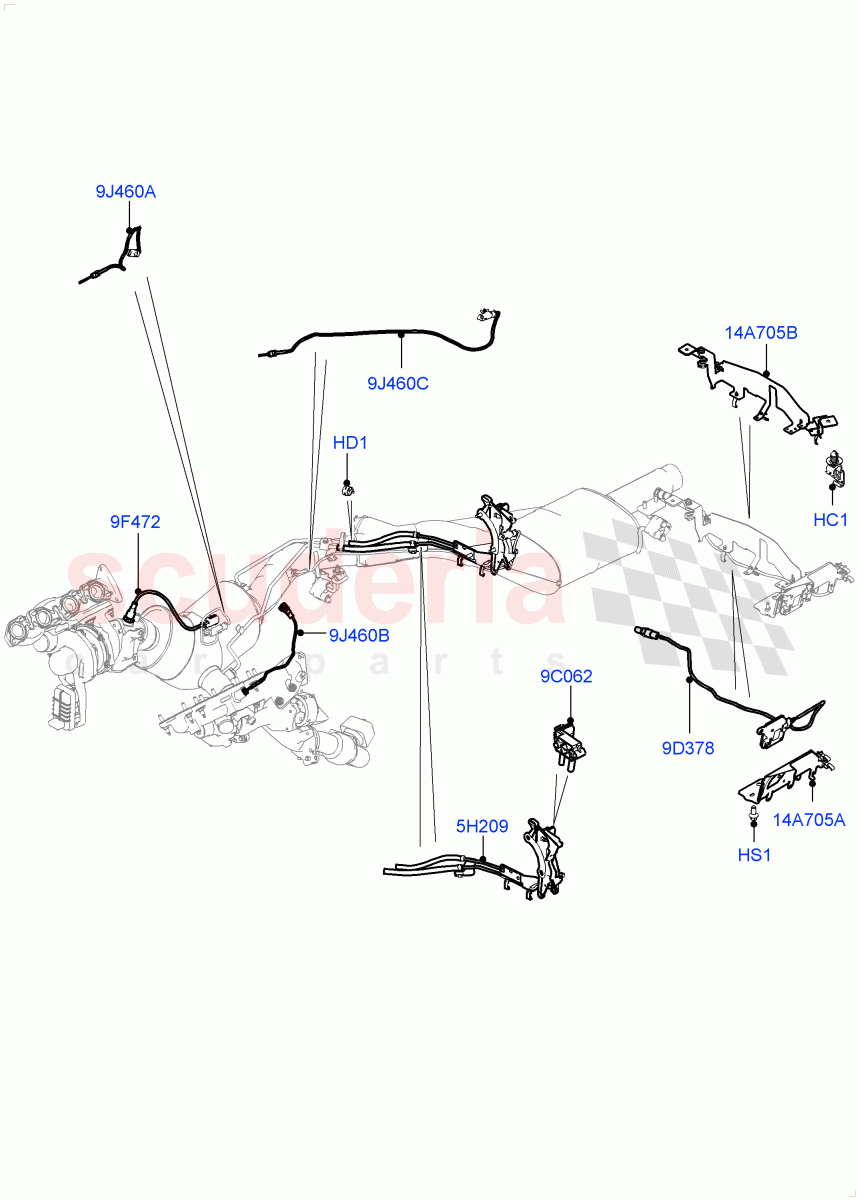

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011519	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YYC500240	CLAMP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108186	SCREW - SOCKET HEAD CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071025	SENSOR	Enquire	To Order
	LR082004	SENSOR - DIFFERENTIAL PRESSURE	Enquire	To Order
	LR095138	SENSOR - DIFFERENTIAL PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122713	SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078810	SENSOR - NOX TRAP TEMPERATURE	Enquire	To Order
	LR104387	SENSOR - NOX TRAP TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062045	SENSOR - HEGO	Enquire	To Order
	LR098299	SENSOR - HEGO	Enquire	To Order
	LR110458	SENSOR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR071020	SENSOR - EXHAUST GAS - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052169	SENSOR - EXHAUST GAS - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071021	SENSOR - EXHAUST GAS - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071906	BRACKET - WIRING	Enquire	To Order
	LR104010	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063179	BRACKET - WIRING	Enquire	To Order
	LR084674	BRACKET - WIRING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR011519	CLIP	LR011519 CLIP 9.5 X 6 X 2	-	3	Enquire
HD1	YYC500240	CLAMP - HOSE	YYC500240 CLAMP - HOSE Exhaust Gas Pressure	-	1	Enquire
HS1	FS108186	SCREW - SOCKET HEAD CAP	FS108186 SCREW - SOCKET HEAD CAP M8 x 18MM	-	2	Enquire
5H209	LR071025	SENSOR	LR071025 SENSOR Exhaust Gas Pressure, Includes Bracket / To: FA999999	-	1	Enquire
5H209	LR082004	SENSOR - DIFFERENTIAL PRESSURE	LR082004 SENSOR - DIFFERENTIAL PRESSURE Exhaust Gas Pressure, Includes Bracket / From: GA000001 / To: GA999999	-	1	Enquire
5H209	LR095138	SENSOR - DIFFERENTIAL PRESSURE	LR095138 SENSOR - DIFFERENTIAL PRESSURE Exhaust Gas Pressure, Includes Bracket / From: HA000001	-	1	Enquire
9C062	LR122713	SENSOR	LR122713 SENSOR Exhaust Gas Pressure / From: GA000001	-	1	Enquire
9D378	LR078810	SENSOR - NOX TRAP TEMPERATURE	LR078810 SENSOR - NOX TRAP TEMPERATURE To: HA348180	-	1	Enquire
9D378	LR104387	SENSOR - NOX TRAP TEMPERATURE	LR104387 SENSOR - NOX TRAP TEMPERATURE From: HA348181	-	1	Enquire
9F472	LR062045	SENSOR - HEGO	LR062045 SENSOR - HEGO RH, Exhaust Manifold, Hego Sensor / To: HA343695	-	1	Enquire
9F472	LR098299	SENSOR - HEGO	LR098299 SENSOR - HEGO Hego Sensor / From: HA343696 / To: JA383741	-	1	Enquire
9F472	LR110458	SENSOR	LR110458 SENSOR Hego Sensor / From: JA383742 / To: KA999999	-	1	Enquire
9F472	LR137404	SENSOR - HEGO	LR137404 SENSOR - HEGO Hego Sensor / From: LA575428 / To: LA599999	-	1	Enquire
9F472	LR137404	SENSOR - HEGO	LR137404 SENSOR - HEGO Hego Sensor / From: LA400000 / To: LA567000	-	1	Enquire
9F472	LR110458	SENSOR	LR110458 SENSOR Hego Sensor / From: LA567000 / To: LA575427	-	1	Enquire
9J460A	LR071020	SENSOR - EXHAUST GAS - TEMPERATURE	LR071020 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature, Filter Diesel Particle	-	1	Enquire
9J460B	LR052169	SENSOR - EXHAUST GAS - TEMPERATURE	LR052169 SENSOR - EXHAUST GAS - TEMPERATURE LH, Exhaust Gas Temperature Sensor, Exhaust Manifold	-	1	Enquire
9J460C	LR071021	SENSOR - EXHAUST GAS - TEMPERATURE	LR071021 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature Sensor, Middle	-	1	Enquire
14A705A	LR071906	BRACKET - WIRING	LR071906 BRACKET - WIRING Module, NOX - Sensor / To: HA359753	-	1	Enquire
14A705A	LR104010	BRACKET - WIRING	LR104010 BRACKET - WIRING Module, NOX - Sensor / From: HA359754	-	1	Enquire
14A705B	LR063179	BRACKET - WIRING	LR063179 BRACKET - WIRING NOX - Sensor, Wire / To: GA271137	-	1	Enquire
14A705B	LR084674	BRACKET - WIRING	LR084674 BRACKET - WIRING NOX - Sensor, Wire / From: GA271138	-	1	Enquire
