Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Fuel Tank & Related Parts (3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 D...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034249 BOLT AND WASHER - HEX.HEAD $2.77 IN STOCK
Photo Part No Description Price (each) Stock
LR037935 BOLT AND WASHER - HEX.HEAD $2.30 IN STOCK
LR001920 BOLT $2.01 To Order
Photo Part No Description Price (each) Stock
LR044902 CLIP - HOSE $2.38 To Order
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE $4.23 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.92 IN STOCK
Photo Part No Description Price (each) Stock
RYG500820 SCREW AND WASHER $0.63 To Order
Photo Part No Description Price (each) Stock
WJ110007L WASHER $0.72 IN STOCK
Photo Part No Description Price (each) Stock
LR053782 SPACER - FUEL TANK MOUNTING $7.00 To Order
Photo Part No Description Price (each) Stock
LR036645 TANK - FUEL $1,307.07 To Order
LR079270 TANK - FUEL $1,307.07 To Order
LR058292 TANK-FUEL $1,307.07 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR021560 CAP - FUEL TANK FILLER $34.60 To Order
LR053666 CAP - FUEL TANK FILLER $26.81 To Order
LR138861 CAP - FUEL TANK FILLER $37.60 To Order
Photo Part No Description Price (each) Stock
LR036659 PIPE - FUEL FILLER $215.41 To Order
LR036660 PIPE - FUEL FILLER $215.41 To Order
LR051672 PIPE - FUEL FILLER $215.41 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR036663 HOSE - FILLER PIPE $94.47 To Order
LR051676 HOSE - FILLER PIPE $215.41 To Order
Photo Part No Description Price (each) Stock
LR037481 TUBE - FUEL VAPOUR $67.82 To Order
LR053462 TUBE - FUEL VAPOUR $67.82 To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET $10.05 ARRIVING SOON
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING $22.37 To Order
Photo Part No Description Price (each) Stock
LR026196 COVER - FUEL SENDER $124.18 To Order
Photo Part No Description Price (each) Stock
LR036705 SHIELD - FUEL TANK $721.45 To Order
LR054812 SHIELD - FUEL TANK $646.61 To Order
LR048108 SHIELD - FUEL TANK $641.84 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR038796 Ring - Retaining Enquire To Order
LR041099 RING - RETAINING $28.94 To Order
Photo Part No Description Price (each) Stock
LR073691 FUNNEL - FUEL FILLER $6.02 To Order
Photo Part No Description Price (each) Stock
LR014047 RESTRICTOR - FUEL $25.12 To Order
Photo Part No Description Price (each) Stock
LR036706 TUBE - FUEL $121.91 To Order
Photo Part No Description Price (each) Stock
LR036758 TUBE - FUEL $65.08 To Order
View All

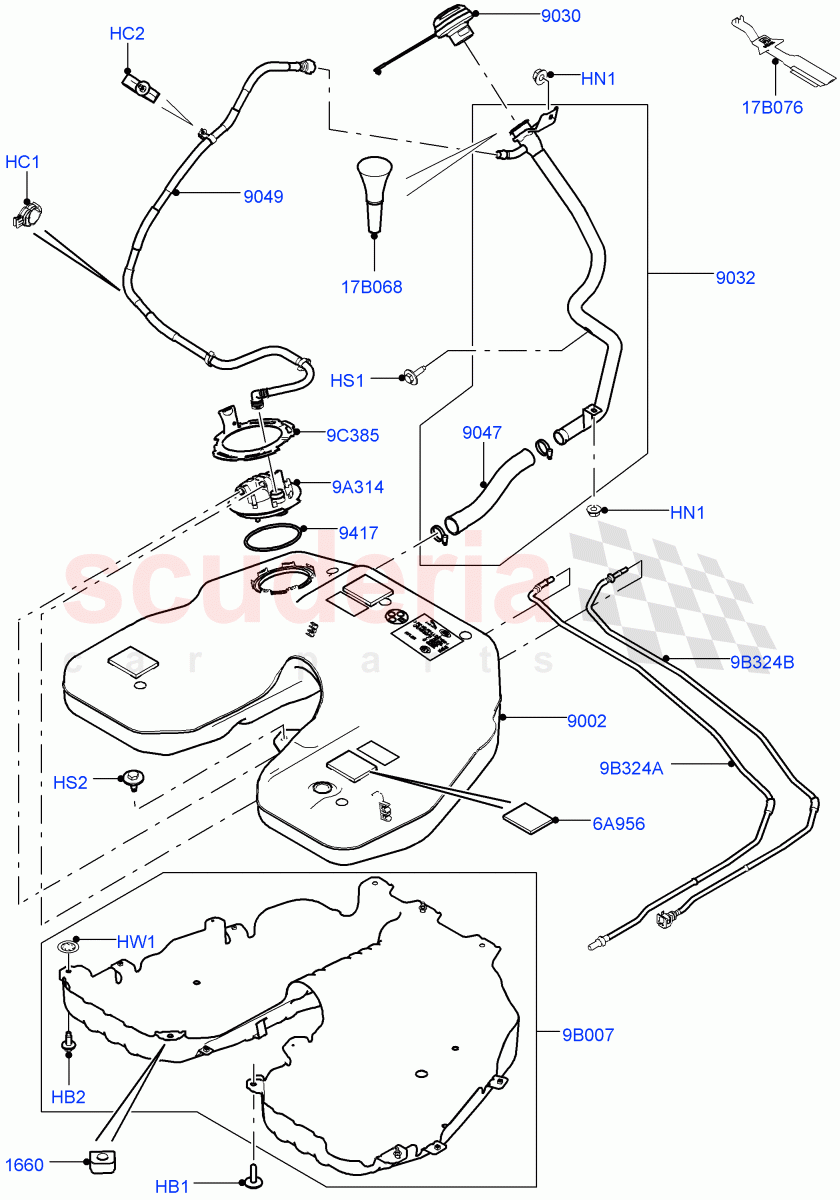

Fuel Tank & Related Parts (3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Low MT ROW) ((V) TOFA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR034249
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 x 37MM
IN STOCK 		$2.77 4
HB2 LR037935
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 X 25MM / From: EA000001
IN STOCK 		$2.30 3
HB2 LR001920
BOLT
M10 X 25MM / To: DA999999 		$2.01 3
HC1 LR044902
CLIP - HOSE
10-25 X 1.5-3, Plastic 		$2.38 1
HC2 LR094032
CLIP - HOSE
Plastic, Upper 		$4.23 2
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.45 2
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.92 1
HS2 RYG500820
SCREW AND WASHER
Hexagonal Head, M6 X 16MM 		$0.63 2
HW1 WJ110007L
WASHER
10MM, Fuel Tank, Shield
IN STOCK 		$0.72 3
6A956 LR025789
FOAM PAD - ENERGY ABSORBING
100mm x 80mm x 10mm 		$22.37 3
9A314 LR026196
COVER - FUEL SENDER 		$124.18 1
9B007 LR036705
SHIELD - FUEL TANK
Protective / To: DA111672 		$721.45 1
9B007 LR054812
SHIELD - FUEL TANK
Protective / From: DA111673 / To: DA999999 		$646.61 1
9B007 LR048108
SHIELD - FUEL TANK
Protective / From: EA000001 / To: EA152724 		$641.84 1
9B007 LR054812
SHIELD - FUEL TANK
Protective / From: EA152725 		$646.61 1
9B324A LR036706
TUBE - FUEL
Feed 		$121.91 1
9B324B LR036758
TUBE - FUEL
Return 		$65.08 1
9C385 LR038796
Ring - Retaining
Cover / To: DA999999 		- 1 Enquire
9C385 LR041099
RING - RETAINING
Cover / From: EA000001 		$28.94 1
17B068 LR073691
FUNNEL - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: FA000001 		$6.02 1
17B076 LR014047
RESTRICTOR - FUEL 		$25.12 1
1660 LR053782
SPACER - FUEL TANK MOUNTING
Long Wheelbase / Fuel Tank / From: EA000001 		$7.00 2
9002 LR036645
TANK - FUEL
To: EA144459 		$1,307.07 1
9002 LR079270
TANK - FUEL
From: FA243284 / To: GA999999 		$1,307.07 1
9002 LR058292
TANK-FUEL
From: EA144460 / To: EA196785 		$1,307.07 1
9002 LR069000
TANK - FUEL
From: EA196786 / To: FA243283 		$1,307.07 1
9030 LR021560
CAP - FUEL TANK FILLER
To: EA134281 		$34.60 1
9030 LR053666
CAP - FUEL TANK FILLER
From: EA134282 / To: MA420874 		$26.81 1
9030 LR138861
CAP - FUEL TANK FILLER
From: MA420875 		$37.60 1
9032 LR036659
PIPE - FUEL FILLER
- Russia / To: DA999999 		$215.41 1
9032 LR036660
PIPE - FUEL FILLER
+ Russia / To: DA999999 		$215.41 1
9032 LR051672
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / From: EA000001 		$215.41 1
9032 LR051673
PIPE - FUEL FILLER
+ Russia / From: EA000001 		$218.46 1
9047 LR036663
HOSE - FILLER PIPE
To: DA999999 		$94.47 1
9047 LR051676
HOSE - FILLER PIPE
From: EA000001 		$215.41 1
9049 LR037481
TUBE - FUEL VAPOUR
To: EA132813 		$67.82 1
9049 LR053462
TUBE - FUEL VAPOUR
From: EA132814 		$67.82 1
9417 LR117476
GASKET
Cover, O-Ring
ARRIVING SOON 		$10.05 1
