Fuel Cooler Assembly (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, 3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Fuel Cooler Assembly (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, 3.0 V6 Diesel...

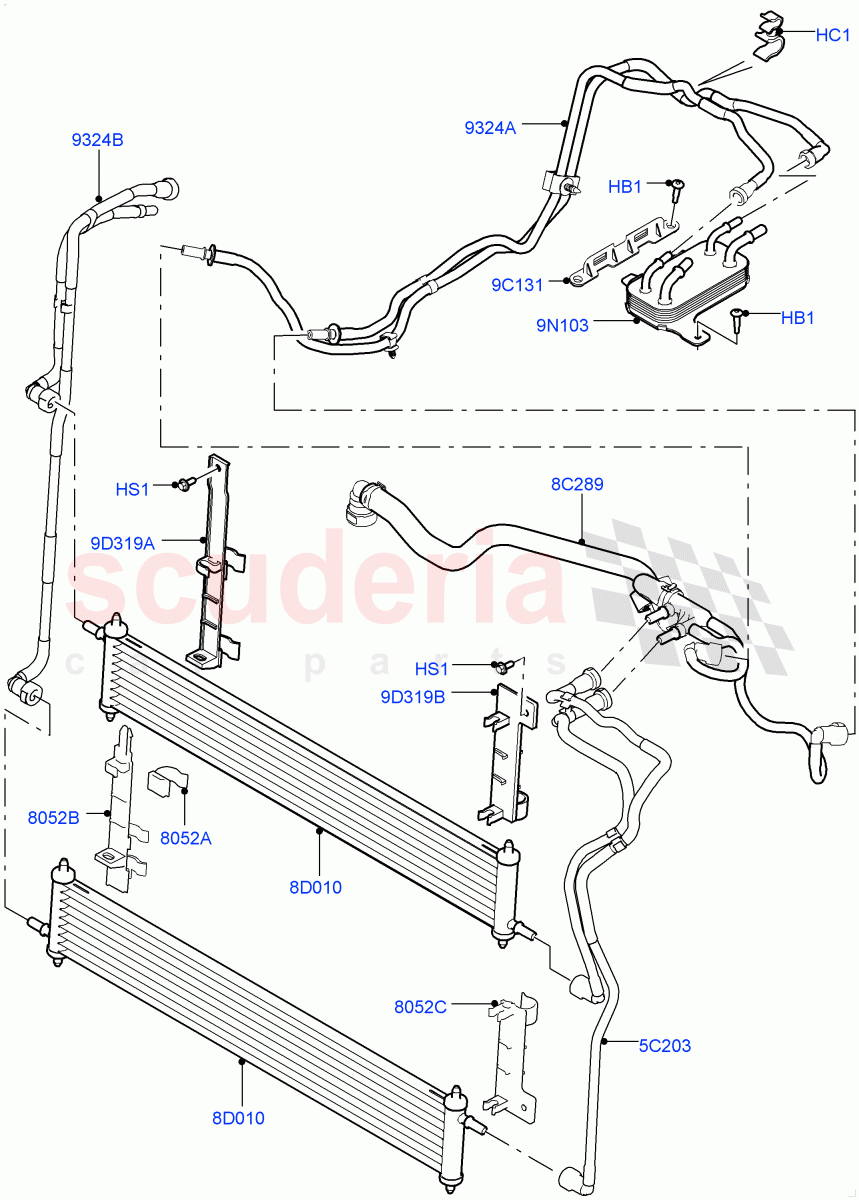

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034354	BOLT - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024832	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP500070	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049010	HOSE - FUEL COOLER	Enquire	To Order
	LR072682	HOSE - FUEL COOLER	Enquire	To Order
	LR071058	HOSE - FUEL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048865	BRACKET - RADIATOR UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048867	BRACKET - RADIATOR	Enquire	To Order
	LR071016	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048866	BRACKET - RADIATOR	Enquire	To Order
	LR071015	DEFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049013	HOSE - ENGINE COOLANT RETURN	Enquire	To Order
	LR071048	HOSE - COOLER TO TUBE	Enquire	To Order
	LR087172	HOSE - COOLER TO TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034575	RADIATOR - AUXILIARY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036520	HOSE - FUEL COOLER	Enquire	To Order
	LR071060	HOSE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049009	HOSE - FUEL COOLER	Enquire	To Order
	LR071062	HOSE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042509	BRACKET - FUEL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038811	COOLER - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034561	BRACKET - RADIATOR	Enquire	To Order
	LR126009	BRACKET	Enquire	To Order
	LR077417	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034559	BRACKET - RADIATOR	Enquire	To Order
	LR126008	BRACKET - RADIATOR	Enquire	To Order
	LR077414	BRACKET - RADIATOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR034354	BOLT - PAN - TORX	LR034354 BOLT - PAN - TORX M6 x 19MM, Torx / From: EA000001	-	3	Enquire
HC1	LR024832	CLIP	LR024832 CLIP 6-6.5 + 9.5-10.5 Pipe Swivel Plastic, Double / From: EA000001	-	1	Enquire
HS1	PYP500070	SCREW	PYP500070 SCREW 6 x 16MM, Hexagonal Head / From: EA000001	-	3	Enquire
5C203	LR049010	HOSE - FUEL COOLER	LR049010 HOSE - FUEL COOLER 3.0 V6 Diesel Electric Hybrid Eng / Fuel Coolant Cooler, Inlet, Set Of 2 Pieces / From: EA000001 / To: FA197998	-	1	Enquire
5C203	LR072682	HOSE - FUEL COOLER	LR072682 HOSE - FUEL COOLER 3.0 V6 Diesel Electric Hybrid Eng / Fuel Coolant Cooler, Inlet, Set Of 2 Pieces / From: FA197999	-	1	Enquire
5C203	LR071058	HOSE - FUEL COOLER	LR071058 HOSE - FUEL COOLER 3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Fuel Coolant Cooler, Inlet, Set Of 2 Pieces / From: GA000001	-	1	Enquire
8C289	LR049013	HOSE - ENGINE COOLANT RETURN	LR049013 HOSE - ENGINE COOLANT RETURN 3.0 V6 Diesel Electric Hybrid Eng / Fuel Coolant Cooler, Inlet, With Valve / From: EA000001	-	1	Enquire
8C289	LR071048	HOSE - COOLER TO TUBE	LR071048 HOSE - COOLER TO TUBE 3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Fuel Coolant Cooler, Inlet, With Valve / From: GA000001 / To: GA293468	-	1	Enquire
8C289	LR087172	HOSE - COOLER TO TUBE	LR087172 HOSE - COOLER TO TUBE 3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Fuel Coolant Cooler, Inlet, With Valve / From: GA293469	-	1	Enquire
8D010	LR034575	RADIATOR - AUXILIARY	LR034575 RADIATOR - AUXILIARY Fuel Coolant Cooler / From: EA000001	-	2	Enquire
9C131	LR042509	BRACKET - FUEL COOLER	LR042509 BRACKET - FUEL COOLER For Fuel Cooler / From: EA000001	-	1	Enquire
9D319A	LR034561	BRACKET - RADIATOR	LR034561 BRACKET - RADIATOR 3.0 V6 D Gen2 Twin Turbo / RH, Radiator Mounting, Upper / From: EA000001 / To: KA548063	-	1	Enquire
9D319A	LR126009	BRACKET	LR126009 BRACKET 3.0 V6 D Gen2 Mono Turbo / RH, Radiator Mounting, Upper / From: KA548064	-	1	Enquire
9D319A	LR077417	BRACKET - RADIATOR	LR077417 BRACKET - RADIATOR 3.0 V6 Diesel Electric Hybrid Eng / RH, Radiator Mounting, Upper / From: EA000001	-	1	Enquire
9D319B	LR034559	BRACKET - RADIATOR	LR034559 BRACKET - RADIATOR 3.0 V6 D Gen2 Mono Turbo / LH, Radiator Mounting, Upper / From: EA000001 / To: KA548063	-	1	Enquire
9D319B	LR126008	BRACKET - RADIATOR	LR126008 BRACKET - RADIATOR 3.0 V6 D Gen2 Mono Turbo / LH, Radiator Mounting, Upper / From: KA548064	-	1	Enquire
9D319B	LR077414	BRACKET - RADIATOR	LR077414 BRACKET - RADIATOR 3.0 V6 Diesel Electric Hybrid Eng / LH, Radiator Mounting, Upper / From: EA000001	-	1	Enquire
9N103	LR038811	COOLER - FUEL	LR038811 COOLER - FUEL Main / From: EA000001	-	1	Enquire
8052A	LR048865	BRACKET - RADIATOR UPPER	LR048865 BRACKET - RADIATOR UPPER RH, Lower, Radiator Mounting, Support / From: EA000001	-	1	Enquire
8052B	LR048867	BRACKET - RADIATOR	LR048867 BRACKET - RADIATOR 3.0 V6 Diesel Electric Hybrid Eng / RH, Lower, Main, Radiator Mounting / From: EA000001	-	1	Enquire
8052B	LR071016	BRACKET - RADIATOR	LR071016 BRACKET - RADIATOR 3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / RH, Lower, Main, Radiator Mounting / From: GA000001	-	1	Enquire
8052C	LR048866	BRACKET - RADIATOR	LR048866 BRACKET - RADIATOR 3.0 V6 Diesel Electric Hybrid Eng / LH, Lower, Radiator Mounting / From: EA000001	-	1	Enquire
8052C	LR071015	DEFLECTOR	LR071015 DEFLECTOR 3.0 V6 D Gen2 Twin Turbo / LH, Lower, Radiator Mounting / From: GA000001	-	1	Enquire
9324A	LR036520	HOSE - FUEL COOLER	LR036520 HOSE - FUEL COOLER 3.0 V6 Diesel Electric Hybrid Eng / Fuel Cooler Inlet, Outlet, Set Of 2 Pieces / From: EA000001	-	1	Enquire
9324A	LR071060	HOSE - FUEL	LR071060 HOSE - FUEL 3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Fuel Cooler Inlet, Outlet, Set Of 2 Pieces / From: GA000001	-	1	Enquire
9324B	LR049009	HOSE - FUEL COOLER	LR049009 HOSE - FUEL COOLER 3.0 V6 Diesel Electric Hybrid Eng / Fuel Coolant Cooler, Outlet, Set Of 2 Pieces / From: EA000001	-	1	Enquire
9324B	LR071062	HOSE - FUEL	LR071062 HOSE - FUEL 3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Fuel Coolant Cooler, Outlet, Set Of 2 Pieces / From: GA000001	-	1	Enquire
