Name: Fuel Lines (Rear) (3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Low MT ROW) ((V) FROMFA000001)
Rating: 5.0 (1 reviews)

Fuel Lines (Rear) (3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Low MT ROW) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Fuel Lines (Rear) (3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Gen2 Mono...

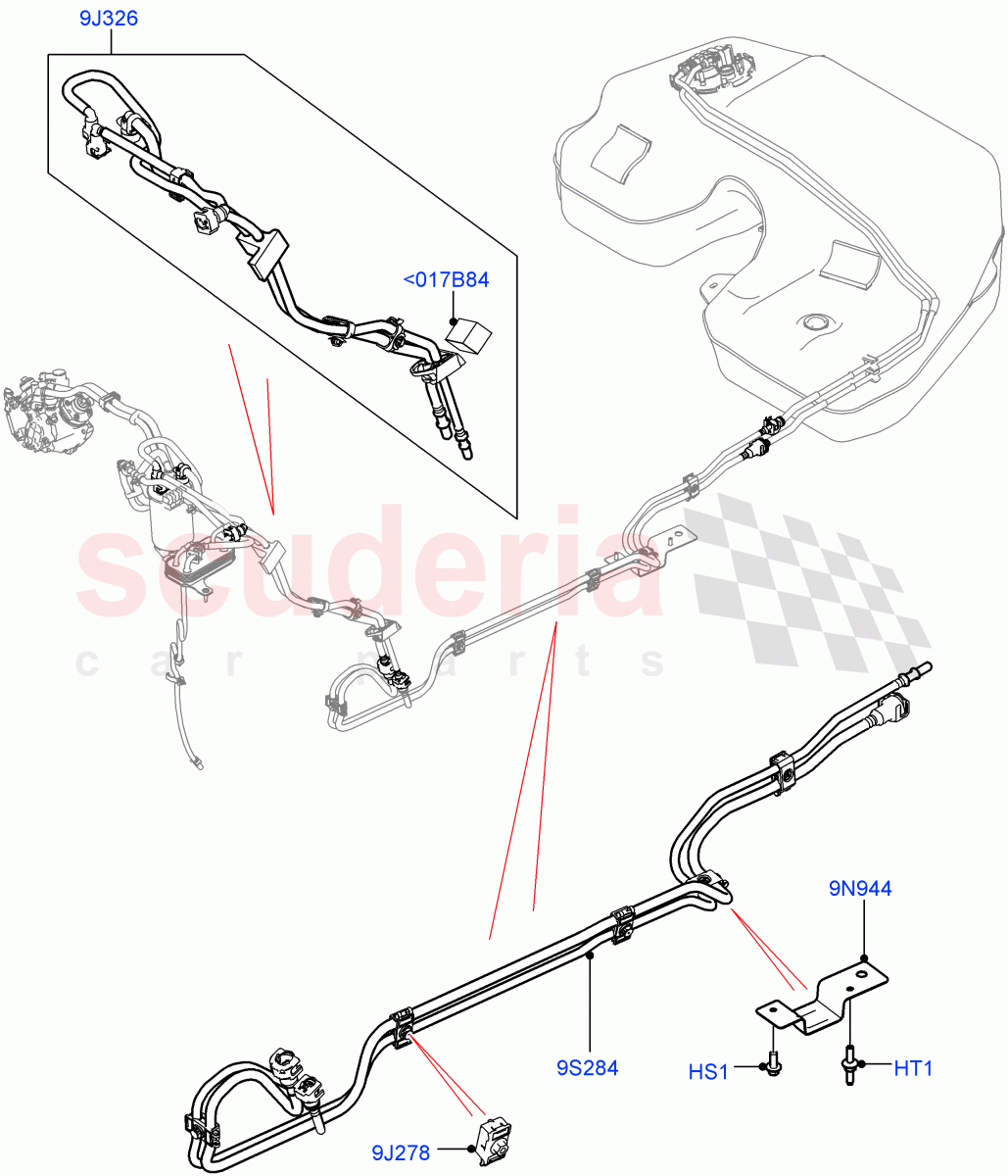

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071705	STUD	$3.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086433	RETAINER - TUBE	$6.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052904	PIPE - FUEL	$166.81	To Order
	LR088541	PIPE - FUEL	$157.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068074	BRACKET - FUEL TUBE SUPPORT	$30.46	To Order
	LR082760	BRACKET - FUEL TUBE SUPPORT	$10.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055689	TUBE - FUEL SUPPLY AND VAPOUR	$269.07	To Order
	LR052076	TUBE - FUEL SUPPLY AND VAPOUR	$277.87	To Order
	LR062453	TUBE - FUEL SUPPLY AND VAPOUR	$384.68	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR044464	PAD - FOAM	$28.18	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<017B84	LR044464	PAD - FOAM	LR044464 PAD - FOAM Seal / From: EA000001	$28.18	1
HS1	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM IN STOCK	$1.19	2
HT1	LR071705	STUD	LR071705 STUD M6 X 20 + M6 X 16	$3.94	1
9J278	LR086433	RETAINER - TUBE	LR086433 RETAINER - TUBE From: EA000001	$6.28	5
9J326	LR052904	PIPE - FUEL	LR052904 PIPE - FUEL Feed, From Fuel Cooler To Fuel Filter, Front, Return, Set Of 3 Pieces / From: EA000001 / To: GA311792	$166.81	1
9J326	LR088541	PIPE - FUEL	LR088541 PIPE - FUEL Feed, From Fuel Cooler To Fuel Filter, Front, Return, Set Of 3 Pieces / From: GA311793	$157.74	1
9N944	LR068074	BRACKET - FUEL TUBE SUPPORT	LR068074 BRACKET - FUEL TUBE SUPPORT To: GA999999	$30.46	1
9N944	LR082760	BRACKET - FUEL TUBE SUPPORT	LR082760 BRACKET - FUEL TUBE SUPPORT From: HA000001	$10.70	1
9S284	LR055689	TUBE - FUEL SUPPLY AND VAPOUR	LR055689 TUBE - FUEL SUPPLY AND VAPOUR Standard Wheelbase / Rear, Set Of 2 Pieces / From: EA000001 / To: EA166166	$269.07	1
9S284	LR052076	TUBE - FUEL SUPPLY AND VAPOUR	LR052076 TUBE - FUEL SUPPLY AND VAPOUR Long Wheelbase / Rear, Set Of 2 Pieces / From: EA000001 / To: GA287639	$277.87	1
9S284	LR062453	TUBE - FUEL SUPPLY AND VAPOUR	LR062453 TUBE - FUEL SUPPLY AND VAPOUR Standard Wheelbase / Rear, Set Of 2 Pieces / From: EA166167 / To: GA274028	$384.68	1
9S284	LR072676	TUBE - FUEL SUPPLY AND VAPOUR	LR072676 TUBE - FUEL SUPPLY AND VAPOUR Standard Wheelbase / Rear, Set Of 2 Pieces / From: GA274029 / To: HA351986	$318.47	1
9S284	LR086378	TUBE - FUEL SUPPLY AND VAPOUR	LR086378 TUBE - FUEL SUPPLY AND VAPOUR Long Wheelbase / Rear, Set Of 2 Pieces / From: GA287640 / To: GA999999	$272.67	1
9S284	LR086378	TUBE - FUEL SUPPLY AND VAPOUR	LR086378 TUBE - FUEL SUPPLY AND VAPOUR Long Wheelbase / Rear, Set Of 2 Pieces / From: HA000001	$272.67	1
9S284	LR086377	TUBE - FUEL SUPPLY AND VAPOUR	LR086377 TUBE - FUEL SUPPLY AND VAPOUR Standard Wheelbase / Rear, Set Of 2 Pieces / From: HA351987	$204.34	1
