Name: Water Pump (Solihull Plant Build, Auxiliary Unit) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Low MT ROW) ((V) FROMFA000001)
Rating: 4.6 (1 reviews)

Water Pump (Solihull Plant Build, Auxiliary Unit) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Low MT ROW) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Water Pump (Solihull Plant Build, Auxiliary Unit) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF...

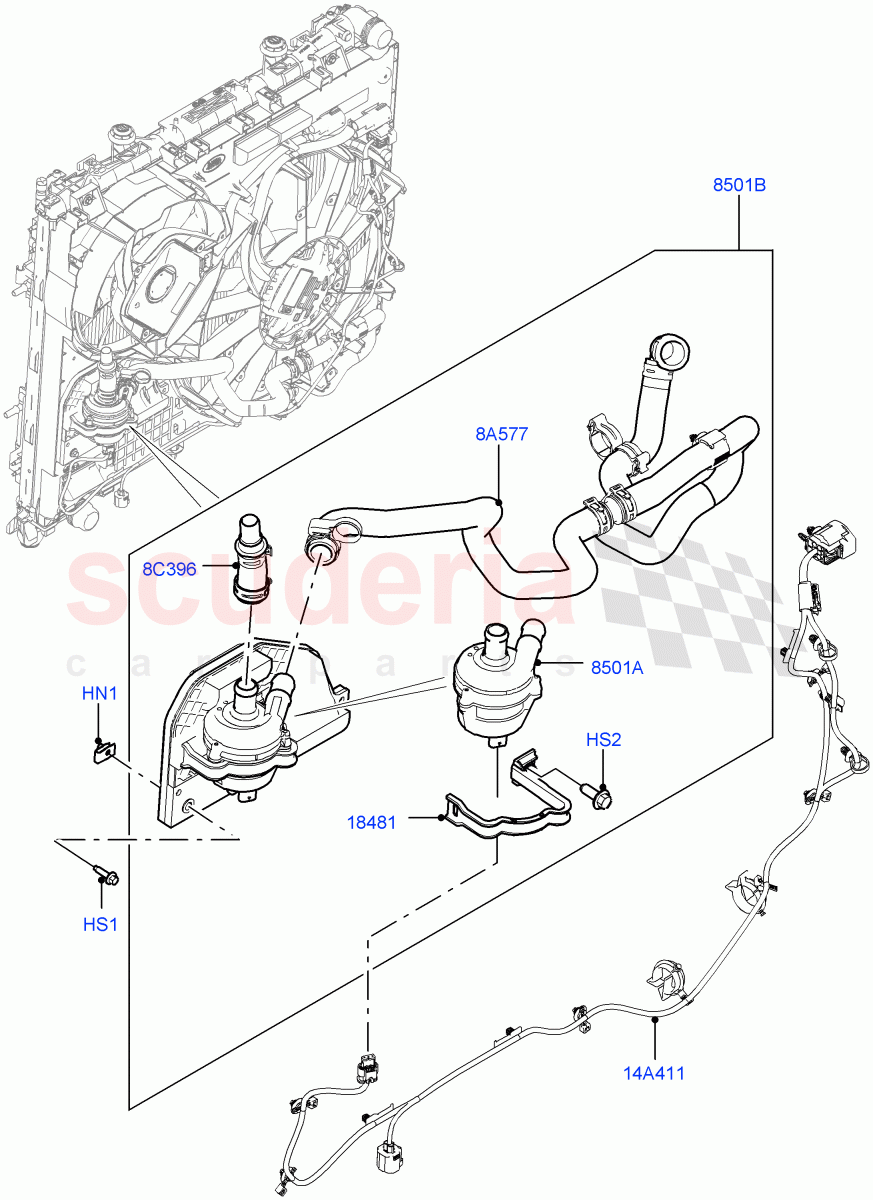

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR048864	SCREW	$7.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048860	CLAMP - WATER PUMP MOUNTING	$14.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061983	PUMP - WATER	$260.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063048	PUMP - WATER	$285.06	To Order
	LR082872	PUMP - WATER	$361.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062458	HOSE	$246.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062457	HOSE - WATER	$55.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR064172	WIRING - WATER PUMP	$57.05	To Order
	LR064171	WIRING - WATER PUMP	$61.89	To Order
	LR076109	WIRING - TRACTION BATTERY	$60.05	To Order

...and 6 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 / From: FA000001 IN STOCK	$1.57	1
HS1	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: FA000001 IN STOCK	$3.31	1
HS2	LR048864	SCREW	LR048864 SCREW 6 x 16MM, Hexagonal Head / From: FA000001	$7.16	1
8A577	LR062458	HOSE	LR062458 HOSE Outlet, Water Pump / From: FA000001	$246.77	1
8C396	LR062457	HOSE - WATER	LR062457 HOSE - WATER Outlet, Water Charge Air Cooler / From: FA000001	$55.22	1
14A411	LR064172	WIRING - WATER PUMP	LR064172 WIRING - WATER PUMP Navigation Center - Europe/ROW / From: FA000001 / To: FA999999	$57.05	1
14A411	LR064171	WIRING - WATER PUMP	LR064171 WIRING - WATER PUMP With Colour Nav. System NAS / From: FA000001 / To: FA999999	$61.89	1
14A411	LR076109	WIRING - TRACTION BATTERY	LR076109 WIRING - TRACTION BATTERY With Colour Nav. System NAS / From: GA000001 / To: GA298602	$60.05	1
14A411	LR089626	WIRING - WATER PUMP	LR089626 WIRING - WATER PUMP Crankcase Pressure Sensor, LEV 160 / From: GA298603 / To: KA550665	$63.22	1
14A411	LR076110	WIRING - WATER PUMP	LR076110 WIRING - WATER PUMP Navigation Center - Europe/ROW / From: GA000001 / To: GA298602	$85.46	1
14A411	LR089627	WIRING - WATER PUMP	LR089627 WIRING - WATER PUMP Less Crankcase Pressure Sensor, Proconve L6 Emissions / From: GA298603 / To: KA550665	$85.46	1
14A411	LR128784	WIRING - WATER PUMP	LR128784 WIRING - WATER PUMP Crankcase Pressure Sensor / From: KA550666	$80.62	1
14A411	LR128785	WIRING - WATER PUMP	LR128785 WIRING - WATER PUMP Less Crankcase Pressure Sensor, Less Immersion Heater / From: KA550666	$77.89	1
14A411	LR128786	WIRING - WATER PUMP	LR128786 WIRING - WATER PUMP Immersion Heater - 700W / 110V, Less Crankcase Pressure Sensor / From: KA550666	$80.62	1
8501A	LR061983	PUMP - WATER	LR061983 PUMP - WATER From: FA000001	$260.37	1
8501B	LR063048	PUMP - WATER	LR063048 PUMP - WATER Auxiliary Water Pump Assembly / From: FA000001 / To: FA999999	$285.06	1
8501B	LR082872	PUMP - WATER	LR082872 PUMP - WATER Auxiliary Water Pump Assembly / From: GA000001	$361.67	1
18481	LR048860	CLAMP - WATER PUMP MOUNTING	LR048860 CLAMP - WATER PUMP MOUNTING Water Pump / From: FA000001	$14.49	1
