Water Pump (Auxiliary Unit) (3.0 V6 Diesel Electric Hybrid Eng) ((V) Fromfa000001)

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Water Pump (Auxiliary Unit) (3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMFA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.57 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.31 IN STOCK
Photo Part No Description Price (each) Stock
LR048864 SCREW $7.16 To Order
Photo Part No Description Price (each) Stock
LR048856 PUMP - WATER $320.62 To Order
LR061983 PUMP - WATER $260.37 To Order
Photo Part No Description Price (each) Stock
LR048858 BRACKET - PUMP SUPPORT $37.24 To Order
LR064178 BRACKET - PUMP SUPPORT $44.37 To Order
Photo Part No Description Price (each) Stock
LR052170 CLIP $1.58 To Order
Photo Part No Description Price (each) Stock
LR051690 WIRING - TRACTION BATTERY $207.31 To Order
LR064073 WIRING - TRACTION BATTERY $67.26 To Order
Photo Part No Description Price (each) Stock
LR048857 CLAMP - WATER PUMP MOUNTING $17.26 To Order
Photo Part No Description Price (each) Stock
LR048860 CLAMP - WATER PUMP MOUNTING $14.49 To Order
Photo Part No Description Price (each) Stock
LR048862 HOSE - WATER $59.38 To Order
Photo Part No Description Price (each) Stock
LR048861 HOSE - WATER $42.22 To Order
Photo Part No Description Price (each) Stock
LR048863 HOSE - WATER $72.48 To Order
Photo Part No Description Price (each) Stock
LR048859 HOSE - WATER $93.10 To Order
View All

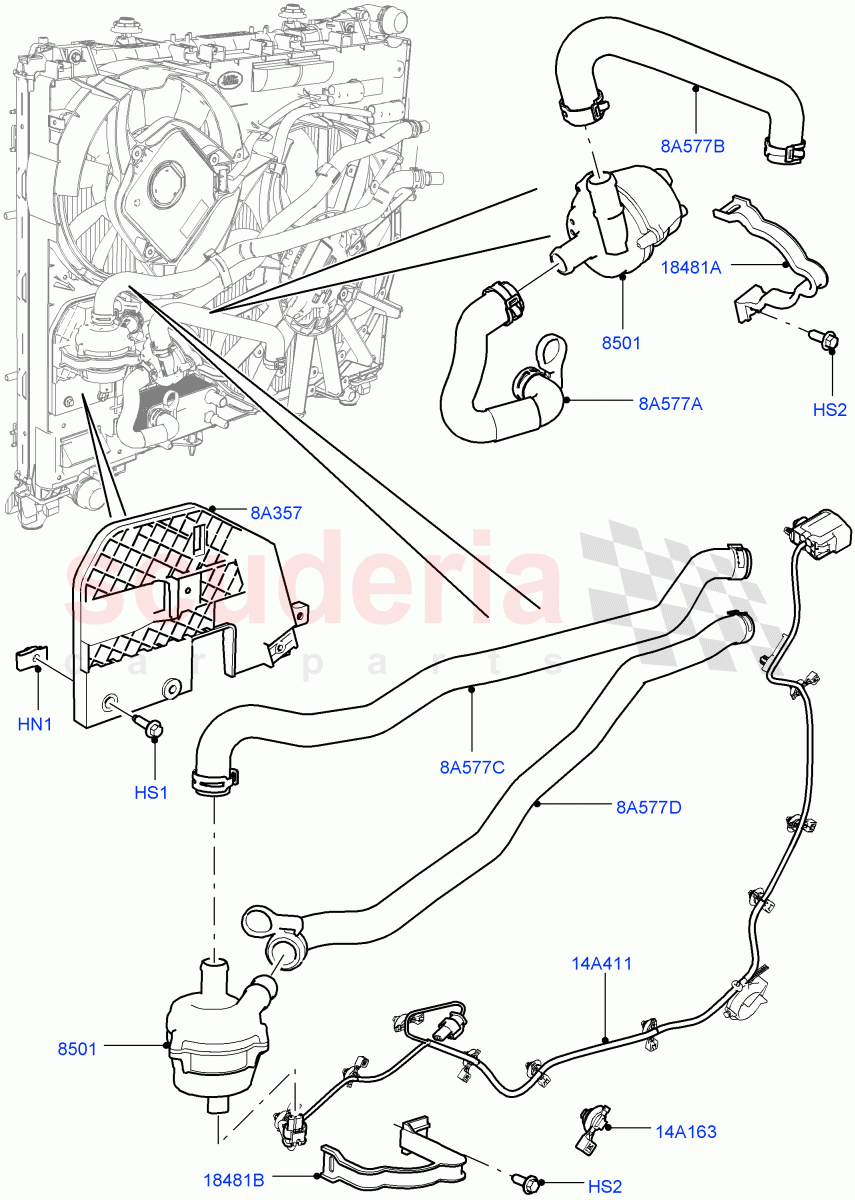

Water Pump (Auxiliary Unit) (3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR000053
NUT - FLANGED
M6 / From: EA000001
IN STOCK 		$1.57 1
HS1 RYG500220
SCREW
Hexagonal Head, M6 X 20MM / From: EA000001
IN STOCK 		$3.31 1
HS2 LR048864
SCREW
6 x 16MM, Hexagonal Head / From: EA000001 		$7.16 1
8A357 LR048858
BRACKET - PUMP SUPPORT
Support, Water Pump / From: EA000001 / To: EA999999 		$37.24 1
8A357 LR064178
BRACKET - PUMP SUPPORT
Support, Water Pump / From: FA000001 		$44.37 1
8A577A LR048862
HOSE - WATER
Inlet, Water Pump / From: EA000001 		$59.38 1
8A577B LR048861
HOSE - WATER
Outlet, Water Pump / From: EA000001 		$42.22 1
8A577C LR048863
HOSE - WATER
Inlet, Water Pump / From: EA000001 		$72.48 1
8A577D LR048859
HOSE - WATER
Outlet, Water Pump / From: EA000001 		$93.10 1
14A163 LR052170
CLIP
Single / From: EA000001 		$1.58 9
14A411 LR051690
WIRING - TRACTION BATTERY
Water Pump / From: EA000001 / To: EA196785 		$207.31 1
14A411 LR064073
WIRING - TRACTION BATTERY
Water Pump / From: EA196786 		$67.26 1
8501 LR048856
PUMP - WATER
From: EA000001 / To: GA318860 		$320.62 1
8501 LR061983
PUMP - WATER
From: GA318861 / To: GA999999 		$260.37 1
18481A LR048857
CLAMP - WATER PUMP MOUNTING
Water Pump / From: EA000001 		$17.26 1
18481B LR048860
CLAMP - WATER PUMP MOUNTING
Water Pump / From: EA000001 		$14.49 1
