Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Cooling System Pipes And Hoses (Engine) (3.0 V6 D Low MT ROW, 8 Speed Auto Trans ZF 8HP70 4WD, (-)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4147433 BOLT $1.58 IN STOCK
LR105435 BOLT $1.08 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.57 IN STOCK
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.61 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.31 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.92 IN STOCK
Photo Part No Description Price (each) Stock
1336551 GASKET $3.57 To Order
Photo Part No Description Price (each) Stock
LR077702 HOSE - RADIATOR TO ENG. VENT ELBOW $30.01 To Order
LR077702 HOSE - RADIATOR TO ENG. VENT ELBOW $30.01 To Order
Photo Part No Description Price (each) Stock
LR063042 THERMOSTAT AND HOUSING $708.25 To Order
LR078765 THERMOSTAT AND HOUSING $369.60 To Order
LR082871 THERMOSTAT $438.31 To Order
Photo Part No Description Price (each) Stock
LR073372 CONNECTION - WATER OUTLET $62.71 IN STOCK
Photo Part No Description Price (each) Stock
LR126012 HOSE - OIL COOLER $72.06 To Order
LR128619 HOSE - OIL COOLER $72.06 To Order
LR062074 HOSE - OIL COOLER $72.06 To Order
Photo Part No Description Price (each) Stock
LR062082 HOSE - THERMOSTAT $98.82 To Order
LR078766 HOSE - THERMOSTAT $145.71 To Order
Photo Part No Description Price (each) Stock
LR073371 HOSE - RADIATOR $114.44 To Order
LR071043 HOSE - RADIATOR $153.46 To Order
LR095226 HOSE - RADIATOR $150.80 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR062076 HOSE - WATER $42.80 To Order
LR078764 HOSE - WATER $71.64 To Order
LR139398 HOSE - WATER $71.64 To Order
Photo Part No Description Price (each) Stock
LR062095 HOSE - WATER $203.59 To Order
Photo Part No Description Price (each) Stock
LR062080 HOSE - RADIATOR $334.25 To Order
LR081663 HOSE - RADIATOR $165.74 To Order
Photo Part No Description Price (each) Stock
LR062094 HOSE - WATER $63.20 To Order
Photo Part No Description Price (each) Stock
LR013165 TUBE - CONNECTING $30.40 To Order
Photo Part No Description Price (each) Stock
LR062085 THERMOSTAT AND HOUSING $110.77 To Order
LR085946 THERMOSTAT AND HOUSING $110.77 To Order
Photo Part No Description Price (each) Stock
LR035627 HOSE - RADIATOR $34.14 To Order
Photo Part No Description Price (each) Stock
LR035631 HOSE - RADIATOR VENTILATION $12.67 To Order
Photo Part No Description Price (each) Stock
LR062097 HOSE - WATER $46.13 To Order
Photo Part No Description Price (each) Stock
LR018829 GASKET - THERMOSTAT $3.54 To Order
Photo Part No Description Price (each) Stock
LR026206 STRAP - CABLE $0.58 To Order
View All

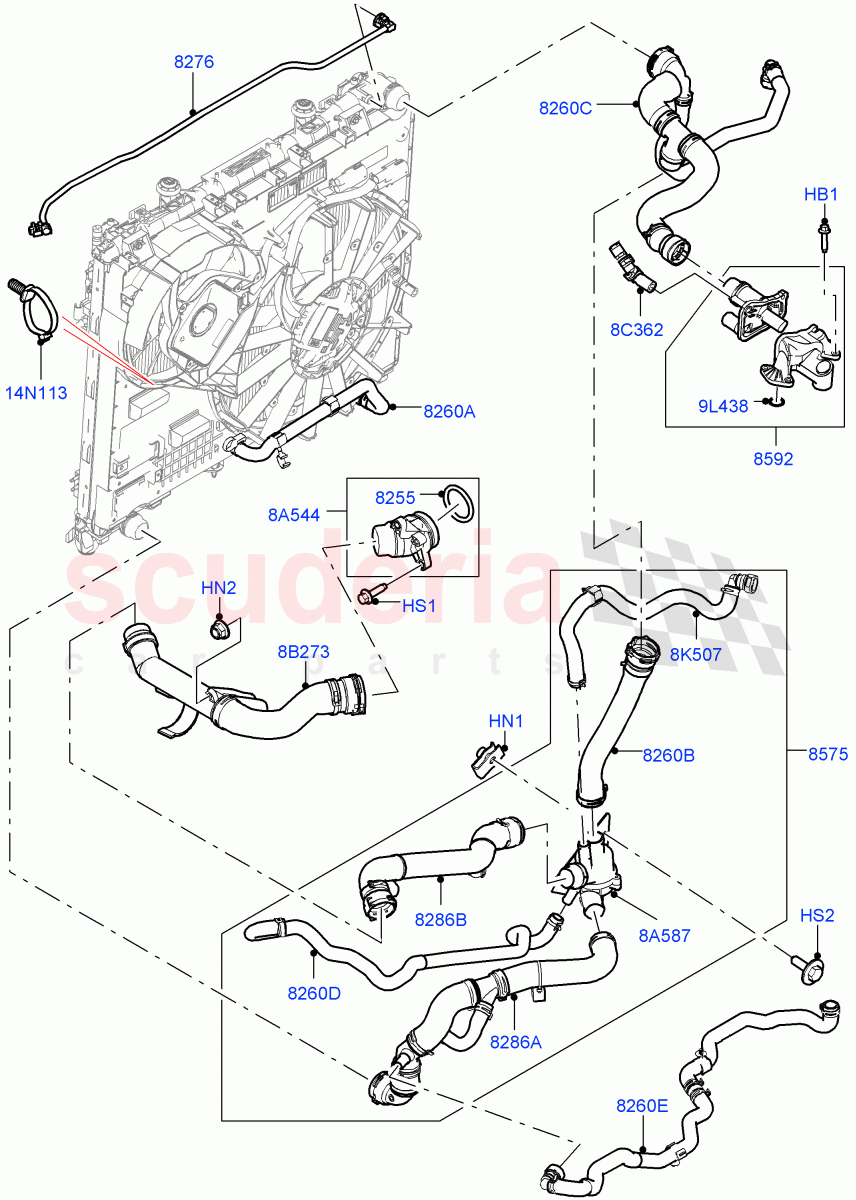

Cooling System Pipes And Hoses (Engine) (3.0 V6 D Low MT ROW, 8 Speed Auto Trans ZF 8HP70 4WD, (-) "CDN/MEX/USA", Less Crankcase Pressure Sensor, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMFA000001, (V) TOJA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4147433
BOLT
M6 X 25MM / From: FA000001 / To: HA359620
IN STOCK 		$1.58 4
HB1 LR105435
BOLT
M6 x 27MM / From: HA359621 		$1.08 4
HN1 LR000053
NUT - FLANGED
M6 / From: FA000001
IN STOCK 		$1.57 1
HN2 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: FA000001
IN STOCK 		$0.61 1
HS1 RYG500220
SCREW
Hexagonal Head, M6 X 20MM / From: FA000001
IN STOCK 		$3.31 2
HS2 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: FA000001
IN STOCK 		$0.92 1
8A544 LR013165
TUBE - CONNECTING
Bottom / From: FA000001 		$30.40 1
8A587 LR062085
THERMOSTAT AND HOUSING
From: FA000001 / To: HA356011 		$110.77 1
8A587 LR085946
THERMOSTAT AND HOUSING
From: HA356012 		$110.77 1
8B273 LR035627
HOSE - RADIATOR
Bottom, Engine Side, Thermostat To Engine / From: FA000001 		$34.14 1
8C362 LR035631
HOSE - RADIATOR VENTILATION
Cooling System Bleed / From: FA000001 		$12.67 1
8K507 LR062097
HOSE - WATER
Thermostat To Engine, Upper / From: FA000001 		$46.13 1
9L438 LR018829
GASKET - THERMOSTAT
From: FA000001 		$3.54 2
14N113 LR026206
STRAP - CABLE
From: FA000001 		$0.58 1
8255 1336551
GASKET
From: FA000001 		$3.57 1
8260A LR126012
HOSE - OIL COOLER
From Transmission Oil Cooler To Radiator / From: KA538397 / To: KA540248 		$72.06 1
8260A LR128619
HOSE - OIL COOLER
From Transmission Oil Cooler To Radiator / From: KA540249 		$72.06 1
8260A LR062074
HOSE - OIL COOLER
From Transmission Oil Cooler To Radiator / From: FA000001 / To: KA538396 		$72.06 1
8260B LR062082
HOSE - THERMOSTAT
Thermostat To Top Radiator Hose / From: FA000001 / To: FA999999 		$98.82 1
8260B LR078766
HOSE - THERMOSTAT
Thermostat To Top Radiator Hose / From: GA000001 		$145.71 1
8260C LR073371
HOSE - RADIATOR
Radiator, Top / From: FA000001 / To: FA999999 		$114.44 1
8260C LR071043
HOSE - RADIATOR
Radiator, Top / From: GA000001 / To: GA270146 		$153.46 1
8260C LR095226
HOSE - RADIATOR
Radiator, Top / From: GA270147 / To: GA999999 		$150.80 1
8260C LR081657
HOSE - RADIATOR
Radiator, Top / From: HA000001 		$110.59 1
8260D LR062076
HOSE - WATER
Expansion Reservoir To Thermostat / From: FA000001 / To: FA243277 		$42.80 1
8260D LR078764
HOSE - WATER
Expansion Reservoir To Thermostat / From: FA243278 / To: LA568891 		$71.64 1
8260D LR139398
HOSE - WATER
Expansion Reservoir To Thermostat / From: LA568892 		$71.64 1
8260E LR062095
HOSE - WATER
3.0 V6 D Low MT ROW / From: FA000001 		$203.59 1
8276 LR077702
HOSE - RADIATOR TO ENG. VENT ELBOW
Radiator Degas Line / From: FA000001 / To: FA242990 		$30.01 1
8276 LR077702
HOSE - RADIATOR TO ENG. VENT ELBOW
Radiator Degas Line / From: FA242991 		$30.01 1
8286A LR062080
HOSE - RADIATOR
Bottom, Radiator / From: FA000001 / To: GA999999 		$334.25 1
8286A LR081663
HOSE - RADIATOR
Bottom, Radiator / From: HA000001 		$165.74 1
8286B LR062094
HOSE - WATER
Bottom, Thermostat Side, Thermostat To Engine / From: FA000001 		$63.20 1
8575 LR063042
THERMOSTAT AND HOUSING
Engine To Radiator, Expansion Reservoir To Thermostat, Thermostat And Housing Assy, Top & Bottom, Transmission Cooler Line / From: FA000001 / To: FA999999 		$708.25 1
8575 LR078765
THERMOSTAT AND HOUSING
Engine To Radiator, Expansion Reservoir To Thermostat, Thermostat And Housing Assy, Top & Bottom, Transmission Cooler Line / From: GA000001 / To: GA270439 		$369.60 1
8575 LR082871
THERMOSTAT
Engine To Radiator, Expansion Reservoir To Thermostat, Thermostat And Housing Assy, Top & Bottom, Transmission Cooler Line / From: GA270440 / To: GA999999 		$438.31 1
8592 LR073372
CONNECTION - WATER OUTLET
From: FA000001
IN STOCK 		$62.71 1
