Name: Inlet Manifold (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Inlet Manifold (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

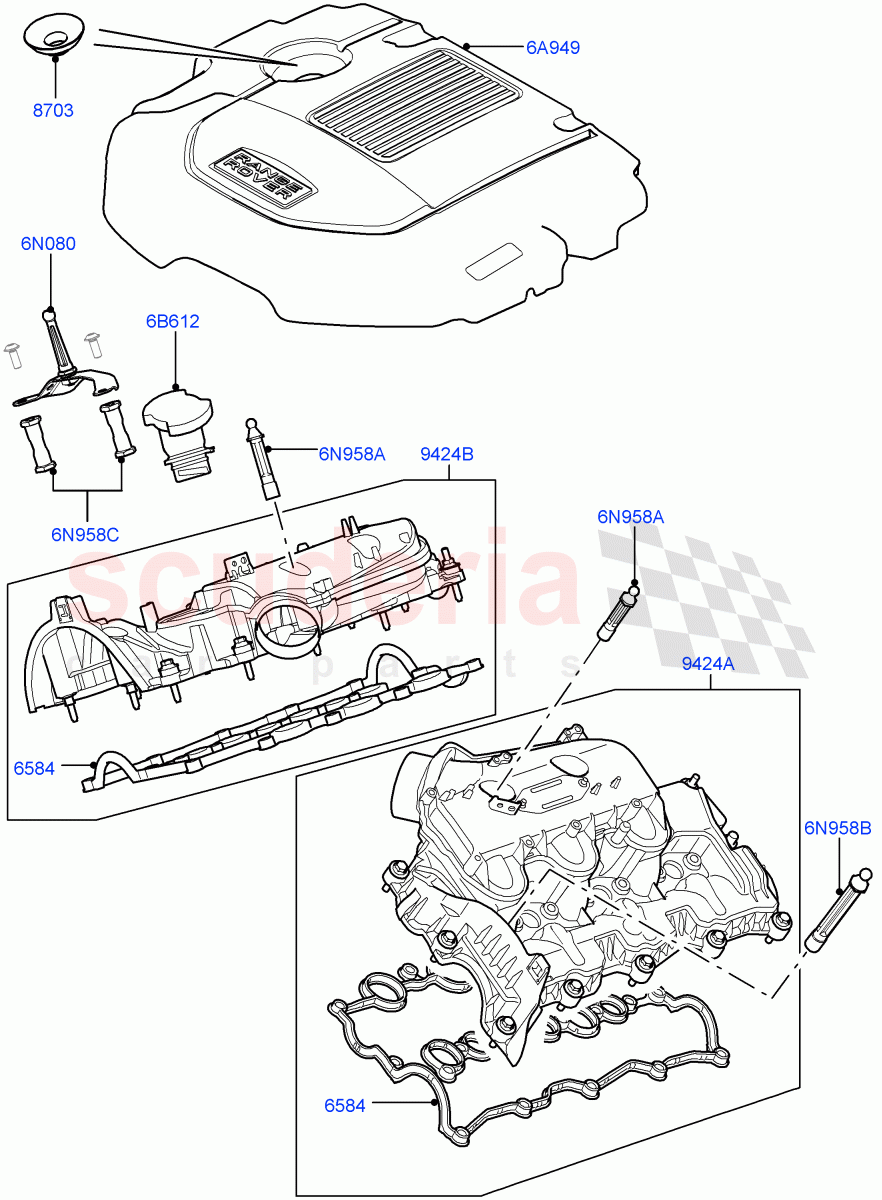

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Inlet Manifold (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR166341	GASKET - CAMSHAFT COVER	$32.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035616	OIL SPILL GAITER	$12.25	To Order
	LR082511	OIL SPILL GAITER	$11.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035613	COVER - ENGINE TOP	$267.81	To Order
	LR046747	COVER - ENGINE TOP	$135.04	To Order
	LR053779	COVER - ENGINE TOP	$320.92	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR053016	PIPE - OIL FEED	$38.63	To Order
	LR053016	PIPE - OIL FEED	$38.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122398	BRACKET - ENGINE COVER	$8.94	To Order
	LR114268	BRACKET - ENGINE COVER	$9.18	To Order
	LR122398	BRACKET - ENGINE COVER	$8.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR179200	MANIFOLD - INLET	$414.70	To Order
	LR057379	MANIFOLD - INLET	$414.70	To Order
	LR073585	MANIFOLD - INLET	$414.70	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR179201	MANIFOLD - INLET	$414.70	To Order
	LR057380	MANIFOLD - INLET	$414.70	To Order
	LR074623	MANIFOLD - INLET	$414.70	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LBG500030	STUD - ENGINE COVER	$4.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016839	STUD - BALL	$4.73	To Order

Photo	Part No	Description	Price (each)	Stock
	4611570	STUD - ENGINE COVER	$8.39	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
6A949	LR035613	COVER - ENGINE TOP	LR035613 COVER - ENGINE TOP Engine, Range Rover Logo / To: DA102993	$267.81	1
6A949	LR046747	COVER - ENGINE TOP	LR046747 COVER - ENGINE TOP Engine, Range Rover Logo / From: DA102994 / To: EA134487	$135.04	1
6A949	LR053779	COVER - ENGINE TOP	LR053779 COVER - ENGINE TOP Engine, Range Rover Logo / From: EA134488 / To: EA999999	$320.92	1
6A949	LR062496	COVER - ENGINE TOP	LR062496 COVER - ENGINE TOP Engine, Land Rover Logo / From: FA000001	$404.46	1
6B612	LR053016	PIPE - OIL FEED	LR053016 PIPE - OIL FEED To: EA143193	$38.63	1
6B612	LR053016	PIPE - OIL FEED	LR053016 PIPE - OIL FEED Jaguar And Land Rover Print, Service Only / From: EA143194	$38.63	1
6N080	LR122398	BRACKET - ENGINE COVER	LR122398 BRACKET - ENGINE COVER Engine Cover / To: JA384491	$8.94	1
6N080	LR114268	BRACKET - ENGINE COVER	LR114268 BRACKET - ENGINE COVER Engine Cover / From: JA384492 / To: KA520097	$9.18	1
6N080	LR122398	BRACKET - ENGINE COVER	LR122398 BRACKET - ENGINE COVER Engine Cover / From: KA520098	$8.94	1
6N958A	LBG500030	STUD - ENGINE COVER	LBG500030 STUD - ENGINE COVER Engine Cover, Short	$4.74	2
6N958B	LR016839	STUD - BALL	LR016839 STUD - BALL Engine Cover, LH Front	$4.73	1
6N958C	4611570	STUD - ENGINE COVER	4611570 STUD - ENGINE COVER Engine Cover, RH Front	$8.39	2
6584	LR166341	GASKET - CAMSHAFT COVER	LR166341 GASKET - CAMSHAFT COVER Camshaft Cover	$32.61	2
8703	LR035616	OIL SPILL GAITER	LR035616 OIL SPILL GAITER Oil Spill / To: GA999999	$12.25	1
8703	LR082511	OIL SPILL GAITER	LR082511 OIL SPILL GAITER Oil Spill / From: HA000001	$11.66	1
9424A	LR179200	MANIFOLD - INLET	LR179200 MANIFOLD - INLET LH / To: DA999999	$414.70	1
9424A	LR057379	MANIFOLD - INLET	LR057379 MANIFOLD - INLET LH / From: EA000001 / To: FA999999	$414.70	1
9424A	LR073585	MANIFOLD - INLET	LR073585 MANIFOLD - INLET LH, This Pipes Should Be Fitted Despite The Blanked Holes / From: GA000001 / To: GA999999	$414.70	1
9424A	LR097158	MANIFOLD - INLET	LR097158 MANIFOLD - INLET LH / From: HA000001 / To: HA339760	$414.70	1
9424A	LR179200	MANIFOLD - INLET	LR179200 MANIFOLD - INLET LH / From: HA339761 / To: MA456874	$414.70	1
9424A	LR166213	MANIFOLD - INLET	LR166213 MANIFOLD - INLET LH / From: MA456875	$414.70	1
9424B	LR179201	MANIFOLD - INLET	LR179201 MANIFOLD - INLET RH / To: DA999999	$414.70	1
9424B	LR057380	MANIFOLD - INLET	LR057380 MANIFOLD - INLET RH / From: EA000001 / To: FA999999	$414.70	1
9424B	LR074623	MANIFOLD - INLET	LR074623 MANIFOLD - INLET RH, This Pipes Should Be Fitted Despite The Blanked Holes / From: GA000001 / To: GA999999	$414.70	1
9424B	LR097157	MANIFOLD - INLET	LR097157 MANIFOLD - INLET RH / From: HA000001 / To: HA339760	$414.70	1
9424B	LR105957	INLET MANIFOLD WITH INTERCOOLER	LR105957 INLET MANIFOLD WITH INTERCOOLER RH / From: HA339761 / To: JA394673	$414.70	1
9424B	LR179201	MANIFOLD - INLET	LR179201 MANIFOLD - INLET RH / From: JA394674	$414.70	1
