Exhaust Manifold (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) Fromfa000001)

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Exhaust Manifold (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LYG500210 BOLT - HEX.HEAD $13.64 To Order
Photo Part No Description Price (each) Stock
1316028 BOLT $1.24 To Order
Photo Part No Description Price (each) Stock
LYG500220 BOLT $1.34 To Order
Photo Part No Description Price (each) Stock
FS108166 BOLT $0.63 IN STOCK
Photo Part No Description Price (each) Stock
1003736 SPACER $4.09 To Order
Photo Part No Description Price (each) Stock
LR106277 NUT - HEX. - FLANGED $2.08 IN STOCK
LR106277 NUT - HEX. - FLANGED $2.08 IN STOCK
Photo Part No Description Price (each) Stock
LR122427 BOLT $4.52 IN STOCK
LR122427 BOLT $4.52 IN STOCK
LR122427 BOLT $4.52 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1357627 STUD $2.42 IN STOCK
Photo Part No Description Price (each) Stock
LR113358 STUD $4.25 To Order
LR113358 STUD $4.25 To Order
Photo Part No Description Price (each) Stock
1336543 GASKET - EXHAUST MANIFOLD $18.96 To Order
Photo Part No Description Price (each) Stock
LR072304 GASKET - EXHAUST MANIFOLD $14.33 To Order
LR072304 GASKET - EXHAUST MANIFOLD $14.33 To Order
Photo Part No Description Price (each) Stock
LR038751 PIPE - EXHAUST CROSSOVER $658.13 To Order
Photo Part No Description Price (each) Stock
LR066023 MANIFOLD - EXHAUST $352.48 To Order
Photo Part No Description Price (each) Stock
LR063059 MANIFOLD - EXHAUST $427.81 To Order
Photo Part No Description Price (each) Stock
LR029736 BRACKET - EXHAUST PIPE MOUNTING $22.72 To Order
LR049170 BRACKET - EXHAUST PIPE MOUNTING $15.17 To Order
LR080309 BRACKET - EXHAUST PIPE MOUNTING $23.56 To Order
Photo Part No Description Price (each) Stock
LR029737 BRACKET - EXHAUST PIPE MOUNTING $22.92 To Order
LR049168 BRACKET - EXHAUST PIPE MOUNTING $26.01 To Order
Photo Part No Description Price (each) Stock
WCU500130 BRACKET - EXHAUST PIPE MOUNTING $84.59 To Order
Photo Part No Description Price (each) Stock
LR031387 HEAT SHIELD - EXHAUST MANIFOLD $64.56 To Order
Photo Part No Description Price (each) Stock
LR061963 HEAT SHIELD - EXHAUST MANIFOLD $154.94 To Order
Photo Part No Description Price (each) Stock
LR069682 HEAT SHIELD - EXHAUST MANIFOLD $213.70 To Order
Photo Part No Description Price (each) Stock
LR038672 HEAT SHIELD - EXHAUST MANIFOLD $19.19 To Order
View All

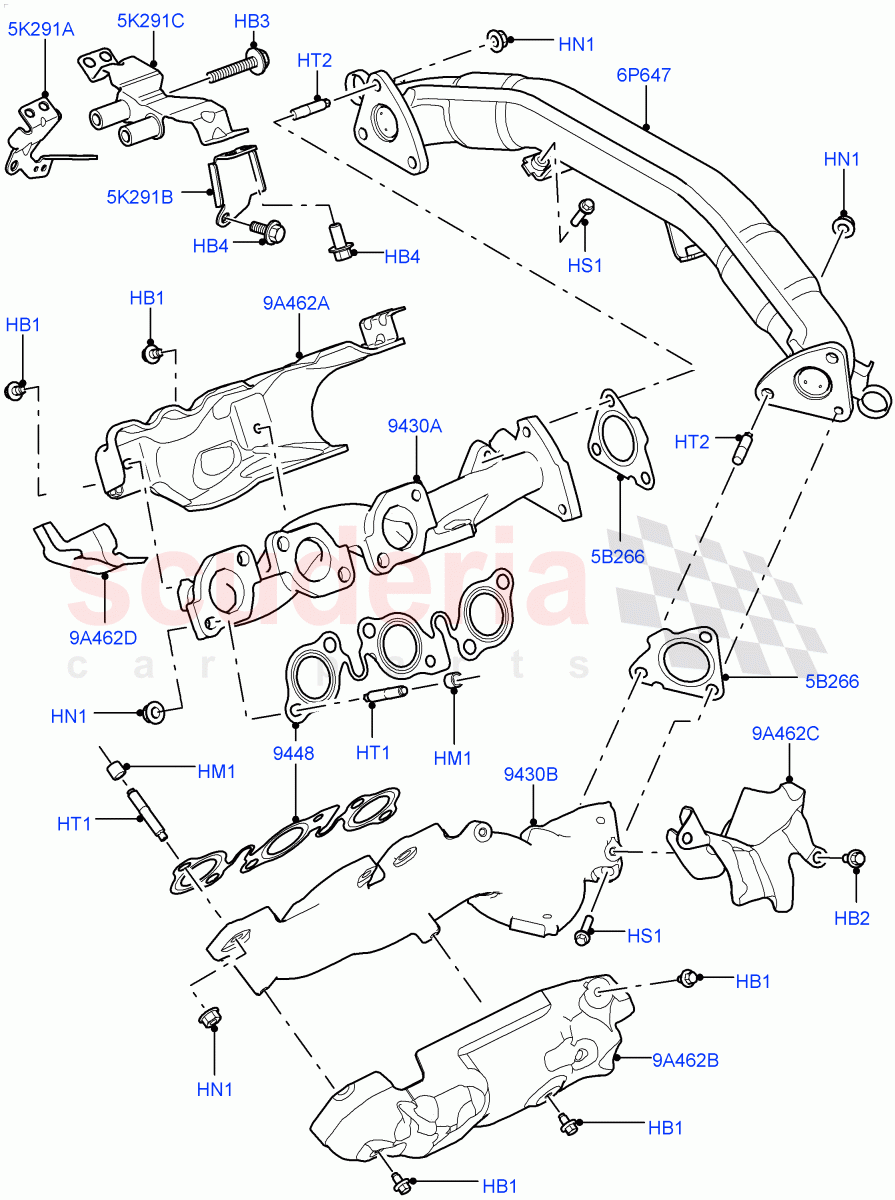

Exhaust Manifold (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LYG500210
BOLT - HEX.HEAD
Heat Shield, M6 X 8MM 		$13.64 4
HB2 1316028
BOLT
Heat Shield, M6 X 16MM 		$1.24 1
HB3 LYG500220
BOLT
Hexagonal Head, M8 X 56MM 		$1.34 2
HB4 FS108166
BOLT
Hexagonal Head, M8 X 16MM
IN STOCK 		$0.63 6
HM1 1003736
SPACER
8.5 x 10MM, Spacer For Exhaust Manifold Bolt 		$4.09 2
HN1 LR106277
NUT - HEX. - FLANGED
M8 / To: JA393236
IN STOCK 		$2.08 18
HN1 LR106277
NUT - HEX. - FLANGED
M8 / From: JA393237
IN STOCK 		$2.08 18
HS1 LR122427
BOLT
For Exhaust Crossover Pipe, Hi temp, M8 X 25MM / To: KA521533
IN STOCK 		$4.52 4
HS1 LR122427
BOLT
From Crossover Tube, M8 X 25MM / To: KA521533
IN STOCK 		$4.52 1
HS1 LR122427
BOLT
For Exhaust Crossover Pipe, Hi temp, M8 X 25MM / From: KA521534
IN STOCK 		$4.52 4
HS1 LR122427
BOLT
From Crossover Tube, M8 X 25MM / From: KA521534
IN STOCK 		$4.52 1
HT1 1357627
STUD
M8 X 17 + M8 X 19, Manifold To Cylinder Head
IN STOCK 		$2.42 12
HT2 LR113358
STUD
For Exhaust Crossover Pipe, M8 X 16MM, M8 x 8MM / To: GA999999 		$4.25 5
HT2 LR113358
STUD
For Exhaust Crossover Pipe, M8 X 16MM, M8 x 8MM / From: HA000001 		$4.25 5
5B266 LR072304
GASKET - EXHAUST MANIFOLD
Cross Over Pipe To Exhaust Manifold / To: FA999999 		$14.33 2
5B266 LR072304
GASKET - EXHAUST MANIFOLD
Cross Over Pipe To Exhaust Manifold / From: GA000001 		$14.33 2
5K291A LR029736
BRACKET - EXHAUST PIPE MOUNTING
8 Speed Auto Trans ZF 8HP70 4WD / RH / To: FA999999 		$22.72 1
5K291A LR049170
BRACKET - EXHAUST PIPE MOUNTING
8 Speed Auto Trans ZF 8HP70 HEV 4WD / RH / From: GA000001 		$15.17 1
5K291A LR080309
BRACKET - EXHAUST PIPE MOUNTING
8 Speed Auto Trans ZF 8HP70 4WD / RH / From: GA000001 		$23.56 1
5K291B LR029737
BRACKET - EXHAUST PIPE MOUNTING
8 Speed Auto Trans ZF 8HP70 4WD / LH 		$22.92 1
5K291B LR049168
BRACKET - EXHAUST PIPE MOUNTING
8 Speed Auto Trans ZF 8HP70 HEV 4WD / LH / From: GA000001 		$26.01 1
5K291C WCU500130
BRACKET - EXHAUST PIPE MOUNTING
Centre, For Exhaust Crossover Pipe 		$84.59 1
6P647 LR038751
PIPE - EXHAUST CROSSOVER
Pipe - Exhaust Crossover 		$658.13 1
9A462A LR031387
HEAT SHIELD - EXHAUST MANIFOLD
RH, Exhaust Manifold 		$64.56 1
9A462B LR061963
HEAT SHIELD - EXHAUST MANIFOLD
LH, Exhaust Manifold 		$154.94 1
9A462C LR069682
HEAT SHIELD - EXHAUST MANIFOLD
LH, Cross Over Pipe To Exhaust Manifold 		$213.70 1
9A462D LR038672
HEAT SHIELD - EXHAUST MANIFOLD
Exhaust Manifold, RH Front 		$19.19 1
9430A LR066023
MANIFOLD - EXHAUST
RH 		$352.48 1
9430B LR063059
MANIFOLD - EXHAUST
LH 		$427.81 1
9448 1336543
GASKET - EXHAUST MANIFOLD
Exhaust Manifold 		$18.96 2
