Exhaust Manifold (Solihull Plant Build) (3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 D Low MT ROW, 3.0L 24V DOHC V6 TC Diesel, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Exhaust Manifold (Solihull Plant Build) (3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V V6 Turbo...

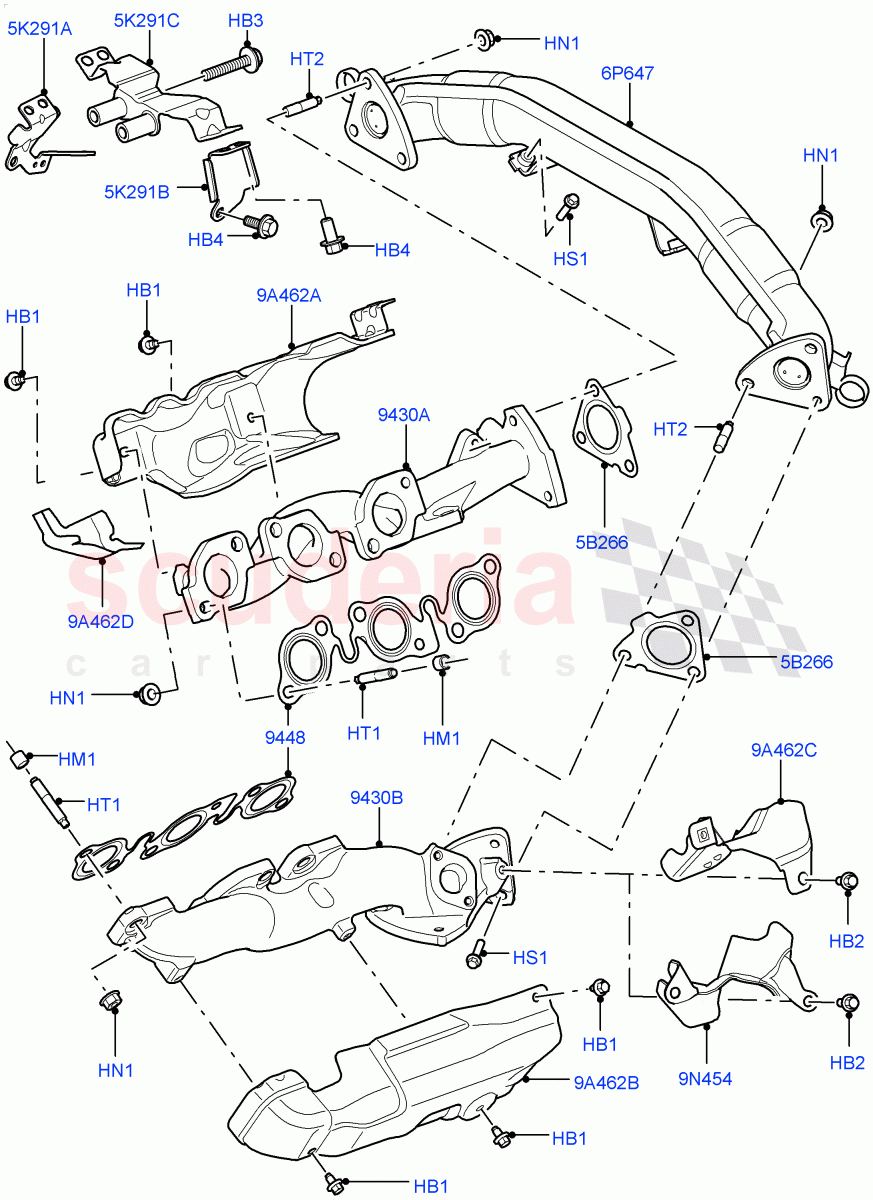

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LYG500210	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1316028	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LYG500220	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1003736	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106277	NUT - HEX. - FLANGED	Enquire	To Order
	LR106277	NUT - HEX. - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122427	BOLT	Enquire	To Order
	LR122427	BOLT	Enquire	To Order
	LR122427	BOLT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1357627	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113358	STUD	Enquire	To Order
	LR113358	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1336543	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072304	GASKET - EXHAUST MANIFOLD	Enquire	To Order
	LR072304	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038751	PIPE - EXHAUST CROSSOVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013132	MANIFOLD - EXHAUST	Enquire	To Order
	LR052064	MANIFOLD - EXHAUST	Enquire	To Order
	LR062603	MANIFOLD - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013133	MANIFOLD - EXHAUST	Enquire	To Order
	LR061960	MANIFOLD - EXHAUST	Enquire	To Order
	LR066361	MANIFOLD - EXHAUST	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061965	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order
	LR061965	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029736	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR049170	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR049170	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR029737	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR049168	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR049168	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	WCU500130	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031387	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013137	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order
	LR061963	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013138	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order
	LR069682	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038672	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LYG500210	BOLT - HEX.HEAD	LYG500210 BOLT - HEX.HEAD Heat Shield, M6 X 8MM	-	4	Enquire
HB2	1316028	BOLT	1316028 BOLT Heat Shield, M6 X 16MM	-	1	Enquire
HB3	LYG500220	BOLT	LYG500220 BOLT Hexagonal Head, M8 X 56MM	-	2	Enquire
HB4	FS108166	BOLT	FS108166 BOLT Hexagonal Head, M8 X 16MM	-	6	Enquire
HM1	1003736	SPACER	1003736 SPACER 8.5 x 10MM, Spacer For Exhaust Manifold Bolt	-	2	Enquire
HN1	LR106277	NUT - HEX. - FLANGED	LR106277 NUT - HEX. - FLANGED M8 / To: JA393236	-	18	Enquire
HN1	LR106277	NUT - HEX. - FLANGED	LR106277 NUT - HEX. - FLANGED M8 / From: JA393237	-	18	Enquire
HS1	LR122427	BOLT	LR122427 BOLT For Exhaust Crossover Pipe, Hi temp, M8 X 25MM / To: KA521533	-	4	Enquire
HS1	LR122427	BOLT	LR122427 BOLT From Crossover Tube, M8 X 25MM / To: KA521533	-	1	Enquire
HS1	LR122427	BOLT	LR122427 BOLT For Exhaust Crossover Pipe, Hi temp, M8 X 25MM / From: KA521534	-	4	Enquire
HS1	LR122427	BOLT	LR122427 BOLT From Crossover Tube, M8 X 25MM / From: KA521534	-	1	Enquire
HT1	1357627	STUD	1357627 STUD M8 X 17 + M8 X 19, Manifold To Cylinder Head	-	12	Enquire
HT2	LR113358	STUD	LR113358 STUD For Exhaust Crossover Pipe, M8 X 16MM, M8 x 8MM / To: GA999999	-	5	Enquire
HT2	LR113358	STUD	LR113358 STUD For Exhaust Crossover Pipe, M8 X 16MM, M8 x 8MM / From: HA000001	-	5	Enquire
5B266	LR072304	GASKET - EXHAUST MANIFOLD	LR072304 GASKET - EXHAUST MANIFOLD Cross Over Pipe To Exhaust Manifold / To: FA999999	-	2	Enquire
5B266	LR072304	GASKET - EXHAUST MANIFOLD	LR072304 GASKET - EXHAUST MANIFOLD Cross Over Pipe To Exhaust Manifold / From: GA000001	-	2	Enquire
5K291A	LR029736	BRACKET - EXHAUST PIPE MOUNTING	LR029736 BRACKET - EXHAUST PIPE MOUNTING 3.0 V6 D Gen2 Mono Turbo / RH / To: GA999999	-	1	Enquire
5K291A	LR049170	BRACKET - EXHAUST PIPE MOUNTING	LR049170 BRACKET - EXHAUST PIPE MOUNTING 3.0 V6 Diesel Electric Hybrid Eng / RH / From: EA000001	-	1	Enquire
5K291A	LR049170	BRACKET - EXHAUST PIPE MOUNTING	LR049170 BRACKET - EXHAUST PIPE MOUNTING 3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / RH / From: GA000001	-	1	Enquire
5K291A	LR080309	BRACKET - EXHAUST PIPE MOUNTING	LR080309 BRACKET - EXHAUST PIPE MOUNTING 3.0 V6 D Gen2 Mono Turbo / RH / From: HA000001	-	1	Enquire
5K291B	LR029737	BRACKET - EXHAUST PIPE MOUNTING	LR029737 BRACKET - EXHAUST PIPE MOUNTING 3.0 V6 D Gen2 Mono Turbo / LH / To: GA999999	-	1	Enquire
5K291B	LR049168	BRACKET - EXHAUST PIPE MOUNTING	LR049168 BRACKET - EXHAUST PIPE MOUNTING 3.0 V6 Diesel Electric Hybrid Eng / LH / From: EA000001	-	1	Enquire
5K291B	LR049168	BRACKET - EXHAUST PIPE MOUNTING	LR049168 BRACKET - EXHAUST PIPE MOUNTING 8 Speed Auto Trans ZF 8HP70 HEV 4WD / LH / From: GA000001	-	1	Enquire
5K291B	LR029737	BRACKET - EXHAUST PIPE MOUNTING	LR029737 BRACKET - EXHAUST PIPE MOUNTING 3.0 V6 D Gen2 Mono Turbo / LH / From: HA000001	-	1	Enquire
5K291C	WCU500130	BRACKET - EXHAUST PIPE MOUNTING	WCU500130 BRACKET - EXHAUST PIPE MOUNTING Centre, For Exhaust Crossover Pipe	-	1	Enquire
6P647	LR038751	PIPE - EXHAUST CROSSOVER	LR038751 PIPE - EXHAUST CROSSOVER Pipe - Exhaust Crossover	-	1	Enquire
9A462A	LR031387	HEAT SHIELD - EXHAUST MANIFOLD	LR031387 HEAT SHIELD - EXHAUST MANIFOLD RH, Exhaust Manifold	-	1	Enquire
9A462B	LR013137	HEAT SHIELD - EXHAUST MANIFOLD	LR013137 HEAT SHIELD - EXHAUST MANIFOLD 3.0L 24V DOHC V6 TC Diesel / LH, Exhaust Manifold	-	1	Enquire
9A462B	LR061963	HEAT SHIELD - EXHAUST MANIFOLD	LR061963 HEAT SHIELD - EXHAUST MANIFOLD 3.0 V6 D Gen2 Mono Turbo / LH, Exhaust Manifold	-	1	Enquire
9A462C	LR013138	HEAT SHIELD - EXHAUST MANIFOLD	LR013138 HEAT SHIELD - EXHAUST MANIFOLD 3.0L 24V DOHC V6 TC Diesel / LH, Cross Over Pipe To Exhaust Manifold	-	1	Enquire
9A462C	LR069682	HEAT SHIELD - EXHAUST MANIFOLD	LR069682 HEAT SHIELD - EXHAUST MANIFOLD 3.0 V6 D Gen2 Mono Turbo / LH, Cross Over Pipe To Exhaust Manifold / From: HA000001	-	1	Enquire
9A462D	LR038672	HEAT SHIELD - EXHAUST MANIFOLD	LR038672 HEAT SHIELD - EXHAUST MANIFOLD Exhaust Manifold, RH Front	-	1	Enquire
9N454	LR061965	HEAT SHIELD - EXHAUST MANIFOLD	LR061965 HEAT SHIELD - EXHAUST MANIFOLD 3.0 V6 D Gen2 Mono Turbo / LH, Cross Over Pipe To Exhaust Manifold / To: GA999999	-	1	Enquire
9N454	LR061965	HEAT SHIELD - EXHAUST MANIFOLD	LR061965 HEAT SHIELD - EXHAUST MANIFOLD 3.0 V6 D Low MT ROW / LH, Cross Over Pipe To Exhaust Manifold / From: HA000001	-	1	Enquire
9430A	LR013132	MANIFOLD - EXHAUST	LR013132 MANIFOLD - EXHAUST 3.0L 24V V6 Turbo Diesel Std Flow / RH / To: EA130489	-	1	Enquire
9430A	LR052064	MANIFOLD - EXHAUST	LR052064 MANIFOLD - EXHAUST 3.0L 24V V6 Turbo Diesel Std Flow / RH / From: EA130490	-	1	Enquire
9430A	LR062603	MANIFOLD - EXHAUST	LR062603 MANIFOLD - EXHAUST 3.0 V6 D Gen2 Mono Turbo / RH	-	1	Enquire
9430B	LR013133	MANIFOLD - EXHAUST	LR013133 MANIFOLD - EXHAUST 3.0L 24V DOHC V6 TC Diesel / LH / To: FA999999	-	1	Enquire
9430B	LR061960	MANIFOLD - EXHAUST	LR061960 MANIFOLD - EXHAUST 3.0 V6 D Gen2 Mono Turbo / LH	-	1	Enquire
9430B	LR066361	MANIFOLD - EXHAUST	LR066361 MANIFOLD - EXHAUST 3.0L 24V V6 Turbo Diesel Std Flow / LH / From: GA000001	-	1	Enquire
9430B	LR061961	MANIFOLD - EXHAUST	LR061961 MANIFOLD - EXHAUST 3.0 V6 D Low MT ROW / LH	-	1	Enquire
9448	1336543	GASKET - EXHAUST MANIFOLD	1336543 GASKET - EXHAUST MANIFOLD Exhaust Manifold	-	2	Enquire
