Fuel Tank & Related Parts (3.0L DOHC GDI SC V6 PETROL, Pet Tank With Leak Det - Lrg Filter, Petrol Tank With Leak Detection) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Fuel Tank & Related Parts (3.0L DOHC GDI SC V6 PETROL, Pet Tank With Leak Det - Lrg Filter, Petrol...

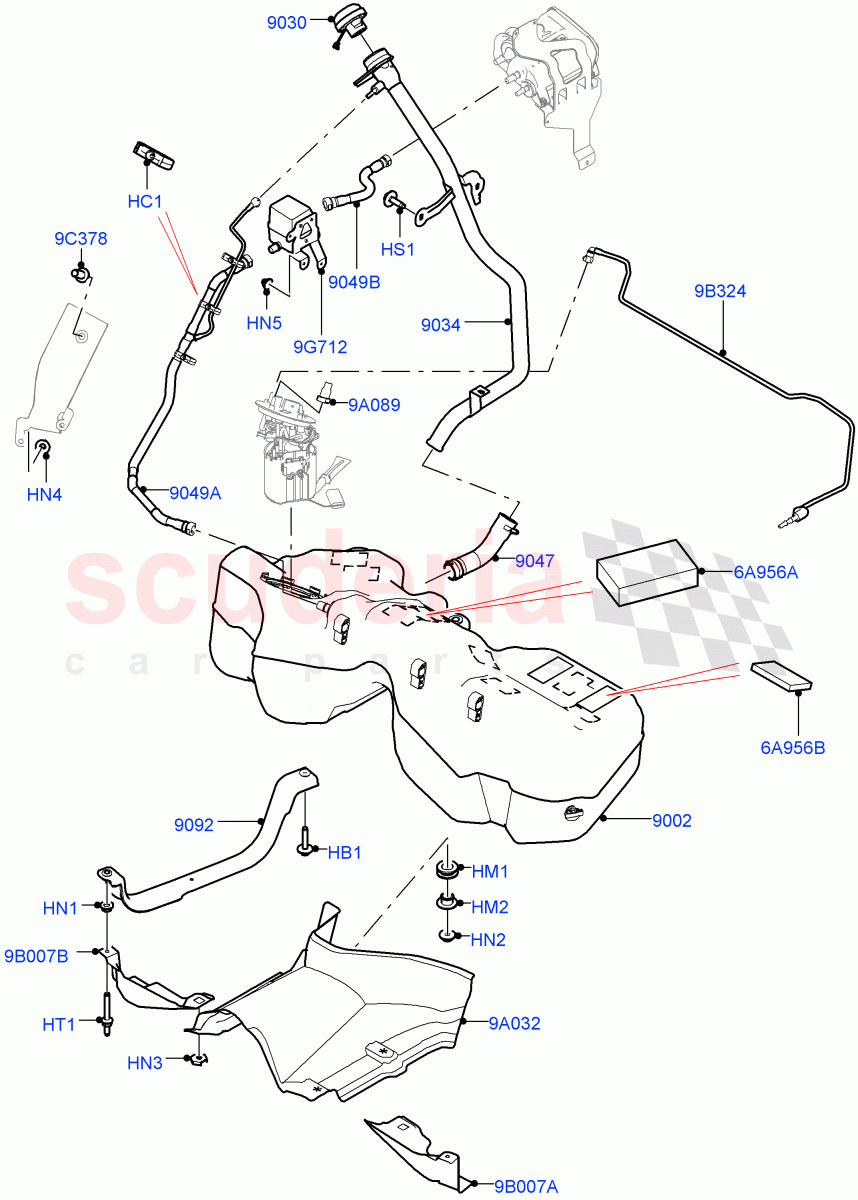

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR078393	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYD000020	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYF000020	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500350	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000893	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038544	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500550	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117162	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112852	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202123475	CAP - FUEL TANK FILLER	Enquire	To Order
	LR138720	CAP - FUEL TANK FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093112	PIPE - FUEL FILLER	Enquire	To Order
	LR141136	PIPE - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093121	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112145	STRAP - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092980	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092981	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112146	SHIELD - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021822	CAP - FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092962	TUBE - FUEL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093968	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106366	SEPARATOR - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125431	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133219	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112856	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112855	SHIELD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR078393	BOLT AND WASHER - HEX.HEAD	LR078393 BOLT AND WASHER - HEX.HEAD M8 x 40MM, To Body / From: KA000001	-	2	Enquire
HC1	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE Vapour Line / From: KA000001	-	3	Enquire
HM1	WYD000020	GROMMET	WYD000020 GROMMET From: KA000001	-	1	Enquire
HM2	WYF000020	SPACER	WYF000020 SPACER From: KA000001	-	1	Enquire
HN1	RYH500350	NUT - SPECIAL	RYH500350 NUT - SPECIAL M8 / From: KA000001	-	2	Enquire
HN2	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer / From: KA000001	-	1	Enquire
HN3	LR000893	NUT	LR000893 NUT "Spring", Heat Shield / From: KA000001	-	4	Enquire
HN4	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: KA000001	-	2	Enquire
HN5	LR038544	NUT	LR038544 NUT 6 X 1.6MM / From: KA000001	-	3	Enquire
HS1	FYP500550	SCREW	FYP500550 SCREW Hexagonal Head, M6 X 20MM / From: KA000001	-	2	Enquire
HT1	LR117162	STUD	LR117162 STUD To Body / From: KA000001	-	2	Enquire
6A956A	LR125431	FOAM PAD - ENERGY ABSORBING	LR125431 FOAM PAD - ENERGY ABSORBING 80mm x 50mm x 20mm / From: KA000001	-	4	Enquire
6A956B	LR133219	FOAM PAD - ENERGY ABSORBING	LR133219 FOAM PAD - ENERGY ABSORBING 80mm x 50mm x 35mm / From: KA000001	-	6	Enquire
9A032	LR112146	SHIELD - FUEL TANK	LR112146 SHIELD - FUEL TANK From: KA000001	-	1	Enquire
9A089	LR021822	CAP - FILLER	LR021822 CAP - FILLER Pet Tank With Leak Det - Lrg Filter / From: KA000001	-	1	Enquire
9B007A	LR112856	SHIELD	LR112856 SHIELD LH / From: KA000001	-	1	Enquire
9B007B	LR112855	SHIELD	LR112855 SHIELD RH / From: KA000001	-	1	Enquire
9B324	LR092962	TUBE - FUEL RETURN	LR092962 TUBE - FUEL RETURN From: KA000001	-	1	Enquire
9C378	LR093968	RETAINER	LR093968 RETAINER Bracket, Vapour Line / From: KA000001	-	1	Enquire
9G712	LR106366	SEPARATOR - FUEL VAPOUR	LR106366 SEPARATOR - FUEL VAPOUR From: KA000001	-	1	Enquire
9002	LR112852	TANK - FUEL	LR112852 TANK - FUEL Tank Includes Second Sender / From: KA000001	-	1	Enquire
9030	202123475	CAP - FUEL TANK FILLER	202123475 CAP - FUEL TANK FILLER From: KA000001 / To: LA291188	-	1	Enquire
9030	LR138720	CAP - FUEL TANK FILLER	LR138720 CAP - FUEL TANK FILLER From: LA291189	-	1	Enquire
9034	LR093112	PIPE - FUEL FILLER	LR093112 PIPE - FUEL FILLER From: KA000001 / To: LA999999	-	1	Enquire
9034	LR141136	PIPE - FUEL FILLER	LR141136 PIPE - FUEL FILLER From: MA000001	-	1	Enquire
9047	LR093121	HOSE - FILLER PIPE	LR093121 HOSE - FILLER PIPE Lower / From: KA000001	-	1	Enquire
9049A	LR092980	TUBE - FUEL VAPOUR	LR092980 TUBE - FUEL VAPOUR From: KA000001	-	1	Enquire
9049B	LR092981	TUBE - FUEL VAPOUR	LR092981 TUBE - FUEL VAPOUR From: KA000001	-	1	Enquire
9092	LR112145	STRAP - FUEL TANK	LR112145 STRAP - FUEL TANK RH/LH / From: KA000001	-	2	Enquire
